Connecting the AV receiver
—Continued
Audio Connection Formats
Audio equipment can be connected to the AV
receiver by using any of the following audio con-
nection formats: analog, optical, coaxial, analog
multichannel, or HDMI.
When choosing a connection format, bear in
mind that the AV receiver does not convert digital
input signals for analog line outputs and vice
versa. For example, audio signals connected to
an optical or coaxial digital input are not output
by the analog TV/TAPE OUT.
If signals are present at more than one input, the inputs will be selected automatically in the following order of priority:
HDMI, digital, analog.
* 1
DVD/BD player, etc.
AV receiver
TV, projector, etc.

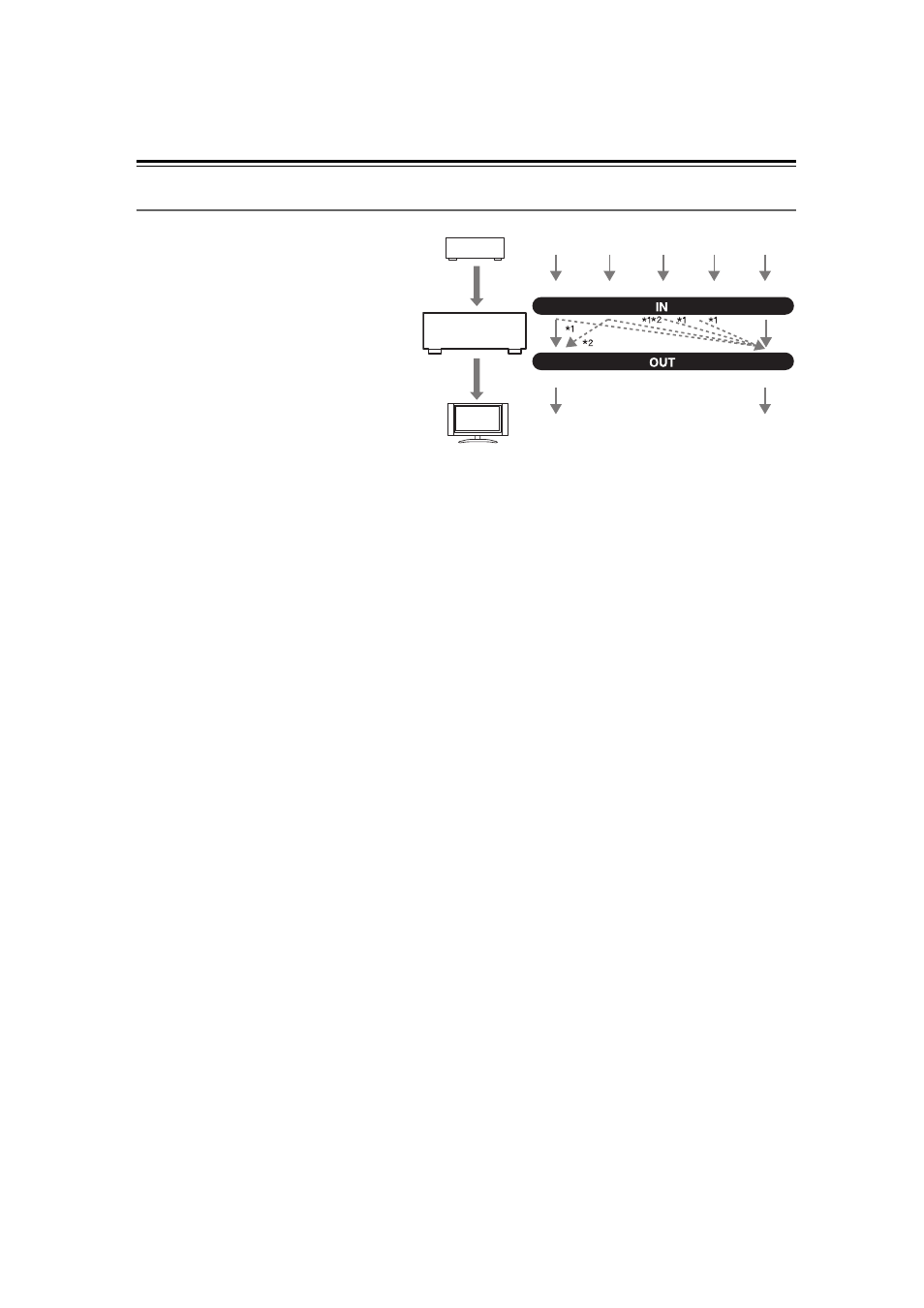

Audio Signal Flow Chart
HDMI Analog
*1 Depends on the “Audio TV Out” setting (see
page 113).
*2 Only the front L/R channels are output.
Optical Coaxial Multichannel Analog HDMI
