27
SN 29343138 TX-L5.E
DISPLAY VIDEO 2 VIDEO 1 DVD/CD
DIMMER
HD TUNER MD/TAPE
DVD MD
STANDBY ON
MENU TOP MENU
SETUP
SURR MODE STEREO SP SETUP SW MODE
RETURN
PR
ESET
PLAY
SLEEP
INPUT SELECTOR
DVD MD
Control
ENTER
DISPLAY VIDEO 2 VIDEO 1 DVD/CD
DIMMER
HD TUNER MD/TAPE
DVD MD
STANDBY ON
MENU TOP MENU
SETUP
SURR MODE STEREO SP SETUP SW MODE
RETURN
PR
ESET
PLAY
SLEEP
INPUT SELECTOR
DVD MD
Control
ENTER

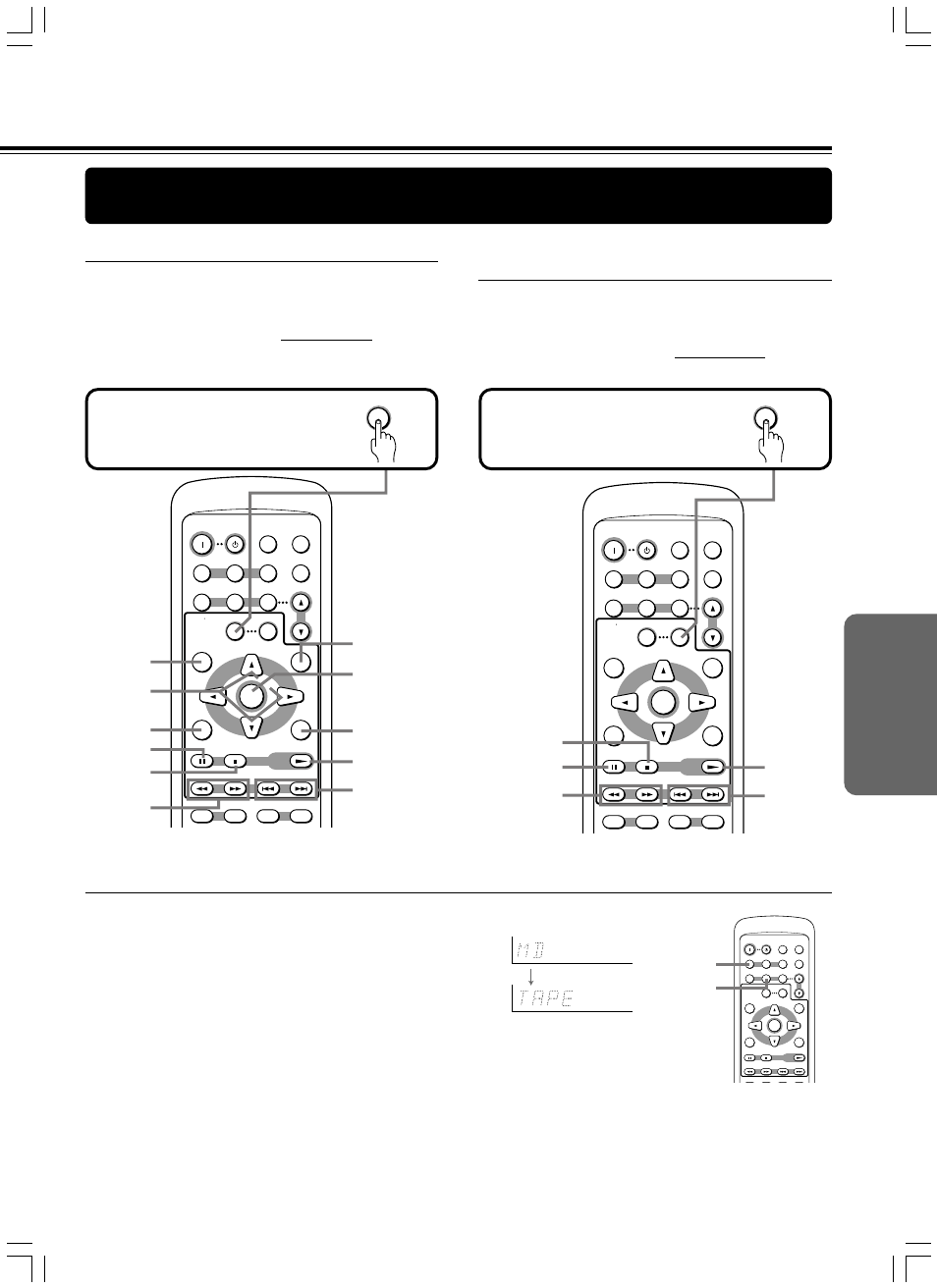

Operating the DVD player/CD player/MD recorder/Cassette Tape Deck With the
Supplied Remote Controller
■ To operate the Onkyo DVD player/CD player
First, connect the DVD player or CD player to the AV Receiver
with the z cable (see page 18).
When the CD player is connected to the DVD/CD jacks,
switch the source (see below).
Point the remote controller toward the AV Receiver when you
want to operate this equipment.
Press DVD first.
■ To operate the Onkyo MD recorder/cassette
tape deck
First, connect the MD recorder or cassette tape deck to the AV
Receiver with the z cable (see page 18).
When the cassette tape deck is connected to the MD/TAPE
jacks, switch the source (see below).
Point the remote controller toward the AV Receiver when you
want to operate this equipment.
Press MD first.
Play
Play
Play
Down/Up
–– Fast Reverse/
Fast Forward
Rewind/
Fast Forward
Stop/Cancel
Stop
Pause
Reverse play
Upper: MD recorder
Lower: Cassette tape deck
Down/Up
Top menu
(DVD only)
Enter
(DVD only)
Menu
(DVD only)
Setup
(DVD only)
5/∞/2/3
(DVD only)
Return
(DVD only)
Pause
Stop
DVD MD
■ Switch the source from MD to TAPE/Switch the source from DVD to CD
You can set the AV receiver to show “TAPE” when the MD/
TAPE source is selected by pressing MD/TAPE on the remote
controller or turning the INPUT dial on the unit. In the same
way, you can set the AV receiver to show “CD” when the DVD/
CD source is selected.
This setting is needed to make the z system control
effective among the Onkyo cassette tape deck, MD recorder,
DVD player and CD player.
To switch the source from MD to TAPE (or from DVD to
CD)
1 Press MD/TAPE (or DVD/CD) to select the input source.
2 Press and hold MD/TAPE (or DVD/CD) on the remote
controller until the display changes (for about 2 seconds).
To restore the display
Press and hold MD/TAPE (or DVD/CD) on the remote
controller until the display changes (for about 2 seconds).
Fast Reverse/
Fast Forward
DISPLAY VIDEO 2 VIDEO 1 DVD/CD
DIMMER
HD TUNER MD/TAPE
DVD MD
STANDBY ON
MENU TOP MENU
SETUP
SURR MODE STEREO SP SETUP SW MODE
RETURN
PR ESET
PLAY
SLEEP
INPUT SELECTOR
DVD MD
Control
ENTER
DVD/CD
MD/TAPE
ex
