53 EN
For information on using the menus, see “Setup menu” (p. 6).

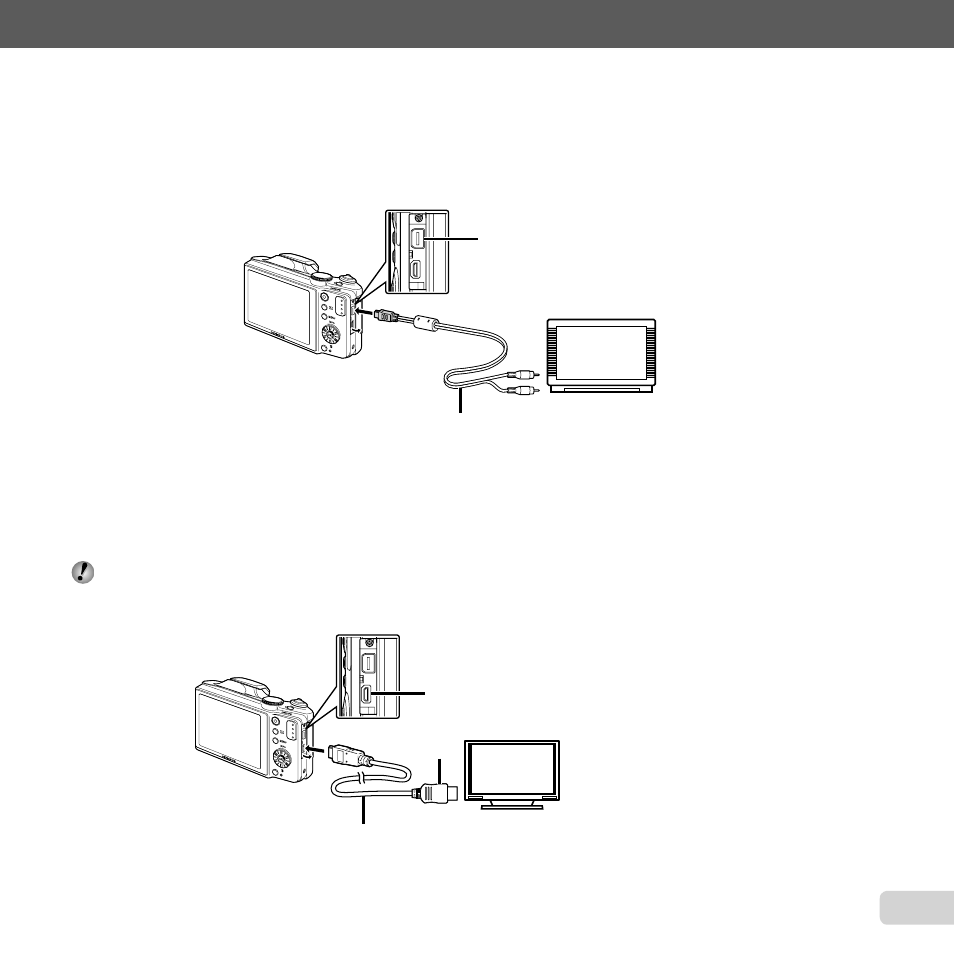

To play back camera images on a TV To play back camera images on a TV
Connection via AV cable
1 Use the camera to select the same video signal system as the one of connected TV ([NTSC]/[PAL]).
2 Connect the TV and camera.
Connect to the TV video input jack
(yellow) and audio input jack (white).
Multi-connector
AV cable (supplied)
Connection via HDMI cable
1 On the camera, select the digital signal format that will be connected ([480p/576p]/[720p]/[1080i]).
2 Connect the TV and camera.
3 Turn on the TV, and change “INPUT” to “VIDEO (an input jack connected to the camera)”.
4 Turn on the camera, and use HI to select the image for playback.
When the camera is connected to the computer by the USB cable, do not connect the HDMI cable to the camera.
Connect to the HDMI
connector on the TV.
HDMI micro connector
(type D)
HDMI cable (sold separately: CB-HD1)
Type A
●
●
