Page 28
Operating the Pump
5
5-5

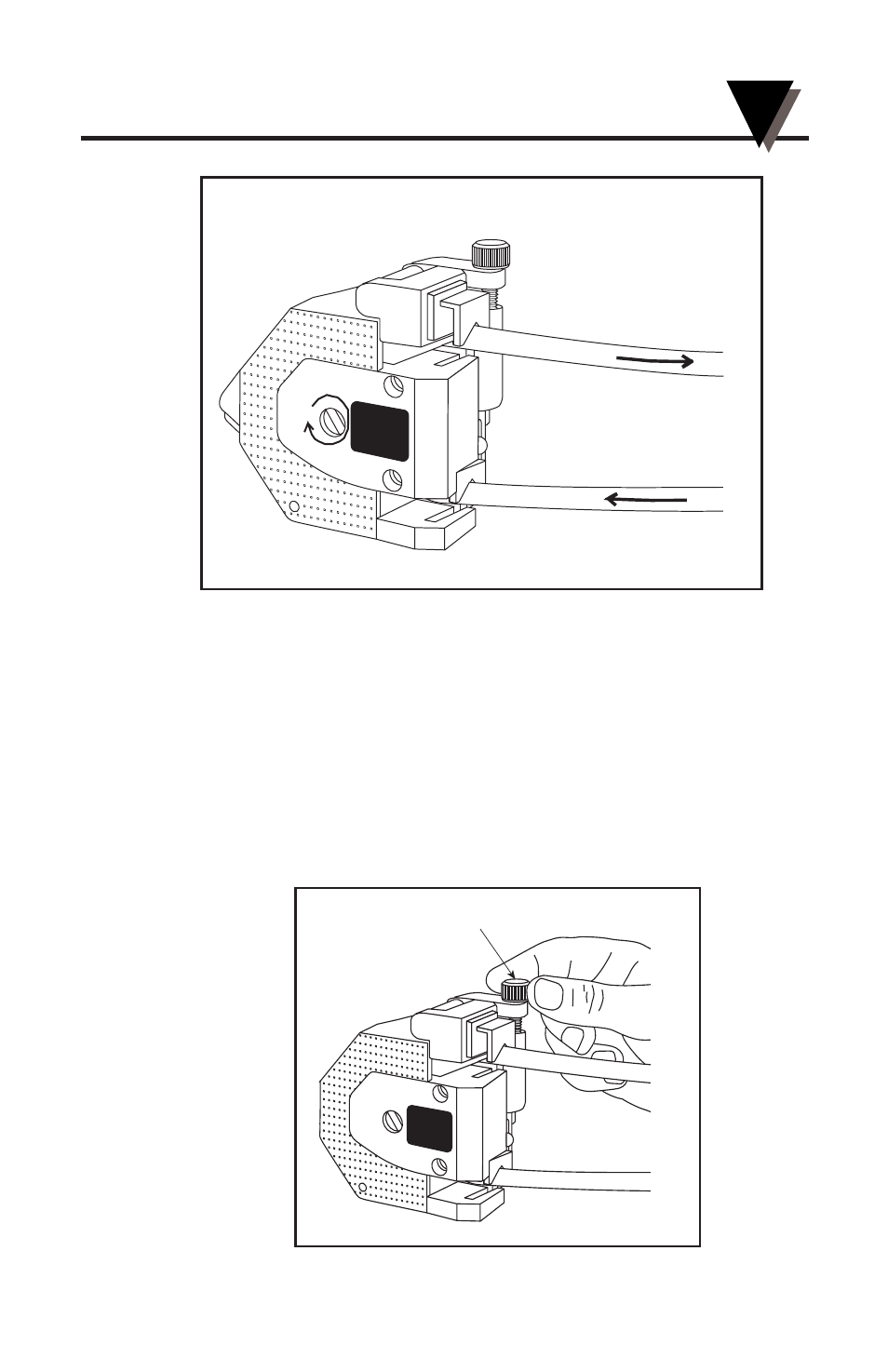

Figure 5-5b. Inlet and Outlet Flow
5.4 Adjusting the Clamp Screw
Once you start the pump, you may need to adjust the Clamp
Screw (4) slightly, to prevent the tube from creeping (moving)
through the pump. Creeping tends to occur on tubing of
larger sizes and tubing made from low friction materials (for
example, Santoprene). Use the following procedure to
eliminate creeping. Refer to Figure 5-6.
Figure 5-6. Adjusting the Clamp Screw
4
(Clamp Screw)
INLET
OUTLET
MOTOR TURNING CLOCKWISE
