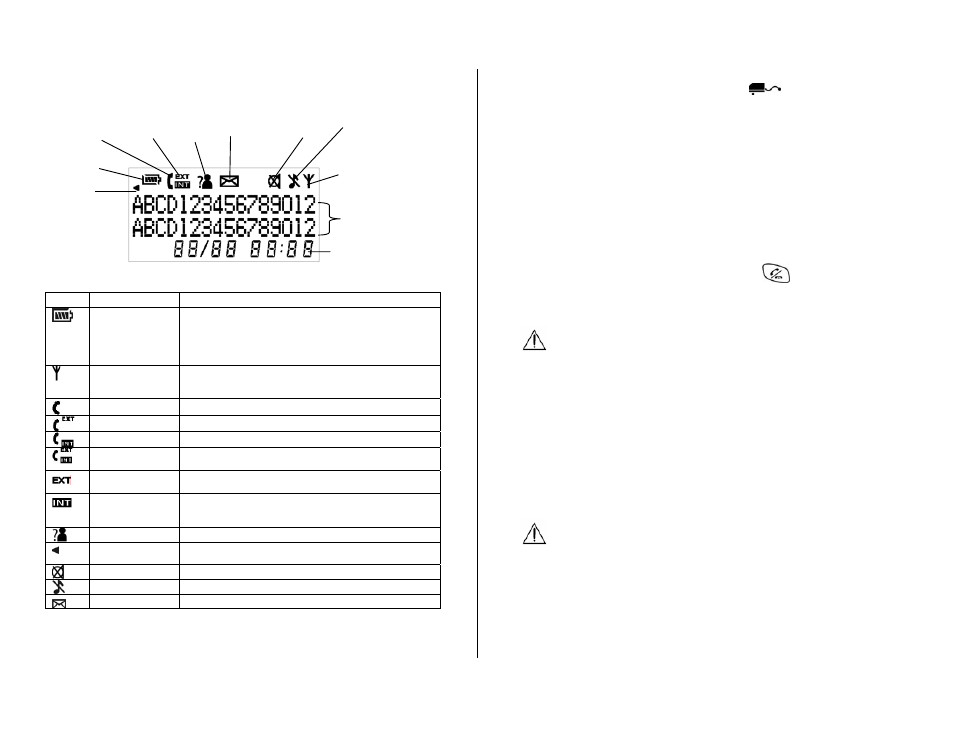

LCD Display on the Handset
6 of 42
Icon Name Description
Battery • Animated when charging.
• When the battery indicator displays 4 blocks, the
battery is fully charged.
• When the battery indicator displays no block, the
battery is almost empty, and requires charging.
Signal Indicator Steadily – signal linkage between handset and base is
established.
Blinking – no signal linkage with any base.
Off Hook Display during off hook.
Calling External User is calling outside.
Calling Internal User is making an intercom call
Conference User is talking with one external and another internal
user.
External Call Blinking – there is a call from outside.
Steady – Line is engaged.
Intercom Blinking – there is an intercom call.
– when being paged.
Steady – Line is engaged.
New CID New CID received.
Left Scroll
The number displayed contains more than 16 digits and
the rightmost 16 digits are displayed.
Mute Handset microphone is muted during off hook.
Ringer Off The handset ringer is turned off.
Message Waiting Message waiting indication (VMWI) has been received.
Basic steps to install
1. Connect the plug of the mains adaptor
to the socket on the
back of the base unit and the mains adaptor to the wall mains
supply.
2. Plugs the mains adaptor of the additional handset charger to the
wall mains supply.
3. Insert 2 rechargeable batteries (included) in each handset
observing the polarity, into the battery compartment of each
handset.
4. Slide the battery door into place on each Handset.
5. Place the handsets on the chargers and let the batteries charge for
a full 14 hours before using for the first time.
6. Connect one end of the telephone lead to the socket on bottom of
base unit and the other to the phone socket on the wall.
7. Check handsets for dial tone by pressing .
8. Handset may get warm during initial charge. This is normal.
CAUTION
Use only the mains adapter supplied with this telephone.
Incorrect adapter polarity or voltage can seriously damage the
unit.
Adaptor for Base
Input: 230 VAC 50 Hz
Output: 9 VDC 300 mA
Adaptor for Charger
Input: 230 VAC 50 Hz
Output: 9 VDC 150 mA
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN
INCORRECT TYPE. Never use non-rechargeable batteries; use
recommended type supplied with this telephone. Ni-MH batteries
must be disposed of in accordance with applicable waste disposal
regulations.
Left Scroll
Battery
Phone On
External /
Internal /
Conference
Message
Waiting Ringer Off
Mute
Signal Indicator
New CID
Digits & Text
Display
7-segment Clock
