36
First Time Setup —Continued
If you connect a video component to COMPONENT
VIDEO IN 1, 2, or 3, you must assign that input to an
input selector. For example, if you connect your DVD
player to COMPONENT VIDEO IN 2, you must assign
COMPONENT VIDEO IN 2 to the DVD input selector.
To upconvert and output composite video and S-Video
sources from the COMPONENT VIDEO OUT, select
the VIDEO setting.
Here are the default assignments.
Note:
• This procedure can also be performed on the AV
receiver by using the [SETUP], [ENTER], and arrow
buttons.

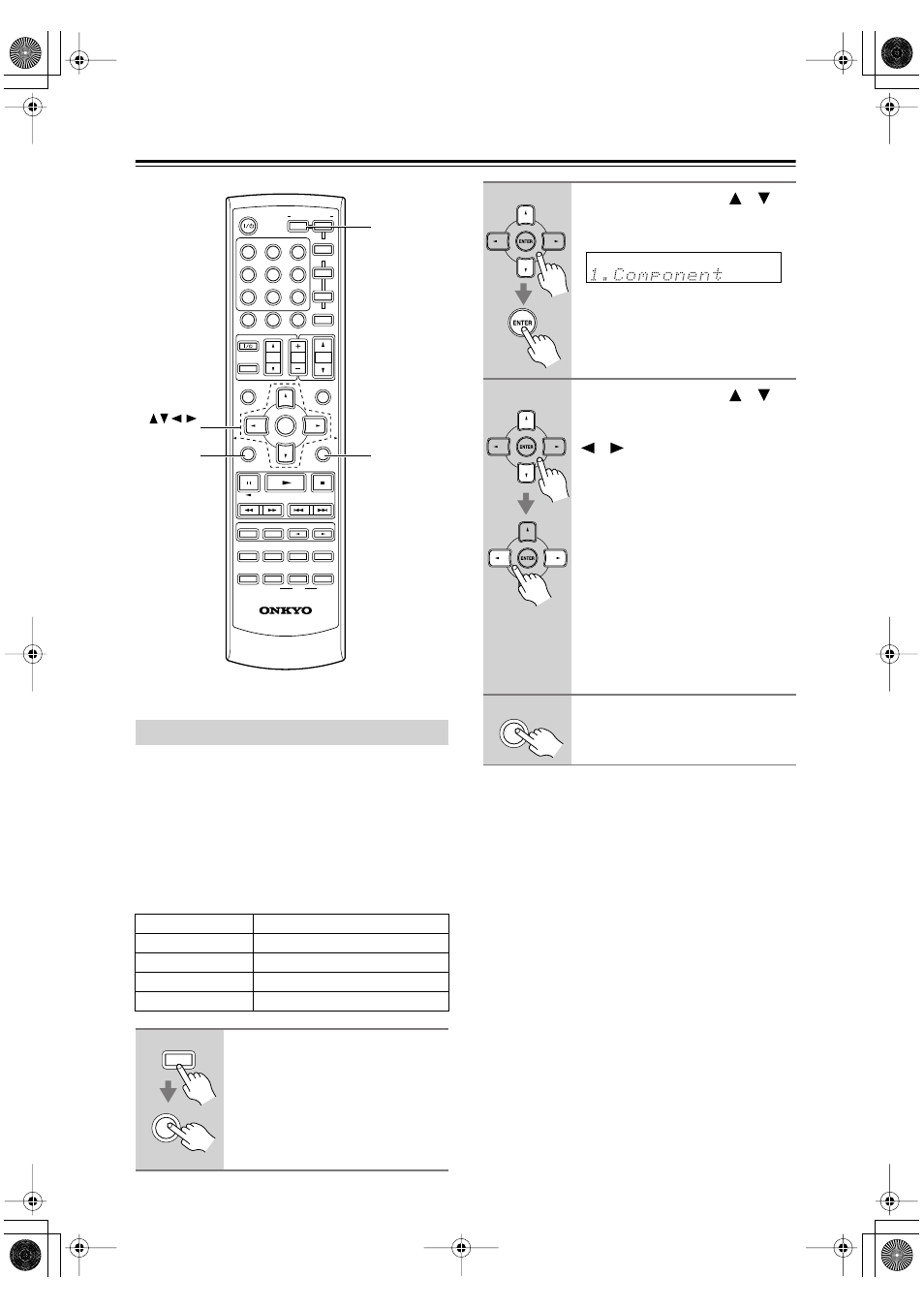

Component Video Setup
Input selector Default assignment
DVD IN1
VIDEO 1 VIDEO
VIDEO 2 VIDEO
VIDEO 3 VIDEO
1 Press the [RECEIVER] button,
followed by the [SETUP] button.
MUTING
PREVIOUS
MENU
GUIDE
TOP MENU
SP A / B
SETUP RETURN
PLAYLIST/CAT PLAYLIST/CAT
RANDOM SUBTITLE
PLAY MODE
AUDIO REPEAT
RC- 650M
--/---
TAPE
M D/CDR
HDD
CABLE
ON/STANDBY
DIMMER
ENT D TUN
SLEEP
10 11 12
INPUT SELECTOR
HDD DVD VCR
REMOTE MODE
V 1 V 2 V 3
C D TAPE TUNER
DVD MULTI CH
LISTENING MODE
T V
DISPLAY
TEST TONE CH SEL
SURROUND STEREO
Re-EQ
LEVEL+ LEVEL-
L NIGHT
VOL VOL
SAT
VCR
T V
DVD RECEIVER
C D
INPUT
+10 0 CLR
1 2 3
4 5 6
7 8 9
ENTER
CH
DISC ALBUM
RETURN SETUP
RECEIVER
ENTER
RECEIVER
SETUP
2 Use the Up and Down [ ]/[ ]
buttons to select “1. Compo-
nent,” and then press [ENTER].
3 Use the Up and Down [ ]/[ ]
buttons to select an input selec-
tor, and use the Left and Right
[
]/[ ] buttons to select:
IN1: Select if the video compo-
nent is connected to COM-
PONENT VIDEO IN 1.
IN2: Select if the video compo-
nent is connected to COM-
PONENT VIDEO IN 2.
IN3: Select if the video compo-
nent is connected to COM-
PONENT VIDEO IN 3.
VIDEO: Select to output composite
video and S-Video sources
from the COMPONENT
VIDEO OUT.
4 Press the [SETUP] button.
Setup closes.
