Getting to Know the AV Receiver
For detailed information, see the pages in parentheses.
A STANDBY/ON button (34)
Sets the AV receiver to On or Standby.
B STANDBY indicator (34)
Lights up when the AV receiver is on Standby and
flashes while a signal is being received from the
remote controller.
C Remote-control sensor (13)
Receives control signals from the remote controller.
D Display
See “Display” on page 11.
E Input selector buttons (37)
Select the input sources.
The [MULTI CH] button selects the multichannel
DVD input.
F Arrow/TUNING/PRESET and ENTER buttons
When AM or FM is selected, the TUNING [ ]
[ ] buttons are used for radio tuning, and the PRE-
SET [ ] [ ] buttons are used to select radio pre-
sets (see page 40). With the setup menus, they work
as arrow buttons and are used to select and set
items. The ENTER button is also used with the
setup menus.
G MASTER VOLUME control (37)
Sets the volume of the AV receiver to – ∞ dB, –83 dB
through +16 dB (relative display).
The volume level can also be displayed as an abso-
lute value. See “Vol Display” on page 51.
H PHONES jack (44)
This 1/4-inch phone jack is for connecting a stan-
dard pair of stereo headphones for private listening.

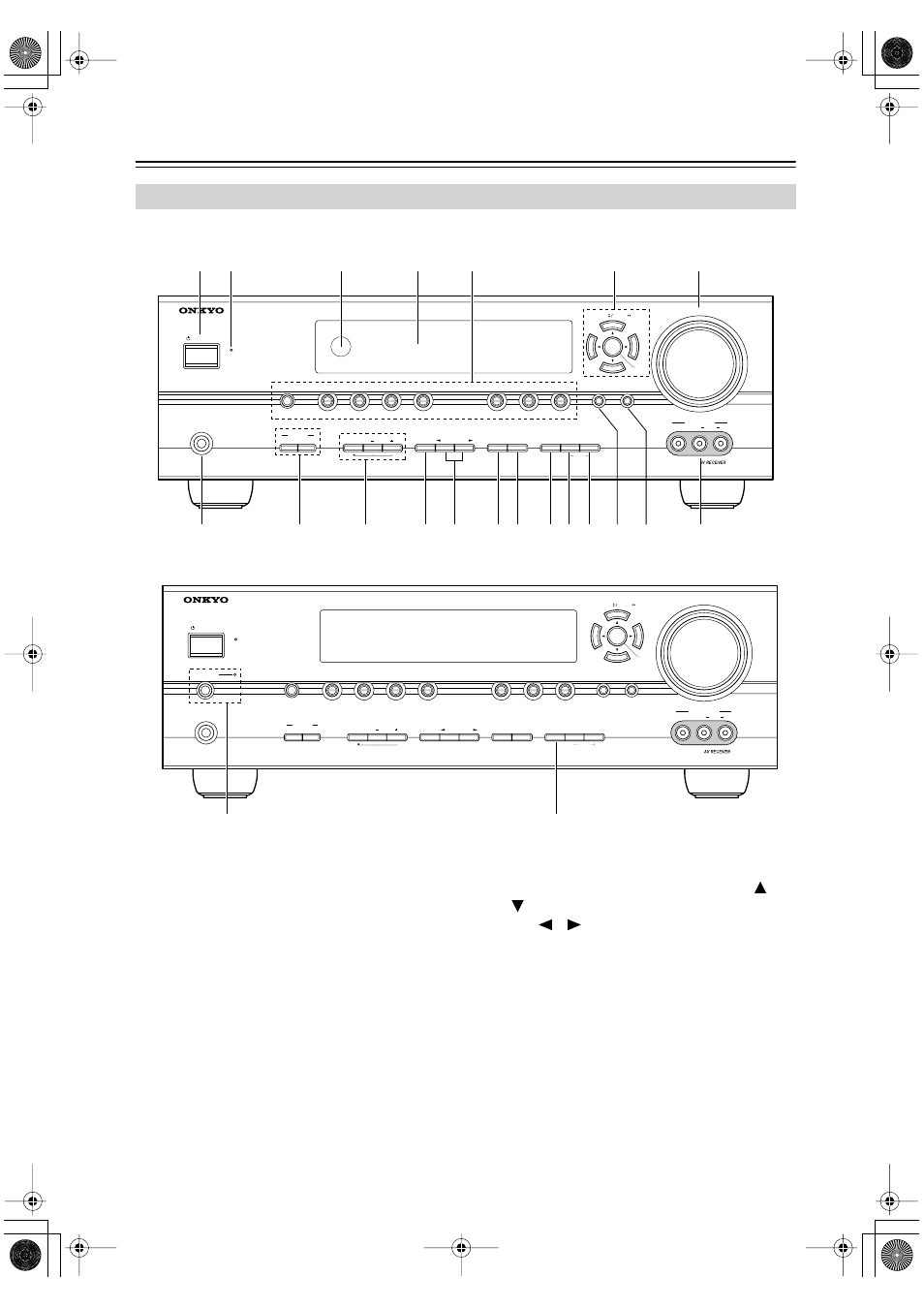

Front Panel
MASTER VOLUME
VIDEO
STANDBY
TONE DISPLAY THX DIMMER MEMORY DIGITAL INPUT TUNING MODE A B
SPEAKERS
TUNER TAPE VIDEO 3 VIDEO 2 VIDEO 1
VCR
DVD MULTI CH C D SETUP RETURN
CLEAR
LISTENING MODE
AUDIO L R
VIDEO 3 INPUT
STANDBY/ON
PHONES
TUNING PRESET
ENTER
1
T J K L M N O P Q 8 9 R S
2 3 5 6 7 4
MASTER VOLUME
VIDEO
STANDBY
TONE DISPLAY THX RT/RTY/TP MEMORY
DIGITAL
INPUT
TUNING
MODE A B
SPEAKERS
TUNER TAPE VIDEO 3 VIDEO 2 VIDEO 1
VCR
DVD MULTI CH C D SETUP RETURN
CLEAR
LISTENING MODE
AUDIO L R
VIDEO 3 INPUT
STANDBY/ON
PHONES
TUNING PRESET
ENTER
PURE AUDIO
O U
North American Model
Other Models
(European model only)
