page 26
When the switch is in the right position, the crossover is configured for low-pass operation. The rear channels of the
XTREME 600.4 are continuously variable from 45Hz to 5kHz.
REAR INTERNAL CROSSOVER CONFIGURATION
FRONT INTERNAL CROSSOVER CONFIGURATION
600Hz
LP ON
LP OFF
5kHz
175Hz 45Hz
6dB
HP x 10
HP x 1
10dB
3dB 0dB
120Hz
HP ON
HP OFF
1kHz
35Hz 10Hz

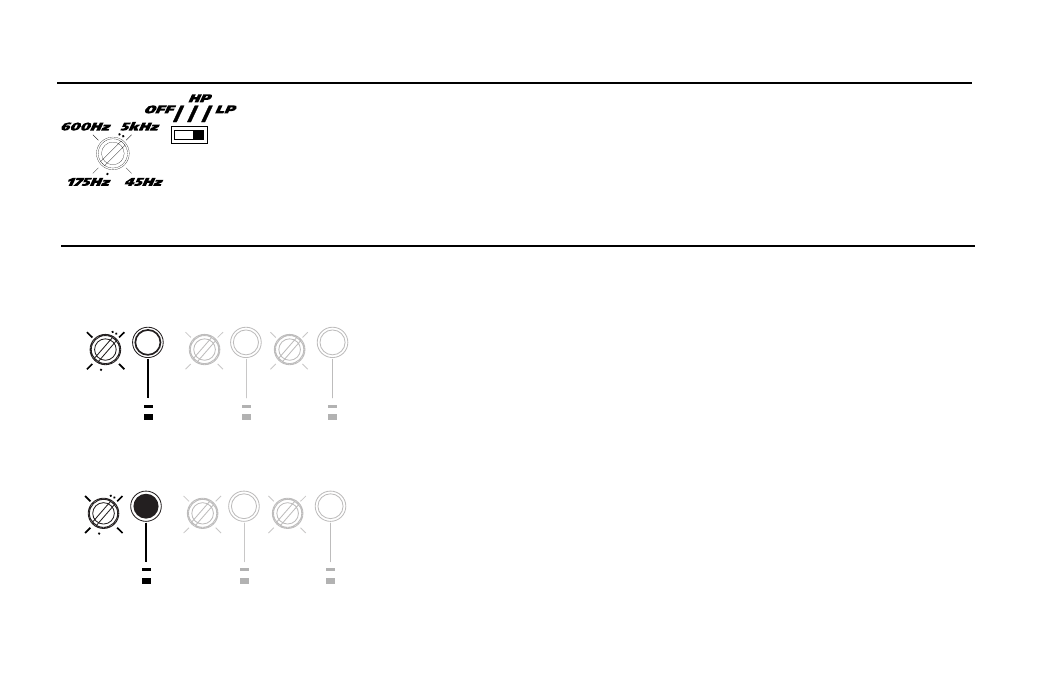

When the puch button switch is in the “off” position, the low-pass crossover is bypassed.
When the push button switch is in the “on” position, the low-pass crossover is activated. The
crosso ver frequency range is from 45Hz to 5kHz. There are additional reference points at 85Hz,
2.5kHz and 3.5kHz respectively.
600Hz
LP ON
LP OFF
5kHz
175Hz 45Hz
6dB
HP x 10
HP x 1
10dB
3dB 0dB
120Hz
HP ON
HP OFF
1kHz
35Hz 10Hz
The front channels of the XTREME 600.4 can be configured for either high-pass, low-pass or bandpass operation. INTELLiQ is a feature of the
amplifier that maximizes the performance of any subwoofer system. INTELLiQ is the one feature that seperates ORION amplifiers from the
compitition.
