13.3. Vibration Strength
No malfunction occurred after the following vibration test.
Vibration Test: Increase the frequency of the vibration from 10 Hz to 100 Hz with
accelerated velocity 19.6m/s
2 (2G) for 60 minutes in non-operating state. Repeat this
routine in each X, Y, Z direction once for 60 minutes each.
13.4. Static Electricity
Air discharge: 10 kV Max. (No malfunction)
15 kV Max. (No destruction)
Measurement environment: Use electrostatic testing device compliant with IEC 61000-4-2
Discharge resistance: 330 Ω
Capacitor charging: 150 pF
13.5. Dust and Drip Proof
IEC IP42
13.6. Cable Strength
13.6.1. Cable Pulling Test
No malfunction occurred after the following pulling test.
Pulling test: Fix the scanner and pull the cable with the force of 2.5 kg (24.5N) for
1 second. Repeat 20 times.
13.6.2. Cable Tail Bending Test
No malfunction occurred after the following bending test.
Bending test: Fix the scanner and attach a weight of 500 grams (4.9N); swing the
cable back and forth at an angle of 90°. Repeat it 1,000,000 times.

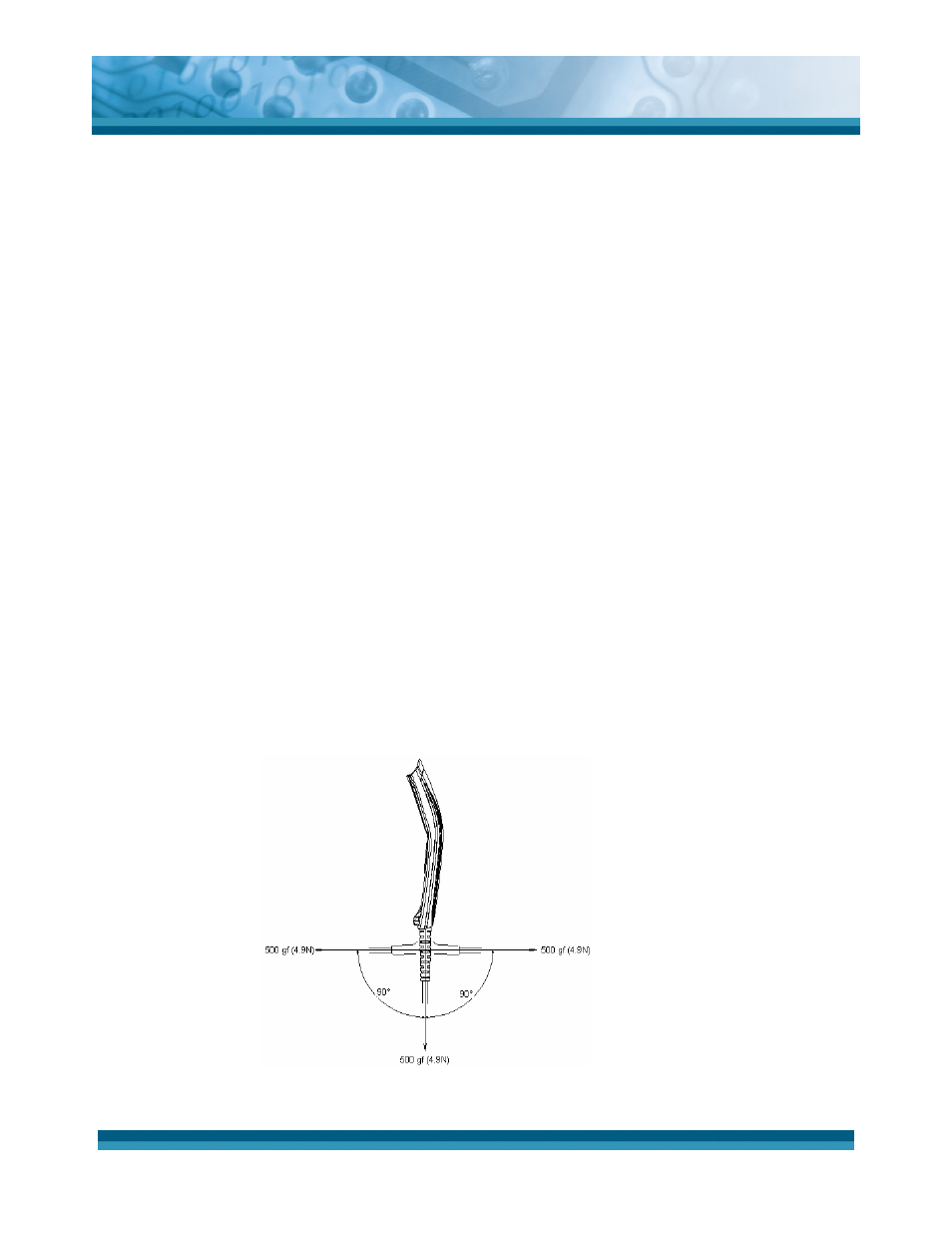

Figure 27: Cable tail bending test
