I N S T A L L A T I O N

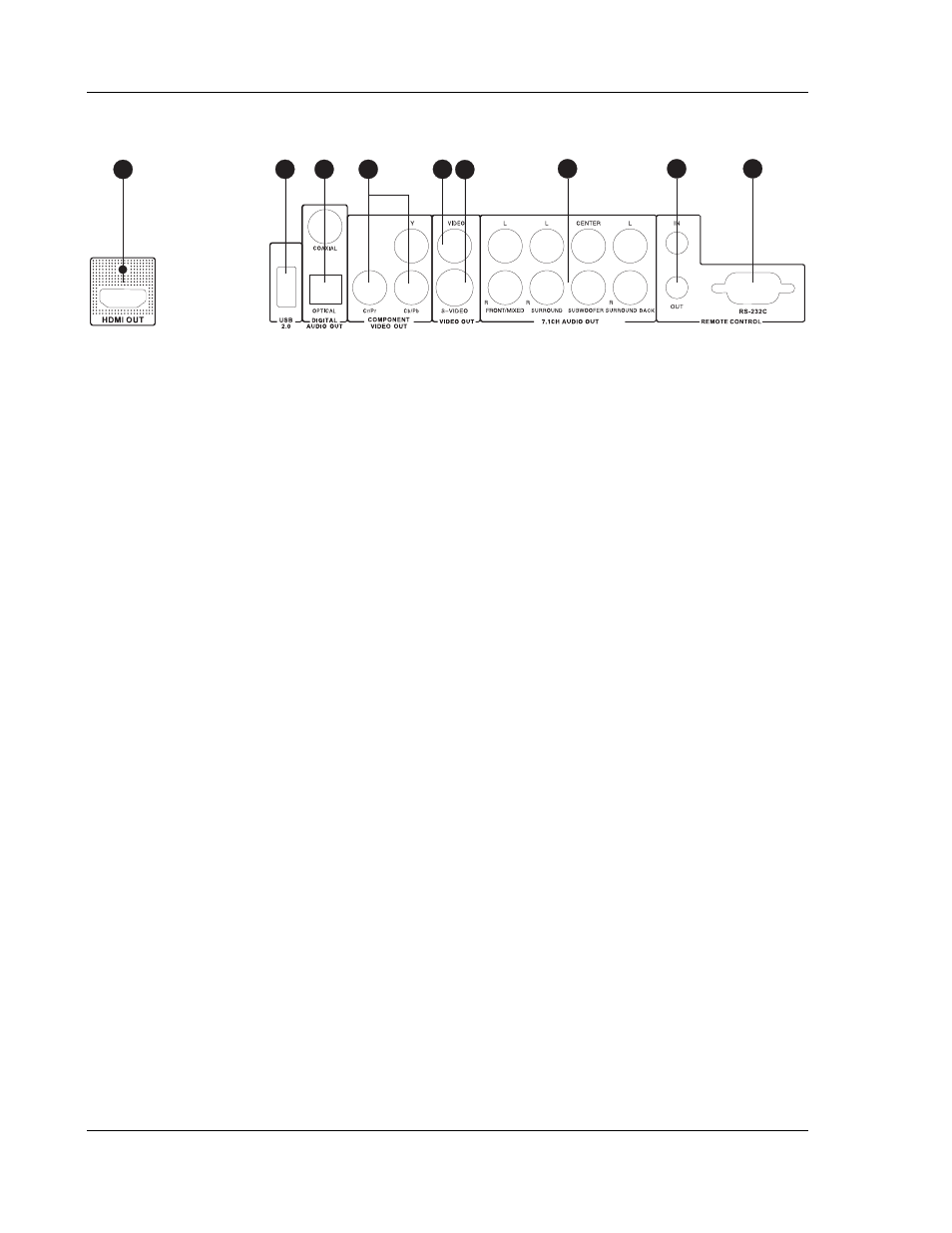

Rear Panel Connectors

1. HDMI Output

2. USB 2.0 Port

3. Coaxial and Optical Digital
Audio Output

4. Component Video Output

5. Composite Video Output

6. S-Video Output

7. 7.1CH Audio Output

8. IR IN and OUT Ports

9. RS-232 Port

In addition to the above connectors, the AC power inlet is also located on the rear panel. The inlet is the
IEC60-320 C18 type. Only the included AC power cord or an approved power cord with an IEC60-320 C17
type plug should be used.
