2.5 Daughter Boards
2.5.1 OME-DB-1825
The OME-DB-1825 is a daughter board designed for 32-channel AD cards such as
the OME-PCI-1002. Refer to the OME-DB-1825 user manual for details.

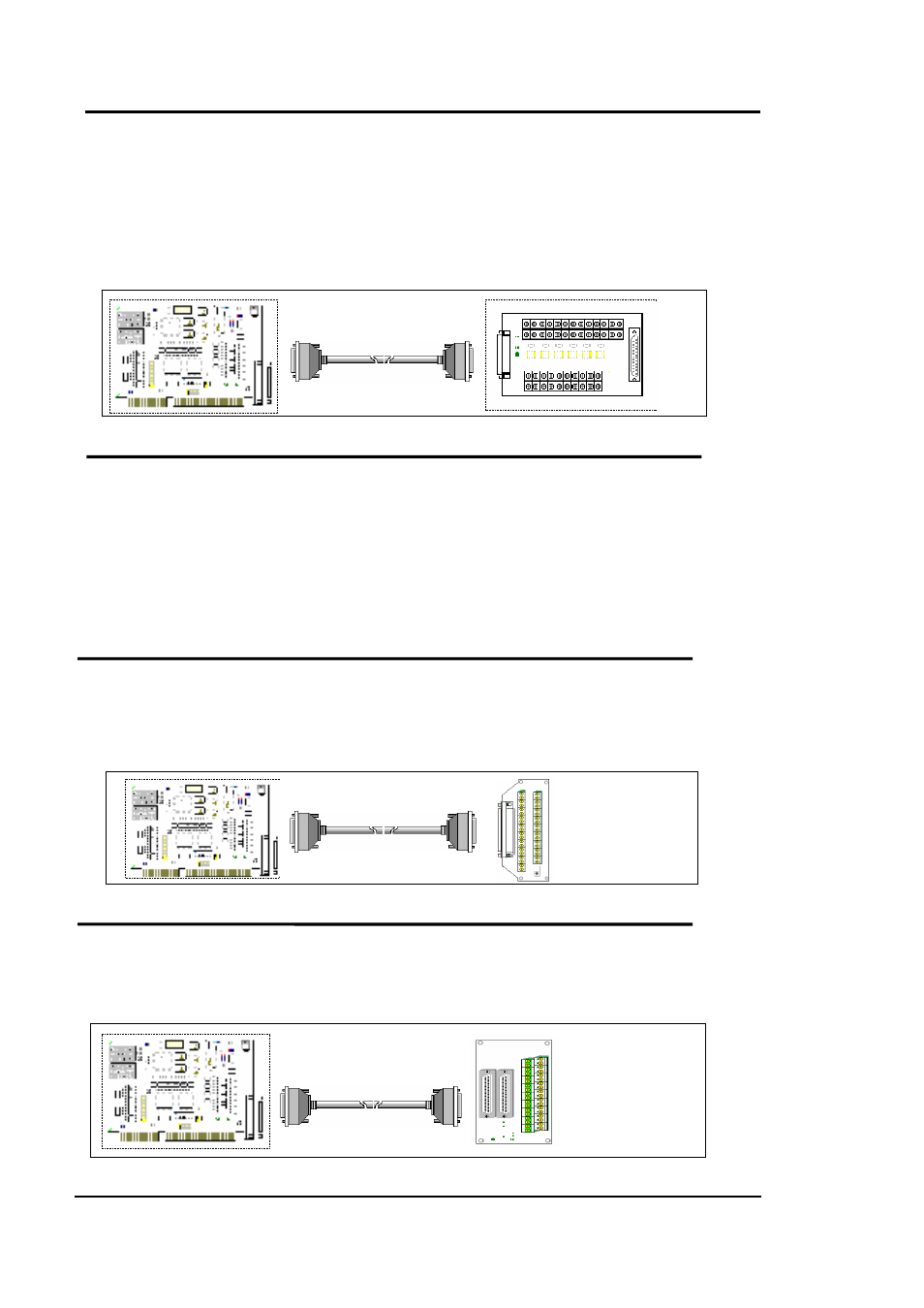

37pin cable
2.5.2 OME-DB-8225
The OME-DB-8225 provides a on-board CJC (Cold Junction Compensation)
circuit for thermocouple measurement and a terminal block for easy signal connection.
The CJC is connected to A/D channel_0. The OME-PCI-1002 can connect CON3 direct
to the OME-DB-8225 through a 37-pin D-sub connector. Refer to the OME-DB-8225
user manual for details.
2.5.3 OME-DB-37
The OME-DB-37 is a general purpose daughter board for boards with D-sub 37 pin
connectors. It is designed for easy wiring.
2.5.4 OME-DN-37
The OME-DN-37 is a DIN rail mount general purpose daughter board for boards with
D-sub 37 pin connectors. It is designed for easy wiring.
