12
Getting to Know the AV Receiver
The actual front panel has various logos printed on it. They are not shown here for clarity.
The page numbers in parentheses show where you can find the main explanation for each item.
A ON/STANDBY button (41)
Sets the AV receiver to On or Standby.
B STANDBY indicator (41)
Lights up when the AV receiver is on Standby and
flashes while a signal is being received from the
remote controller.
C Input selector buttons (47)
Select the following input sources: DVD,
VCR/DVR, CBL/SAT, AUX, TAPE, TUNER, CD,
DOCK.
The [MULTI CH] button selects the multichannel
DVD input.
D Remote-control sensor (20)
Receives control signals from the remote controller.
E Display
See “Display” on page 13.
F SETUP button
Opens and closes the setup menus.
G TUNING, PRESET, Arrow, and ENTER
buttons
When AM or FM is selected, the TUNING [ ]
[ ] buttons are used for radio tuning, and the PRE-
SET [ ] [ ] buttons are used to select radio pre-
sets (see page 54). With the setup menus, they work
as arrow buttons and are used to select and set
items. The ENTER button is also used with the
setup menus.
H RETURN button
Selects the previously displayed setup menu.

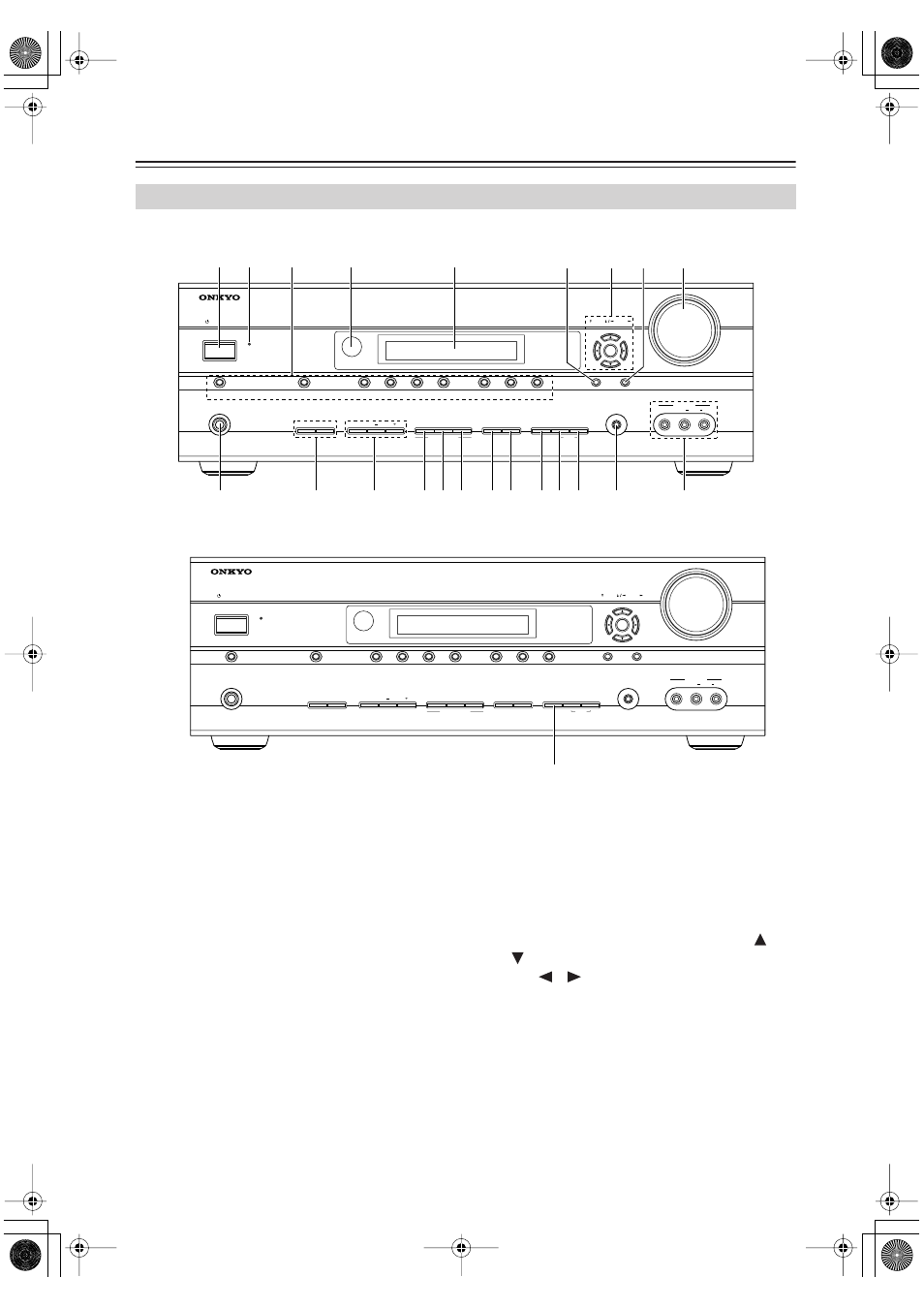

Front Panel
ON/STANDBY
STANDBY
SPEAKERS TONE MOVIE/TV MUSIC GAME DISPLAY DIMMER MEMORY
CLEAR
DIGITAL INPUT TUNING MODE B A
PHONES
MULTI CH DOCK DVD VCR/DVR CBL/SAT AUX TAPE TUNER CD SETUP
SETUP MIC VIDEO L AUDIO R
AUX INPUT
ENTER
RETURN
TUNING PRESET
MASTER VOLUME
AV RECEIVER HT-R560
LISTENING MODE
9 8 7 6 4 5 1 2
K J
3
L V MN O PQ RST U
Other models
North American model
ON/STANDBY
STANDBY
SPEAKERS TONE MOVIE/TV MUSIC GAME DISPLAY RT/PTY/TP MEMORY
CLEAR
DIGITAL INPUT TUNING MODE B A
PHONES
MULTI CH DOCK DVD VCR/DVR CBL/SAT AUX TAPE TUNER CD SETUP
SETUP MIC VIDEO L AUDIO R
AUX INPUT
ENTER
RETURN
TUNING PRESET
MASTER VOLUME
AV RECEIVER HT-R560
LISTENING MODE
R
