Signal Selection
If signals are present at more than one input, the inputs will
be selected automatically in the following order of priority:
HDMI, component video, composite video.
However, for component video only, regardless of whether
a component video signal is actually present, if a
component video input is assigned to the input selector,
that component video input will be selected. And if no
component video input is assigned to the input selector,
this will be interpreted as no component video signal being
present.
In the Signal Selection Example shown below, video
signals are present at both the HDMI and composite video
inputs. However, the HDMI signal is automatically
selected as the source and the video is output by the HDMI
output.
Audio components can be connected by using any of the
following audio connection formats: analog, optical,
coaxial, or HDMI.
When choosing a connection format, bear in mind that the
AV receiver does not convert digital input signals for
analog line outputs and vice versa.
If signals are present at more than one input, the inputs will
be selected automatically in the following order of priority:
HDMI, digital, analog.
*1
Depends on the “Audio TV Out” setting (
).
*2
This is possible when “Audio Return Channel” is set to
“Auto” (
), the TV/CD input selector is selected,
and your TV is ARC capable.
Tip
• When a signal is input via HDMI and the corresponding input
selector is selected, the HDMI indicator lights. In the case of an
optical or coaxial connection, the DIGITAL indicator lights. In
the case of an analog connection, neither of the HDMI and
DIGITAL indicators light.
IN
MONITOR OUT
Blu-ray Disc/DVD player, etc.
AV receiver
TV, projector, etc.
Composite
Composite
Component
Component

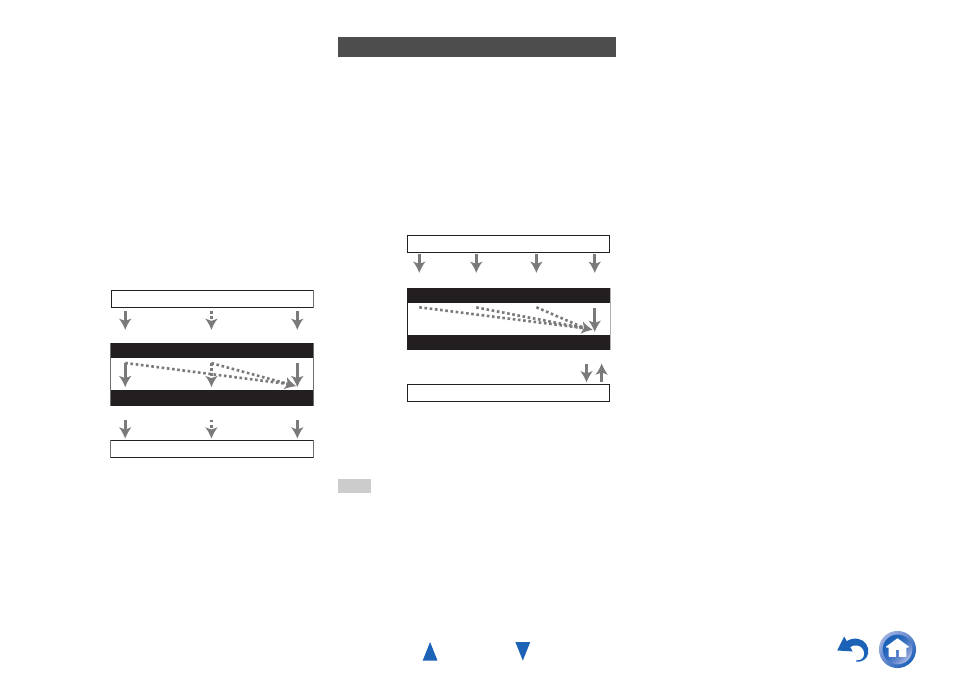

Signal Selection Example
HDMI
HDMI
Audio Connection Formats
IN
OUT
Blu-ray Disc/DVD player, etc.
AV receiver
TV, projector, etc.
HDMI
Coaxial
Analog
Audio Signal Flow Chart
HDMI
Optical
