Installation 13
2 Press in the cover release buttons on the side of the copy
stacker until it clicks open. Lift up the stacker.
3 Take out the image drum cartridge.
4 Remove the protective sheet. Be careful not to touch the
green surface of the drum.

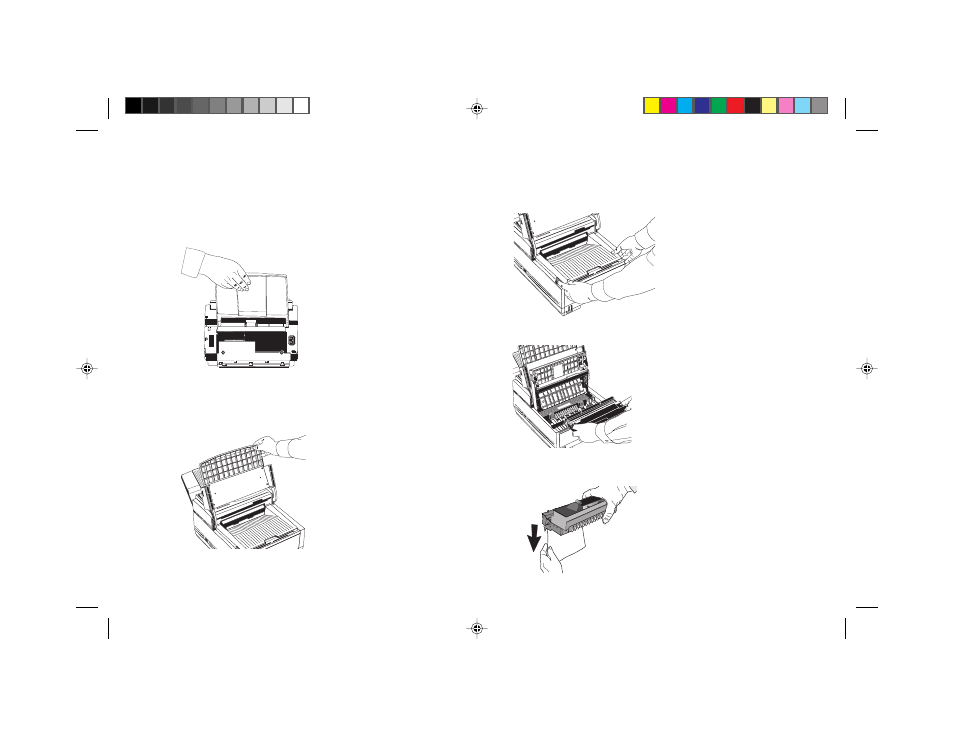

Setting Up Your OKIFAX 5050
Install the Document Stacker
Slip the document stacker indents over the tabs on the
rear of the unit so that they click into place.
Remove the Protective Sheet
1 Lift up the document table.
