Sirius Weather Data
(continued)
Card No. 22

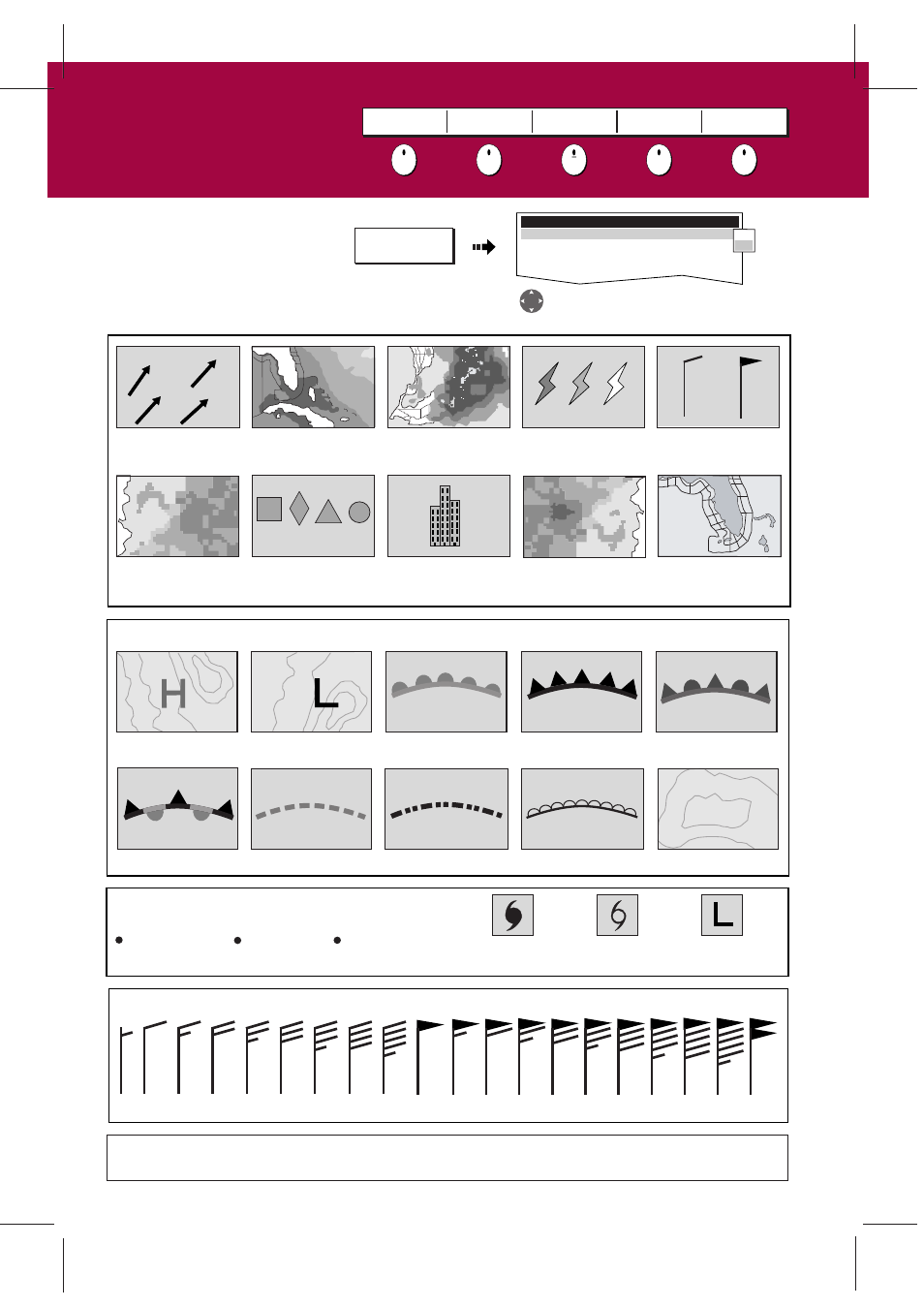

Weather symbols (USA only)
FIND SHIP
DISPLAY
GRAPHICS
ANIMATE
WEATHER
WEATHER
REPORTS
PRESENTATION
D8810_1
See the Weather (USA only) chapter of the Reference Manual.
?
More information....
Waves
(blues-green-red)
Canadian radar
(light green- dark red)
Storm cast
Cities (grey) Surface observation station
(pink)
Lightning
(light-med-dark yellow)
Rain (green-yellow-red)
Snow (blues)
Mixture (pinks)
Wind
(see below for details)
Sea surface temperature
(blue-green-yellow
-orange-red)
26
22
22
24
Squall line (red)
High pressure (blue) High pressure (red) Cold front (blue) Warm front (red) Occluded front (purple)
Stationary front (red-blue) Trough (brown) Isobars (grey)
1012
1010
Dry line (brown)
Or
Surface pressure
Hurricane
(Category 1-5)
Tropical
storm
Tropical disturbance
or tropical depression
Storm Tracks symbols
Note: Highlight the symbol for additional information
Florid
a
Cu
ba
3-7 8-12 13-17 18-22 23-27 28-32 33-37 38-43 44-47 48-52 53-57 78-82 73-77 68-72 63-67 58-62 88-93 83-87 98-102 94-97
Wind speed symbols (knots)
etc.
Flor
ida
Marine zones
NWS C-man WST Buoy
Shown in three different colours:
Grey - historical Red - current Orange - forecast
By default, all weather graphics
are set to OFF.
To display the required weather
graphic
:
DISPLAY
GRAPHICS...
NOWRad
Storm Cast
Sea Surface Temp
Canadian Radar OFF
OFF
OFF
OFF
Highlight, select and switch graphic
on/off as required
Weather Graphics
OFF
ON
