MAINTENANCE

DB150 07/11

Maintenance Section 5-7

MAINTENANCE

DRIVELINE LUBRICATION

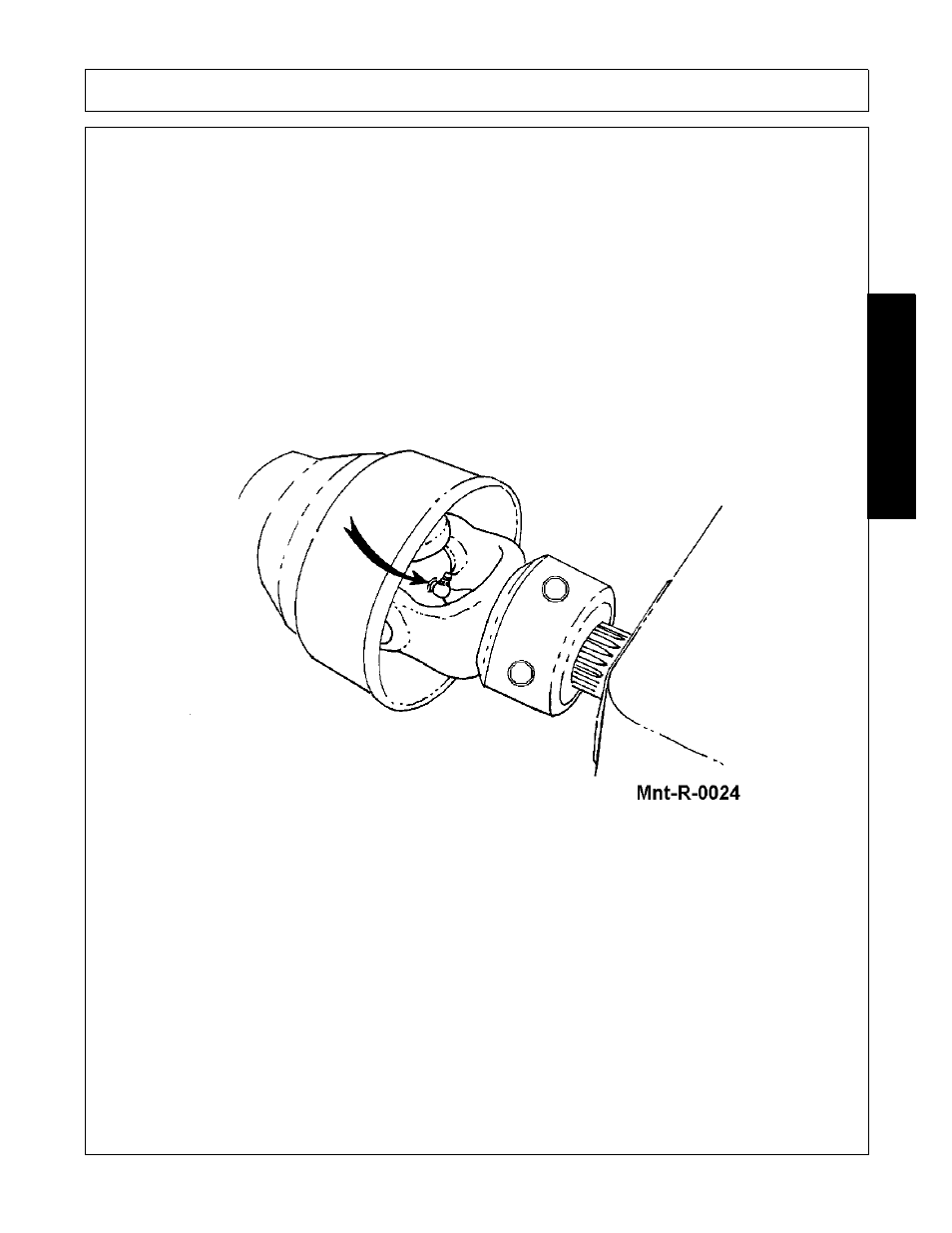

Grease Fittings are located on the Cross Assembly of each U-Joint and on the telescoping tubes. Grease U-
Joint after each 8 hours of use. Figure Mnt-0024. Do not force grease through the Needle Cup Assemblies.
Grease the telescoping tubes after every 8 hours use. Some PTO-to-Hitch connections may necessitate
cutting a hole in the shields to be able to align the Grease Fitting holes for lubrication. Lubricate the shield
bearings every 16 hours. Figure Mnt-0026.
