ASSEMBLY
DB150 07/11 Assembly Section 3-10
© 2011 Alamo Group Inc.
ASSEMBL
Y

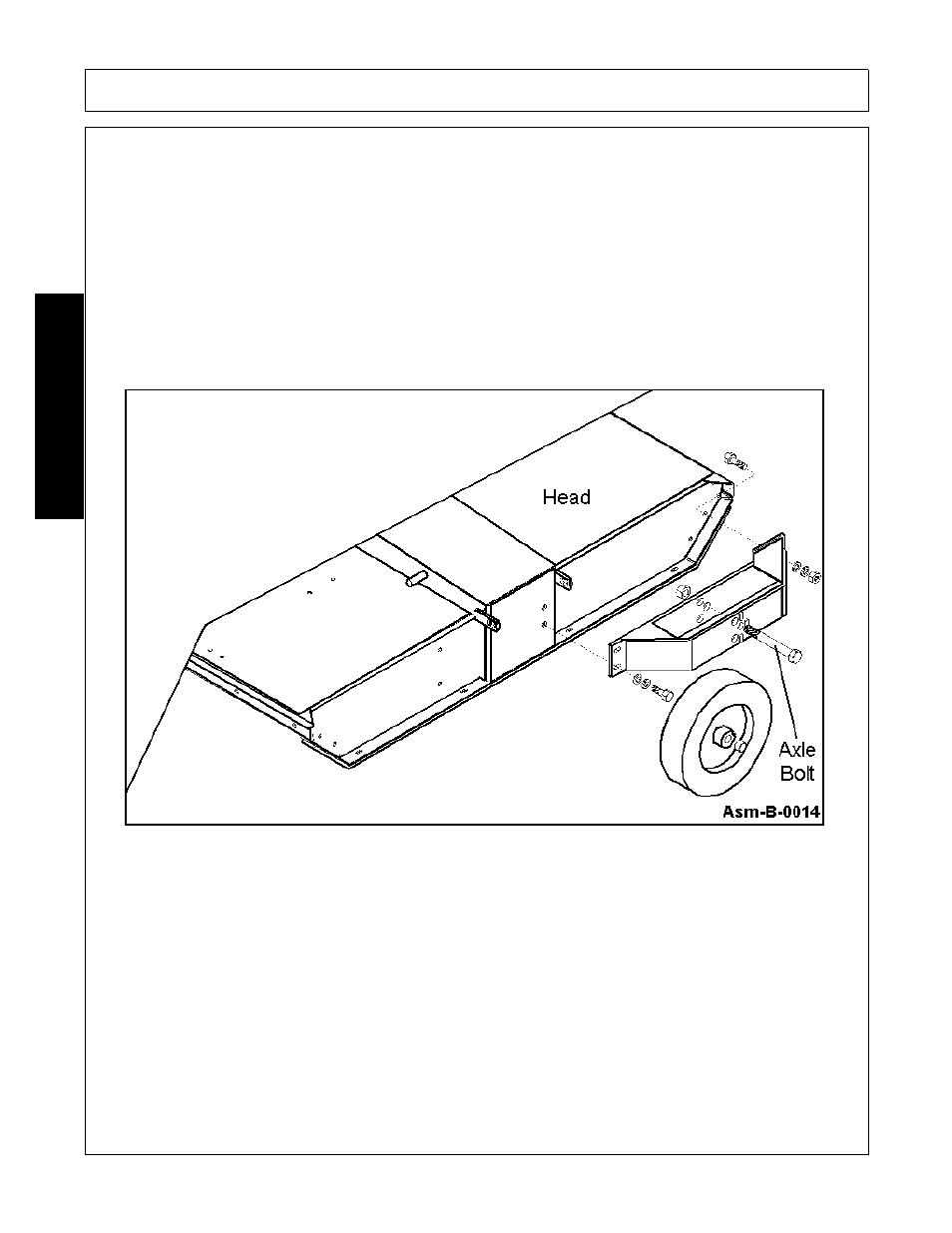

SIDE GAUGE WHEEL (OPTIONAL)
Assemble to out front side of head as shown in Figure Asm-B-0014. Adjust axle bolt into one of three possible
positions.
