9.3 Driveline Angle Problems

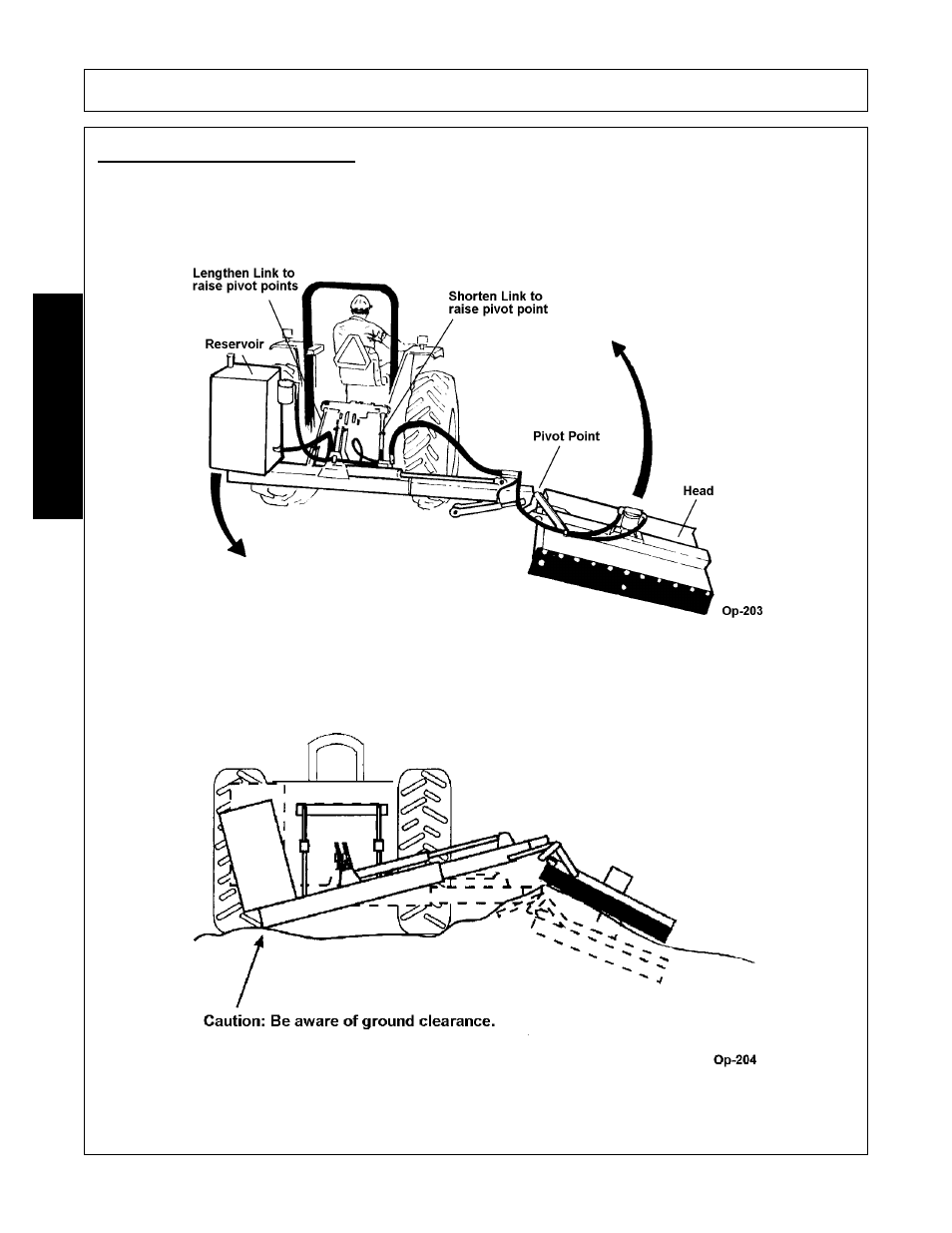

Due to the shape or contour of the area being mowed, it may be necessary to raise tractor 3 pt. causing severe
angle in the main drive line. When this is encountered, adjust length of 3 pt. arms so as to tilt main frame
raising the head pivot point. (FIG. Op-203)
Do not adjust 3 pt. links so as to cause a ground clearance problem on the reservoir end. (FIG. Op-204)
