RuggedServer™ RS416
Modular 16-Port Serial Device Server with Integrated Managed Ethernet Switch

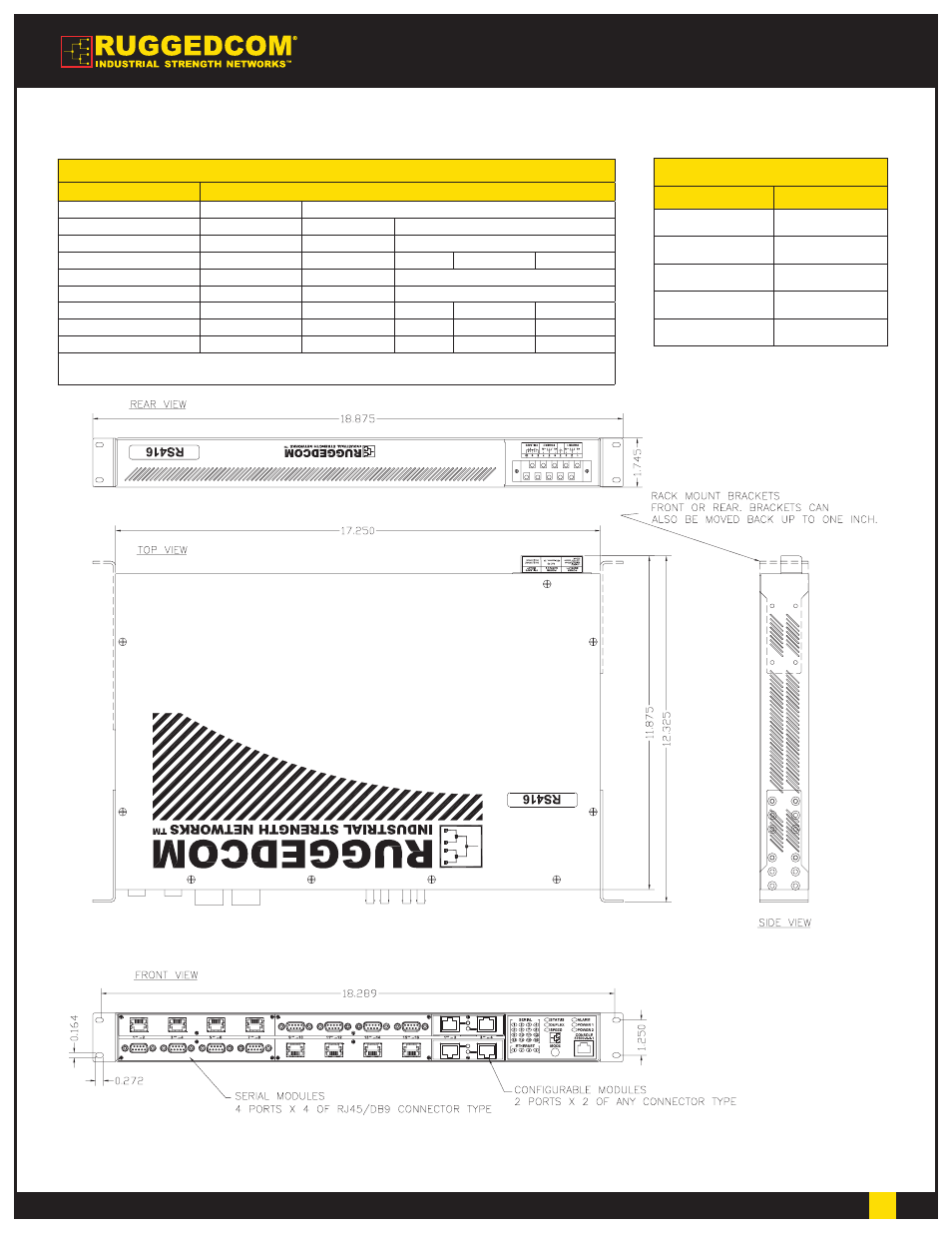

Fiber Specifications and Dimensions
Fiber Optical Specifications (Ethernet Ports)
Parameter Fiber Port Type
10BaseFL 100BaseFX
Mode Multimode Multimode Singlemode
Connectors ST MTRJ / ST / SC LC / SC
Typical Dist. (km) 2 2 20 50 90
Optical Wavelength (nm) 820 1310 1310
Cable Size Core/Cladding (um) 50 or 62.5/125 50 or 62.5/125 8 or 9/125
Tx Power (dBm) -34.4 -15.7 -15.5 -2.5 2.5
Rx Sensitivity (dBm) -8.2 -33.5 -32 -37 -39
Typical Budget 22 17 16.5 34.5 41.5
Longer segment lengths dependent on fiber specifications. Consult factory for further details.
Serial Fiber Specifications
Parameter Fiber Port Type
Connector ST
Maximum Distance 5km
Tx Power -13.5 dBm Aug
Rx Sensitivity -28.5 dBm Aug
Optical Budget 15dB
