www.RuggedCom.com 2 RuggedServer™ RS416
RuggedServer™ RS416
Modular 16-Port Serial Device Server with Integrated Managed Ethernet Switch
Modular HMI:
 Front or Rear Mount
Mounting Options

Panel/Din Rail
 19” Rack Mount

Front or Rear Mount
Fast Ethernet Ports Types:

up to 4 Fast Ethernet Ports

10/100TX RJ45
 10FL Multimode

100FX Multimode

IEEE 1588
Operating Temperature

-40°C to +85°C

No Fans
Integrated Power Supply

Universal high-voltage range:
88-300VDC or 85-264VAC

Popular low voltage DC ranges:
24VDC (10-36VDC), 48VDC
(36-59VDC)
 True Dual Redundant Parallel
Load Sharing (Optional)
Critical Alarm Relay
 Form-C contact ratings:
Max Voltage 250VAC,125VDC
Max Current 2A@250VAC,
2A@30VDC
Modularity:
 6 available slots

4, 8, 12, 16 Serial Port Configurations

2 or 4 Fast Ethernet Ports
Serial Port Types:

up to 16 Serial Ports

Software selectable EIA/TIA RS232,
RS485, RS422 serial ports with
IRIG-B outputs
 DB9, RJ45 or ST Fiber
Optical connectors

Mix and match types and connector

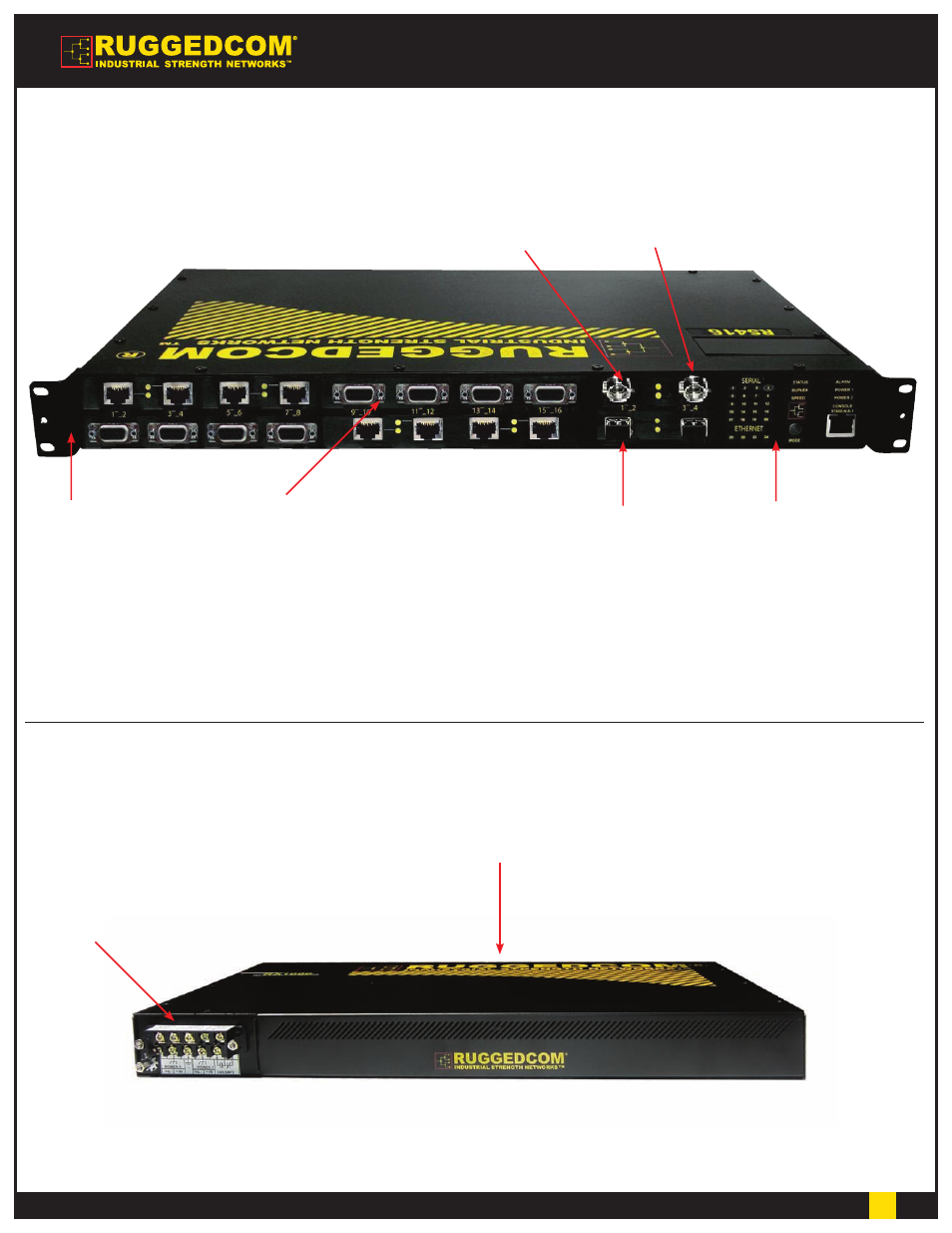

RuggedServer™ RS416
IRIG-B Input:

BNC Connector

PWM TTL
IRIG-B Output:
 BNC Connector

PWM TTL

PPS
