Raypak 750 User Manual
Page 8

8
CLEARANCES
TABLE 1
MINIMUM CLEARANCES FROM COMBUSTIBLE SURFACES
(INDOOR ALCOVE INSTALLATIONS)
Boiler Size
Boiler Side
500
750
1000
Floor
See Note 1.
Rear
1”
1"
1"
Right
12” (Water side)
12" (Water side)
12" (Water side)
Left
1”
1”
1”
Top
0”
0”
0”
Vent
1”
1”
1”
Note 1. Do not install on carpeting.

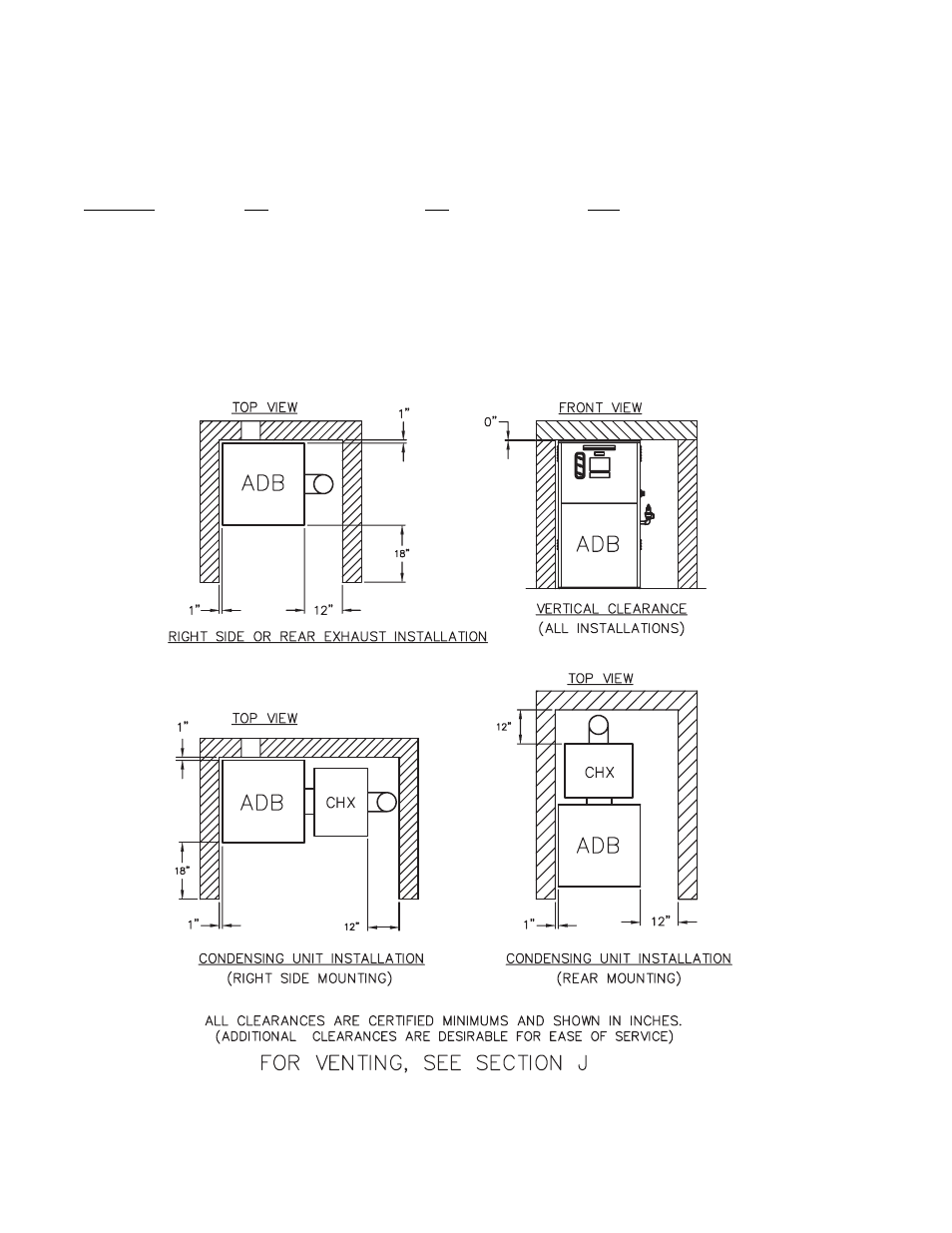

Figure B-1
MINIMUM CLEARANCES FROM COMBUSTIBLE SURFACES AND FOR EASY SERVICING
