Raypak 750 User Manual
Page 38
SECTION J-4
Vertical Direct Venting/Combustion Air (Category I)
Figure J-4

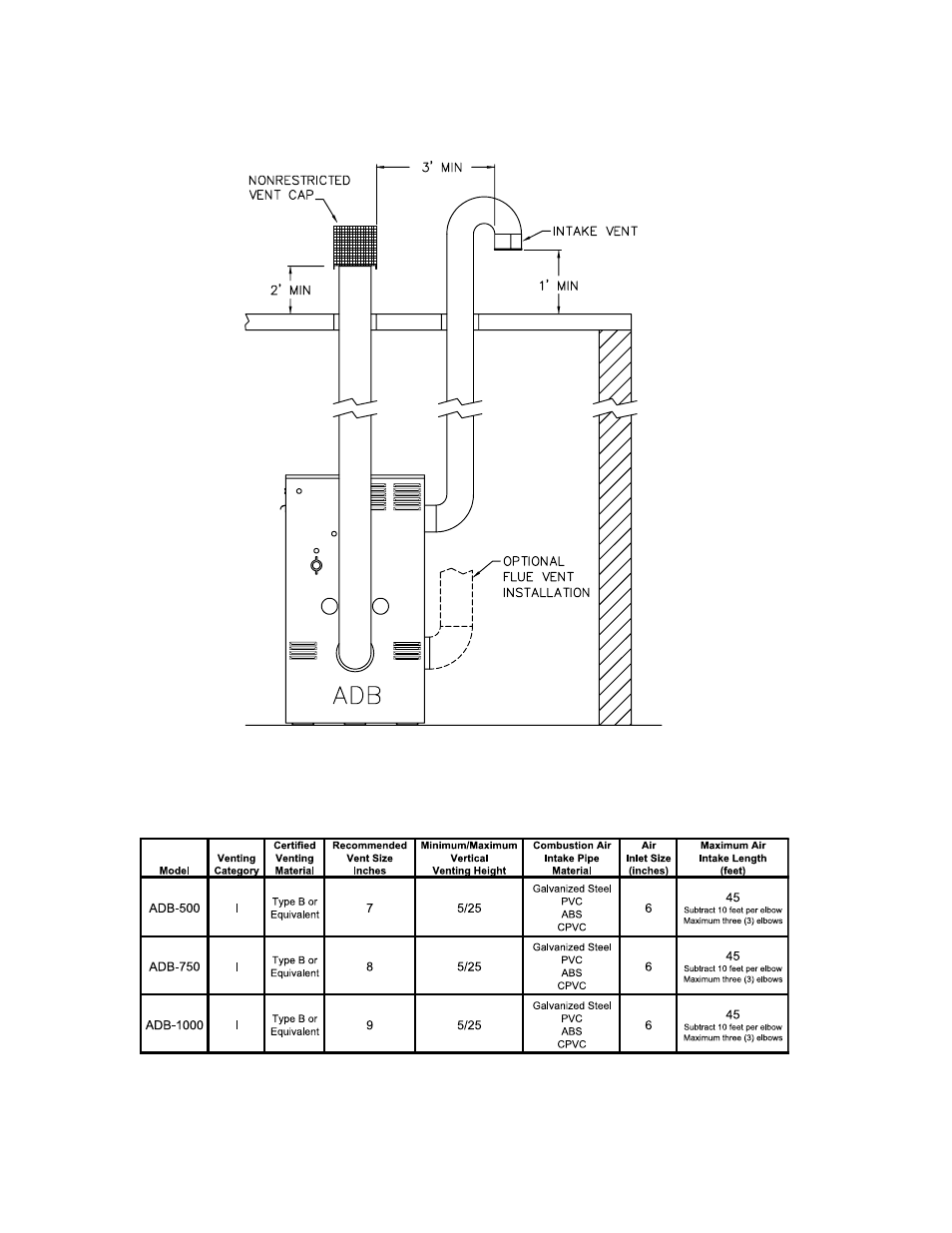

VERTICAL DIRECT VENTING WITHOUT ADD-ON CONDENSING HEAT EXCHANGER
*Vent lengths are based on a lateral length of 2 feet. Refer to the latest edition of National Fuel Gas Code for further
details (ANSI Z223.1) or in Canada the latest edition of CAN/CGA-B149.1 and B149.2.
38
