EQUAL ANGLE JACKSHAFT DRIVELINE

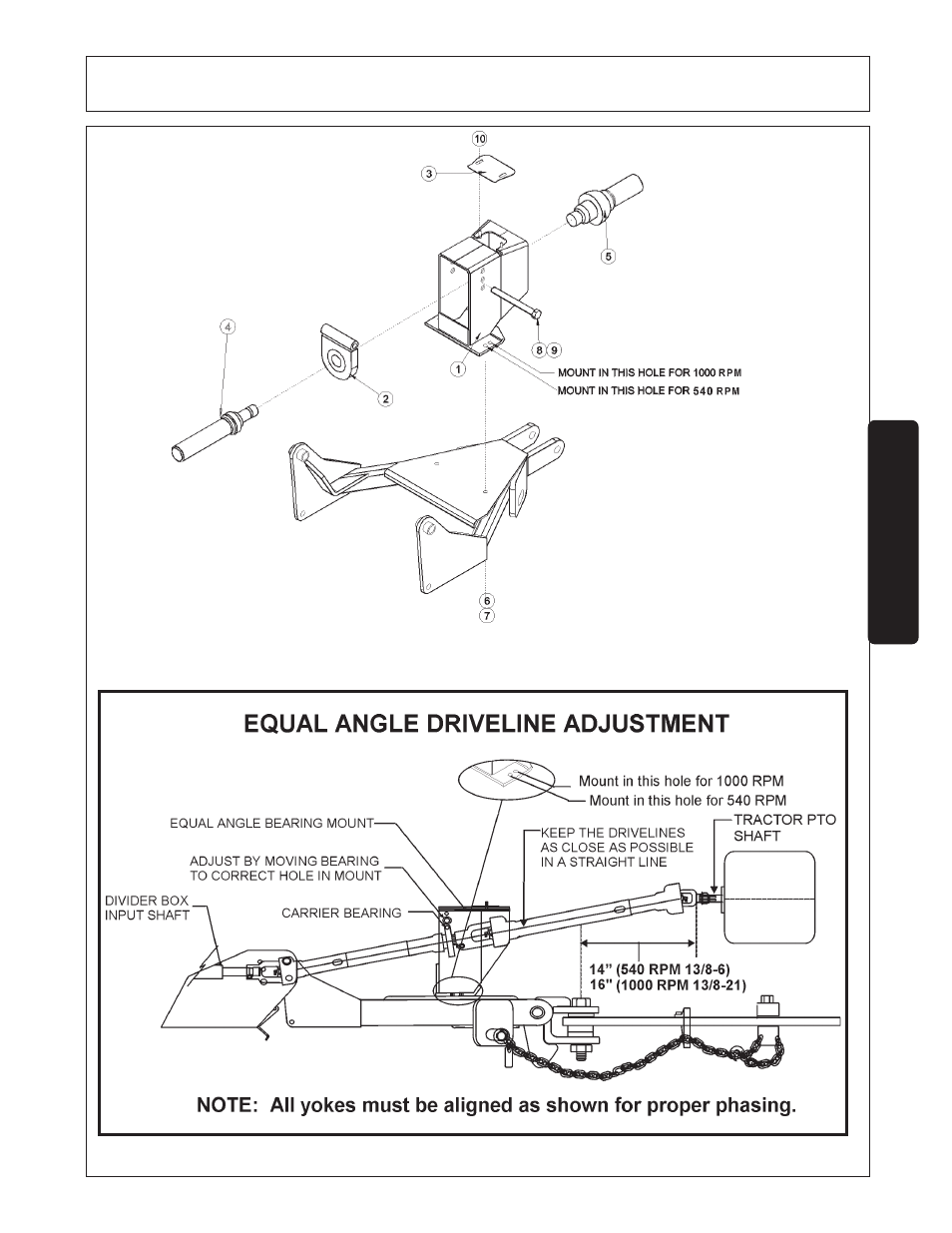

Attach bearingsupport weldment (ref #1) to torque weldment as shown. Install jackshaft bearing (ref #2) onto
jackshaft stub end.
