Assembly Section 3-10 FL20M/FL14M 10/03
ASSEMBLY
ASSEMBL
Y
© 2004 Alamo Group Inc.
1,2
4
2,3
4
5,2
3
1,2

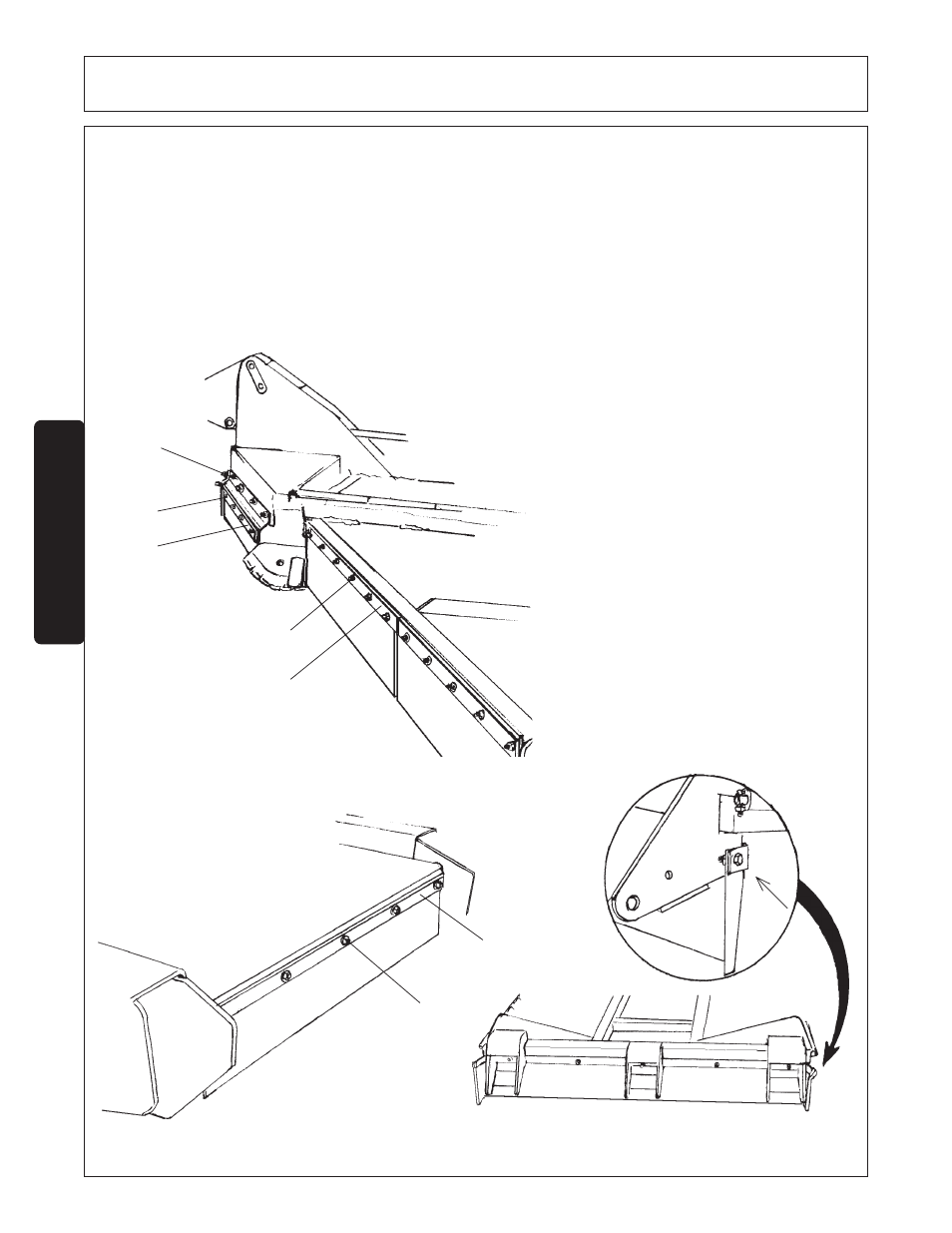

FIGURE 14. Rear Wing Section
Deflector Attachment
FIGURE 15. Rear Center Section
Deflector attachment
FIGURE 13. Front Rubber Deflector Attachment.
Front Center Section
Front Wing Section
RUBBER DEFLECTORS (STANDARD)
Attach the Center Front Deflector Brackets to the Center Section withthe bolts (1) and locknuts (2). Fasten
the Center Section Front Rubber Deflectors (FIGURE 14) To these brackets with bolts (3) locknuts (2) and
retaining bars (4).
Attach the Front Wing Deflectos to the wing sections with the bolts (5) locknuts (2), and retaining bars (4).
Fasten the Rear Rubber Deflectors (FIGURE 15 & 16) the Center Section and Wing Sections with bolts (1)
locknuts (2) and retaining bars (3). Note that the Center Rear Deflector is attached to the inside of the
Center Section, see the detail in FIGURE 16.
