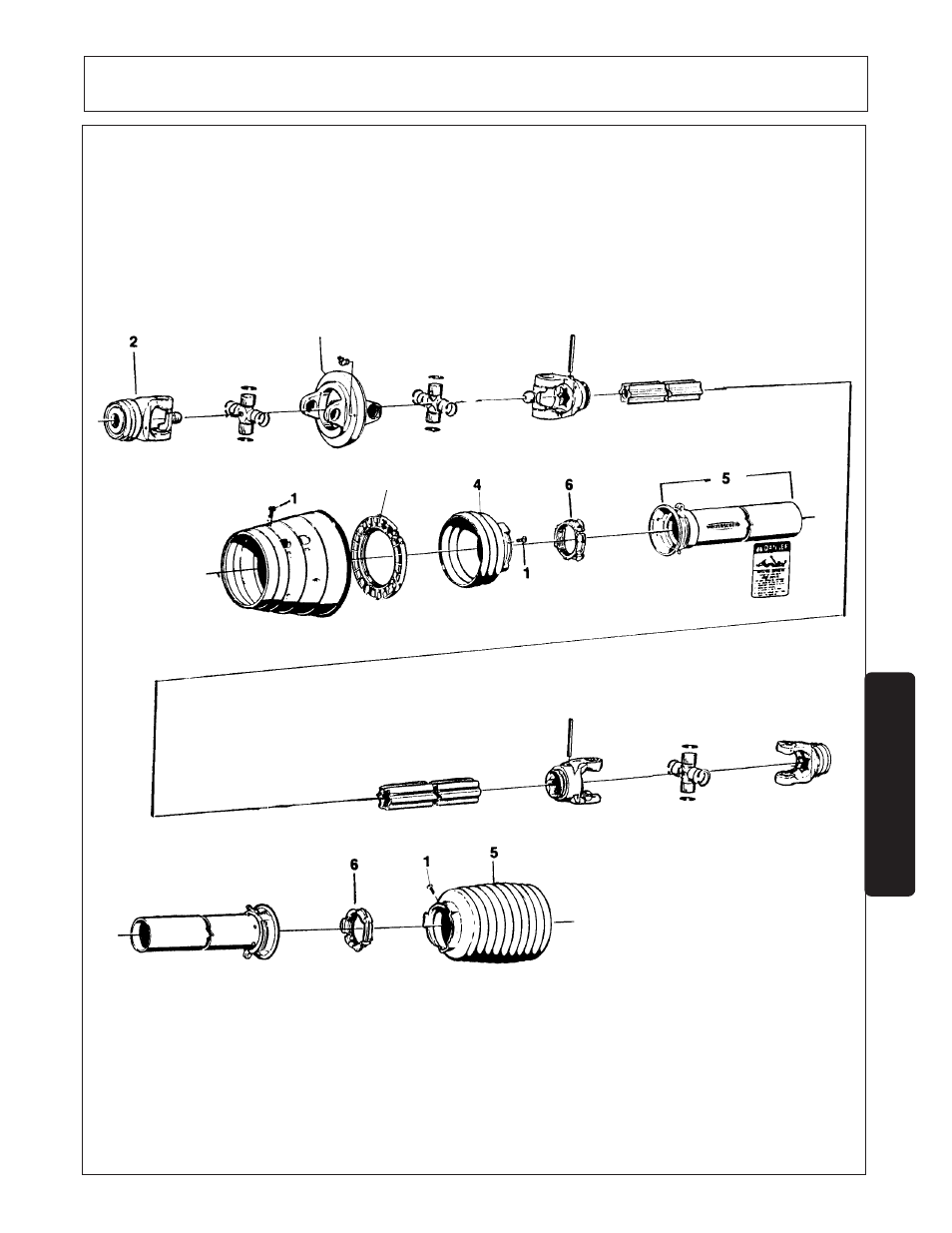

MAIN CV DRIVELINE SAFETY SHIELD (FIGURE 7)
1. To remove Outer CV Cone remove the 6 screws (#1) from shield cone. Remove cone forward over
yoke (#2). Shield bearing (#7) is split and can be removed by spreading and removing from groove in
CV Body (#3).
2. To remove Shields over telescoping Members remove the screws (#1) from cone (#4 or #5). Twist
cone (#4 or #5) until slot openings in cone align with tabs on bearing (#6). Pull on shield tube and
assembly will disengage from bearing. Shield bearing is split and can be removed by spreading and
removing from groove in yoke.
