Location of Controls
References

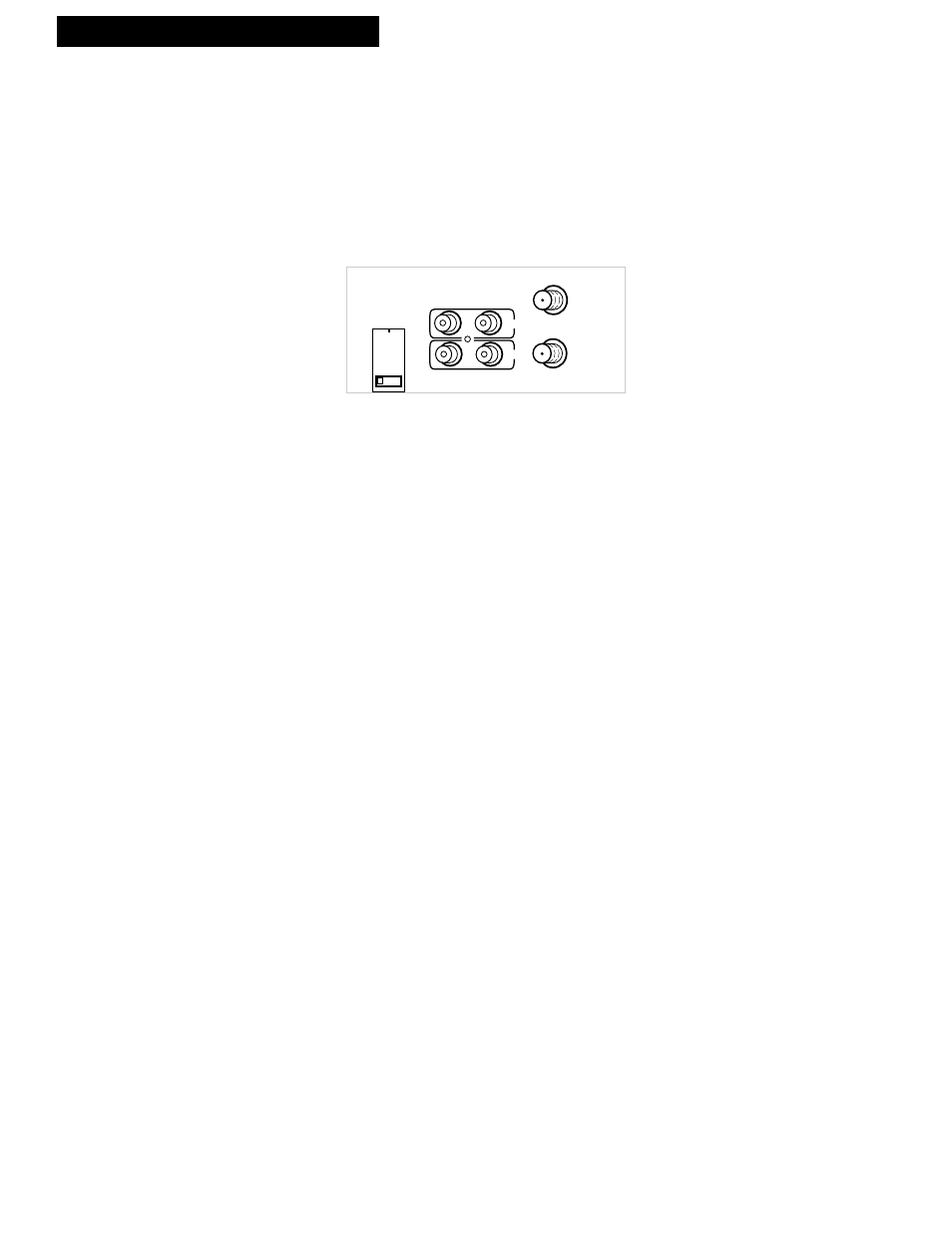

Back Panel
CH3 CH4 Switch
Selects the channel to which you will tune the TV
to see the VCR picture if you connect the VCR
using one of the basic hookups.
ANT. (Antenna) IN Connector
Receives the signal from an antenna or cable
system that is attached to this connector.
RF OUT Connector
Passes signal to TV using the cable supplied.
VIDEO and AUDIO IN Jacks
Receives signals from another component, like a
VCR or camcorder, when it is connected to these
jacks. Use
INPUT or channel number 0,0 to
select VID1 in the VCRÕs display panel.
VIDEO and AUDIO OUT Jacks
Sends signals from VCR to another component,
like a TV monitor or VCR, when it is connected
to these jacks.
RF OUT
ANT. IN
CH.
3 4
AUDIO VIDEO
OUT
IN
