1. Outline
The M3T-DIRECT100S is an accessory tool for connecting
an emulator probe and the target. Its dimensions are the same
as those of the 100-pin 0.65-mm-pitch QFP (23 x 17 mm) IC
packages (100P6S-A and 100P6S-E).
2. Package Components (See Figure 1)
(1) M3T-DIRECT100S main unit..........x1
(2) M3T-DIRECT100S User's Manual (This manual)
3. Specifications
Table 1 Specifications
4. Usage (See Figure 2)
The M3T-DIRECT100S can be used for debugging by
mounting it on the target system and connecting to an
emulator. Before using the M3T-DIRECT100S, be sure to
read "8. Precautions" on page 4.

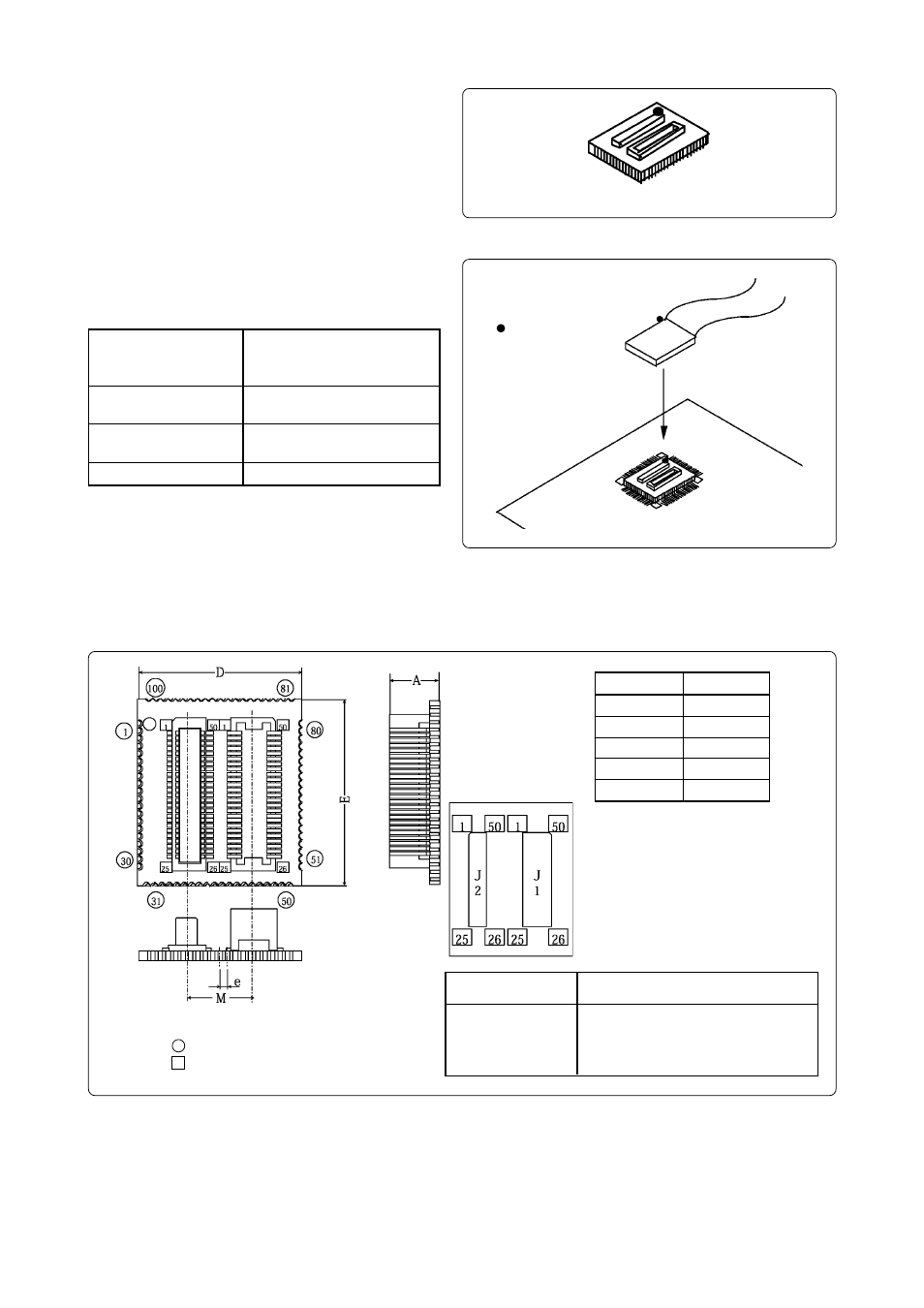

Figure 1 Package component
M3T-DIRECT100S main unit
5. External Dimensions of the M3T-DIRECT100S
Figure 3 External dimensions of the M3T-DIRECT100S
Emulator
M3T-DIRECT100S
Figure 2 Usage
Upper connector J1:
AXN650585P
(made by Matsushita Electric Works, Ltd.)
Upper connector J2:
AXN550045P
(made by Matsushita Electric Works, Ltd.)
1 : Pin No. of the M3T-DIRECT100S
1 : Pin No. of the upper connector
Board
Upper connector
(J1, J2)
Material: Glass epoxy board
Material: Heat tolerant resin (body)
Copper alloy (post, contact)
Plating: Nickel-based gold plating
: Position of No. 1 pin
Be sure to align the pins. Applicable package
Max. permissible
current
Insertion/removal
iterations of connector
Insulation resistance
100P6S-A
100P6P-E (formerly 100P6S-E)
(100-pin 0.65-mm-pitch QFP
200 mA, 5V
20 times guaranteed
100M Ω or more
Symbol Dimension (mm)
A 5.4
D 17.0
E 23.0
e 0.65
M 6.3
