1 SpeedTouch™ Installation
E-DOC-CTC-20031204-0011 v2.0
8

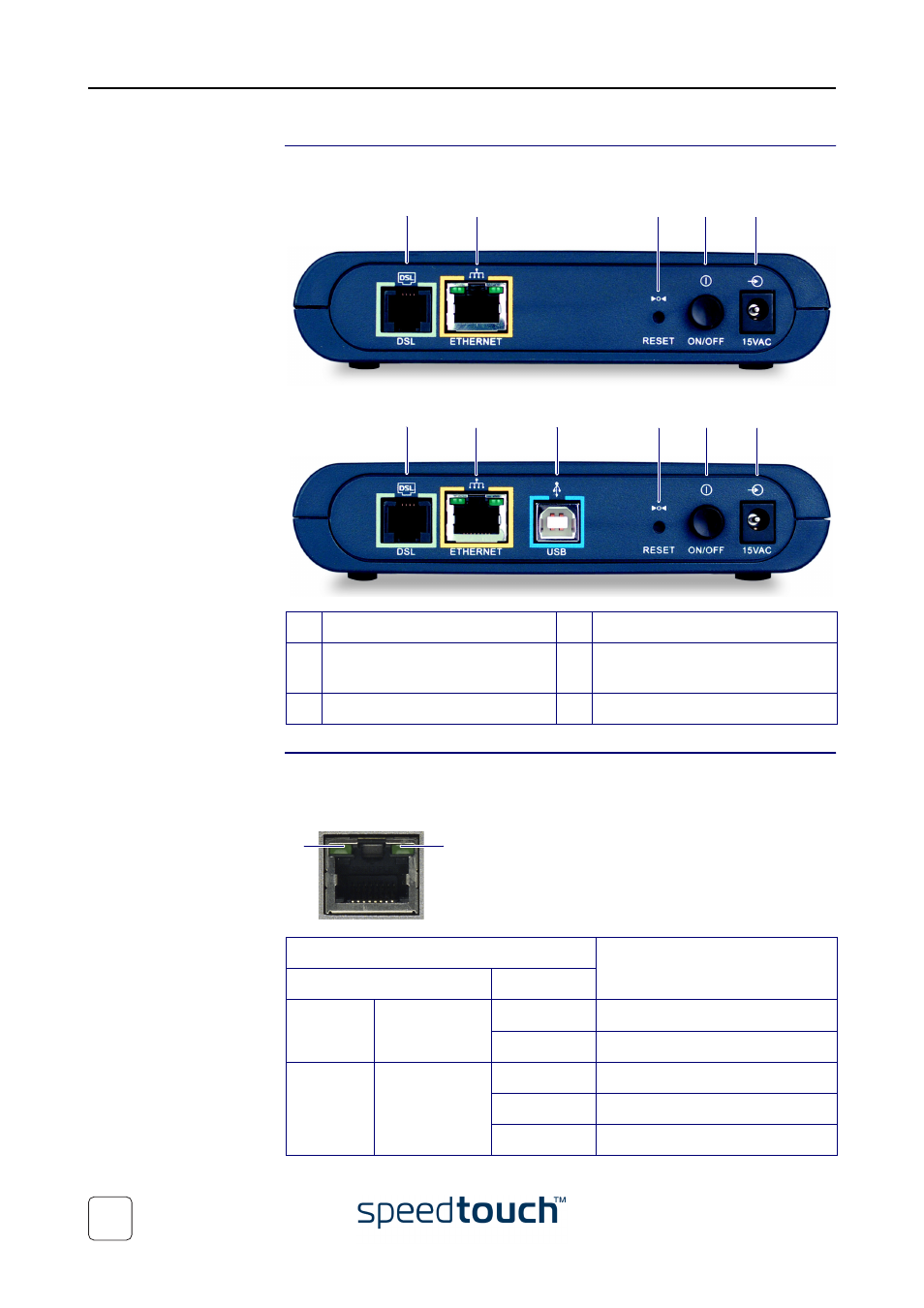

Back panel layout
Depending on the product you purchased, your SpeedTouch™ is equipped with:
•
A
single 10/100Base-T Ethernet port
:
•
A single 10/100Base-T Ethernet port and a USB port:
Ethernet port LED
functionality
The yellow marked Ethernet port on the rear panel has one LED to indicate the
connection integrity (activity). Depending on the SpeedTouch™ product you are using,
a second LED may be provided to indicate the 10/100Base-T selection:
A
DSL line port (marked grey)
D
Recessed Reset button
B
10/100Base-T Ethernet port
(marked yellow)
E
Power button
C
USB port (marked blue)
F
Power inlet
B
A
D
E
F
B
A
D
E
F
C
Indicator
Description
Name
LED Status
A
(Optional)
10/100Base-T
Off
10Base-T Ethernet connection.
On
100Base-T Ethernet connection.
B
Integrity
(Activity)
Off
No connection on this port.
On
Ethernet link up.
Flashing
Data is flowing from/to this port.
B
A
