I1200 Regency Wood Insert 15
Ground
Fan Fan
Ground
Green
Neutral
Live
White
Fan
Switch
Manual/
Auto
Switch
Black Black High
(Black)
Low
(Red)
Black
Fan Thermodisc
(normally open)
120V AC
60 Hz
FAN / BLOWER

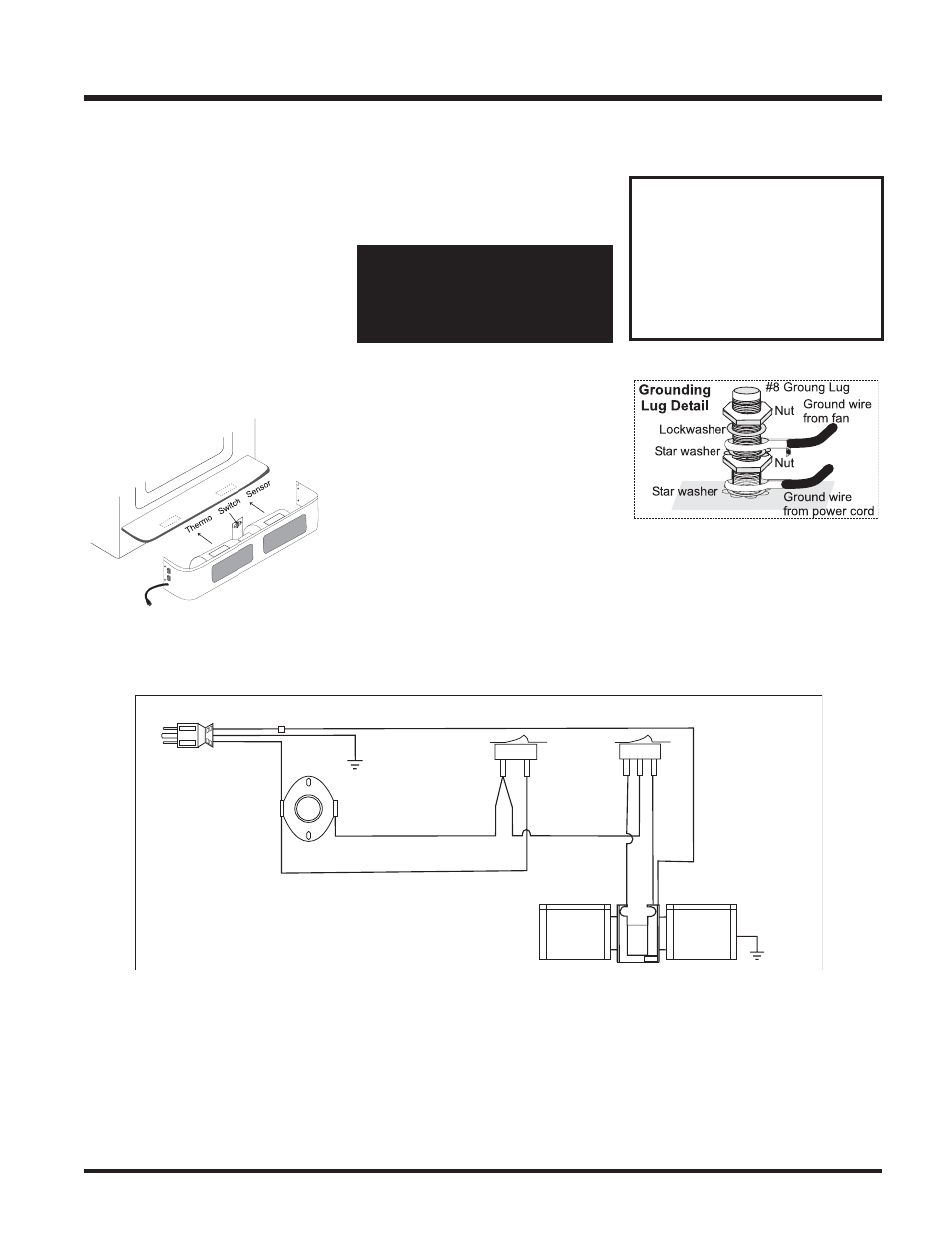

Blower / Fan Wiring Diagram
Your fan should only be installed once the unit
is in place in order to prevent any damage to
the fan.
1) Align the fan support with the offset clip on
the bottom of the ashlip.
2) Slide the supports into the clips. The tension
holding the clips in place may be adjusted by
increasing or decreasing the offset spacing
of the clips.
3) Ensure that the power cord is not in contact
with any hot stove surfaces.
CAUTION: Label all wires prior
to disconnection when servic-
ing controls. Wiring errors can
cause improper and dangerous
operation.
WARNING:
Electrical Grounding Instructions
This appliance is equipped with a
three pronged (grounding) plug for
your protection against shock hazard
and should be plugged directly into
a properly grounded three-prong
receptacle. Do not cut or remove the
grounding prong from this plug.
Do not turn fan ON until your insert has
reached operating temperature or at least
30 minutes after starting fi re.
INSTALLATION
