Power Up Mode
Test different options to turn on the display. From the Advanced submenu, press the ▼
soft key to select Power Up Mode and then OK, as shown below.
Press either ◄ or ► soft key to select the mode.
Press the Set soft key to set the power-up time and exit the dialog box.

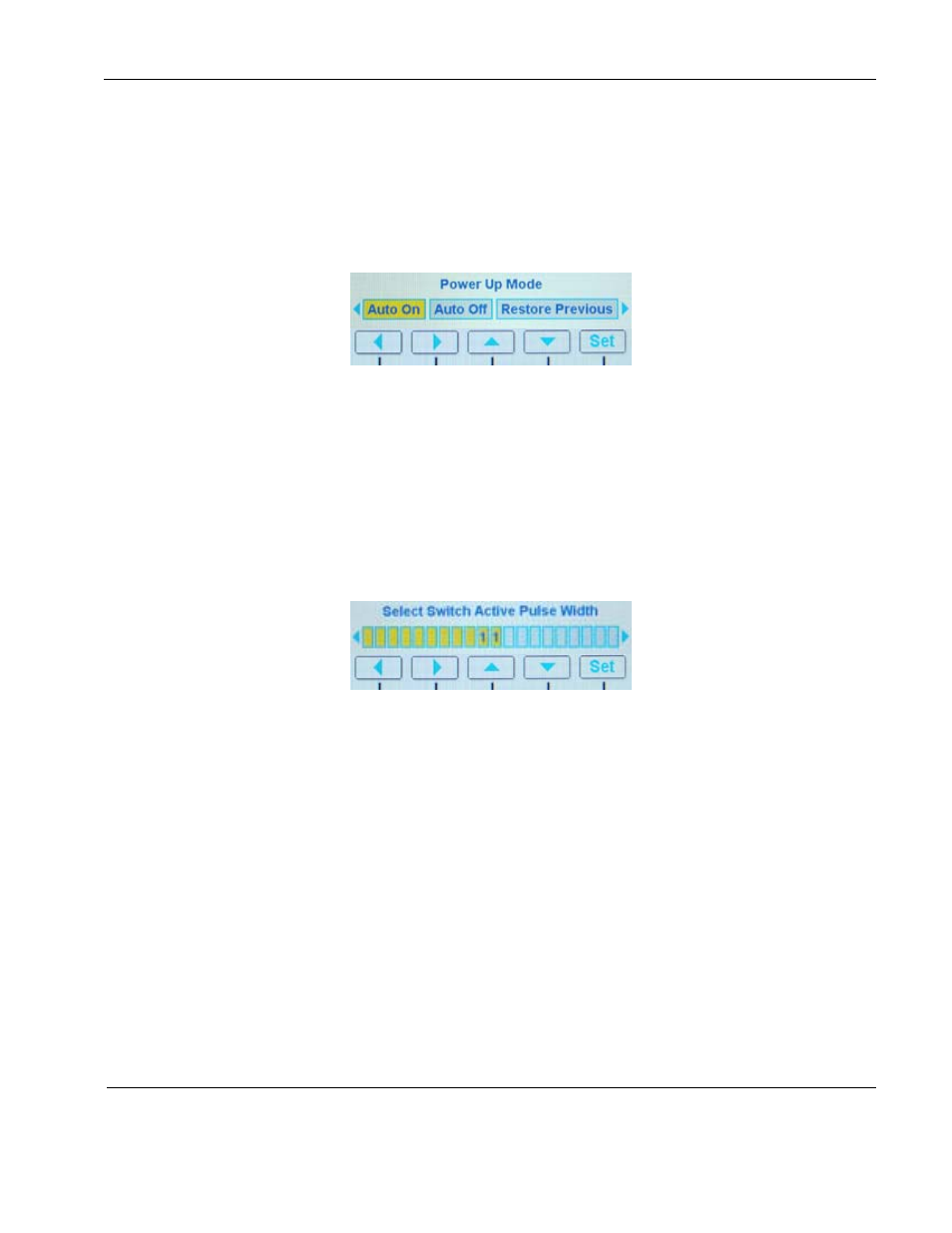

Figure 24 Power Up mode options and soft keys
Select Switch Active Pulse Width
Test different lengths of the source select signal. From the Advanced submenu, press the
▼soft key to choose Select Switch Active Pulse Width and then OK, as shown below.
Press the ◄ soft key several times to decrease the width speed. Press the ► soft key
several times to increase the width speed.
Press the Set soft key to set the timing and exit the dialog box.
Figure 25 Select Switch Active Pulse Width settings and soft keys
