Brightness
Press the OK soft key to open the Brightness screen, as shown below, and adjust the
picture brightness.
Press the ◄ or the ► soft keys to change the image on the LCD accordingly.
Press the Set soft key to set the brightness and exit the dialog box.

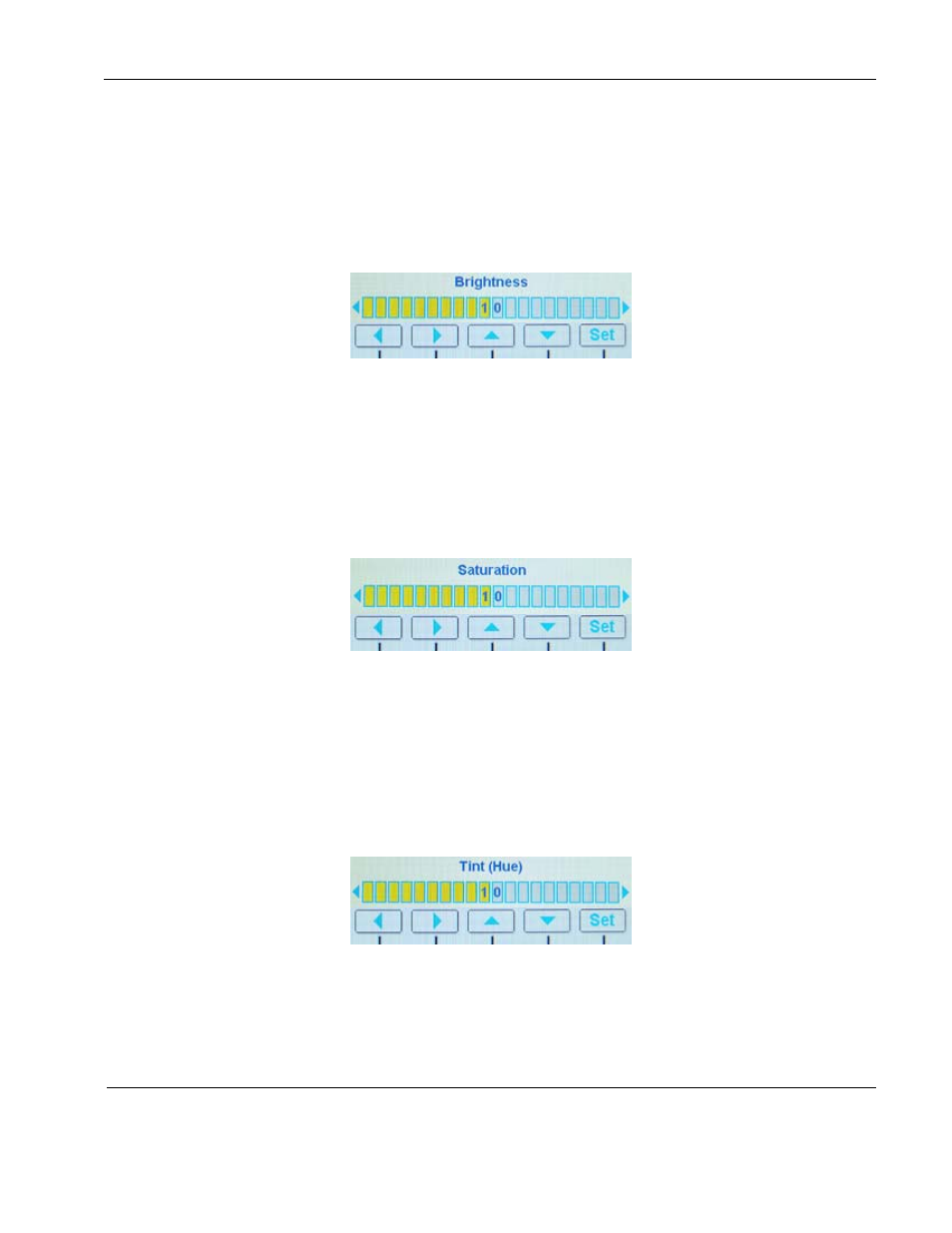

Figure 18 Picture brightness settings and soft keys
Saturation
To adjust the color saturation, press the Menu button and then select Image
AdjustmentsÆSaturation using the soft keys.
Press the ◄ or the ►soft keys to change the color levels.
Press the Set soft key to set the saturation and exit the dialog box.
Figure 19 Color saturation settings and soft keys
Tint (Hue)
To adjust the color hues, press the Menu button and then select Image Adjustments
Æ Tint (Hue) using the soft keys.
Press the ◄ or the ►soft keys to change the color hues in the image.
Press the
Set soft key to set the tint and exit the dialog box.
Figure 20 Tint settings and soft keys
