Regency Wraps P36-LPG4 - Manual (Page 35)

Regency ® P36-4 Gas Log Fireplace 35
34
BR IC K PAN EL SET
31
30
21
20
14
22
24
28
27
4
3
7
6
8
23
23
30
17
D O O R S & LO U VER S PLEASE
33
35
R EFER SEPAR ATE SEC TIO N
1
14 2
15
21
37
36
24
10
9

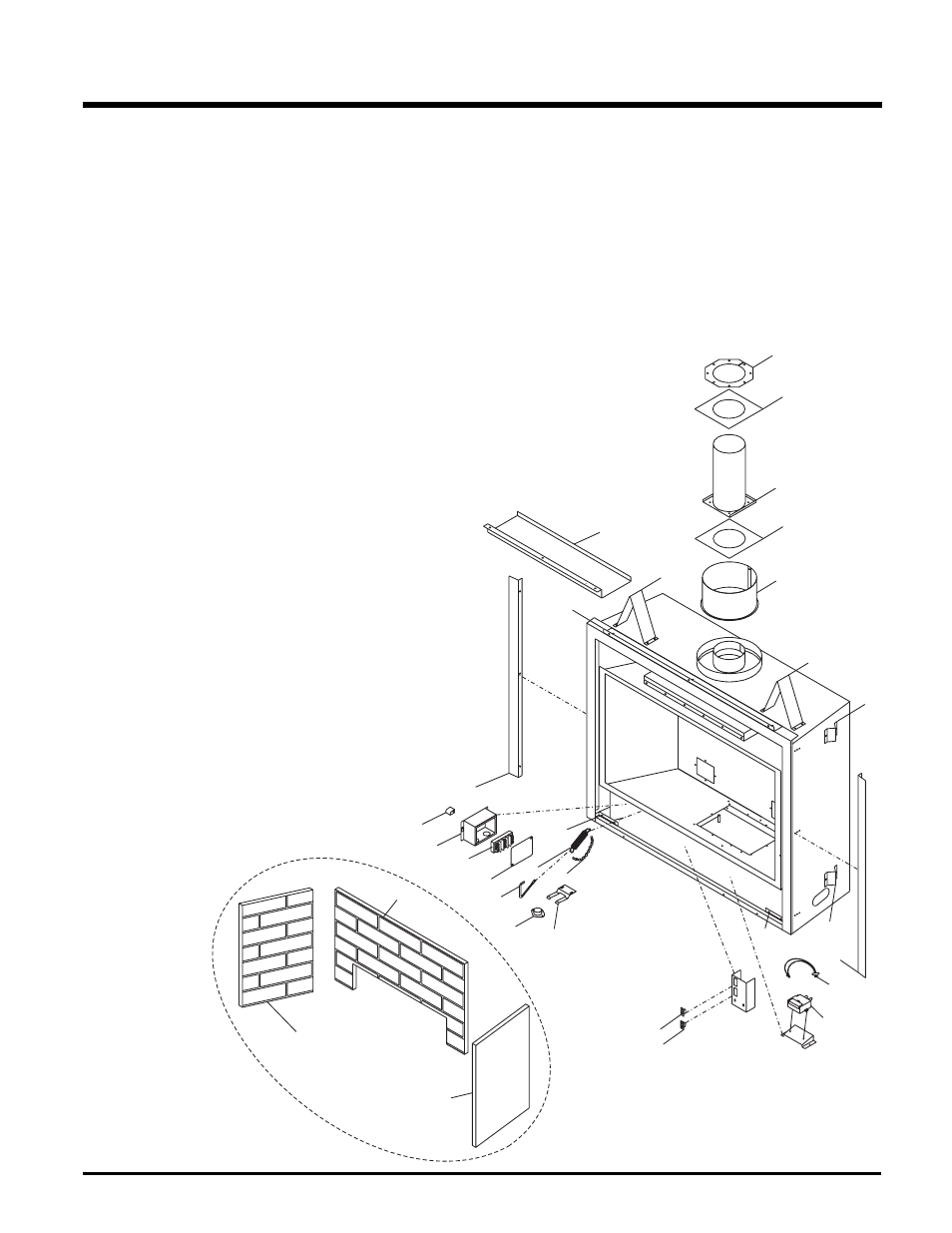

PARTS LIST
MAIN ASSEMBLY
Part # Description
1) 910-142 Thermodisc-Fan Auto ON/OFF
2) * Thermodisc Bracket
3) 948-045 Chain
4) 948-025 Spring
6) 510-125 Terminal
Block Housing
7) 910-006 Terminal Block
8) 510-126 Terminal Block Cover
9) 910-140 Fan Switch HIGH/OFF/LOW
10) 910-246 Burner Switch ON/OFF
12) 910-169/P Fan Motor
910-520 Wire Harness
910-714 Power Cord (240 V)
14) 510-026 Hinge Bracket - Left/Right
15) 948-253 Door Handle
17) * Wire Holder Clip
20) 510-033 Top Nailing Strip
21) 510-064 Side Nailing Strip
22) 510-153 Baffl e Plate
23) 510-011 Standoff - Top
24) 511-044 Standoff - Side/Back
27) * Outer Flue Collar
28) * Inner Flue Collar Assembly
30) * Gasket for Flue Collar
31) * Flue Mounting Plate
513-901 Brick Panel Set - Standard Brown
513-902 Brick Panel Set - Standard Red
513-903 Brick Panel Set - Herringbone Brown
513-904 Brick Panel Set - Herringbone Red
33) * Brick Panel - Back
34) * Brick Panel - Left
35) * Brick Panel - Right
36) 910-073 Spark Generator Battery Holder
37) 910-074 Spark Generator Switch c/w Wire
511-031 Brick Clip (each)
918-538 Manual
513-968 Conversion Kit - NG to LPG
