INSTALLATION
FLUEING ARRANGEMENTS - VERTICAL TERMINATIONS
SIMPSON DURA-VENT CO AXIAL FLUE GS SYSTEM
(LPG & NG)
The P36 is approved for a 23 ft. (7.0m) vertical, with a maximum 12 ft. (3.7m) horizontal offset
using two 90
o
elbows (two 45
o
elbows equal one 90
o
elbow) with Simpson Dura-Vent Co Axial
Flue GS fl ue systems for LPG and NG, as per diagram 1.
The P36 is approved for a 37 ft. (11.3m) straight vertical, including a 20" (0.5m) horizontal offset
using two 90
o
elbow (two 45
o
elbows equal one 90
o
elbow) with Simpson Dura-Vent Co Axial
Flue GS fl ue systems for LPG and NG, as per the diagram 2.
• Flue must be supported at offsets
• Maintain clearances to combustibles as listed in section "Clearances."
Note: Must
use
optional
fl ue adapter when using Simpson Dura-Vent pipe
(Part
#
510-994).
Note: Regency
®
Co Axial Flue System (Flex) is only approved for horizontal
terminations.

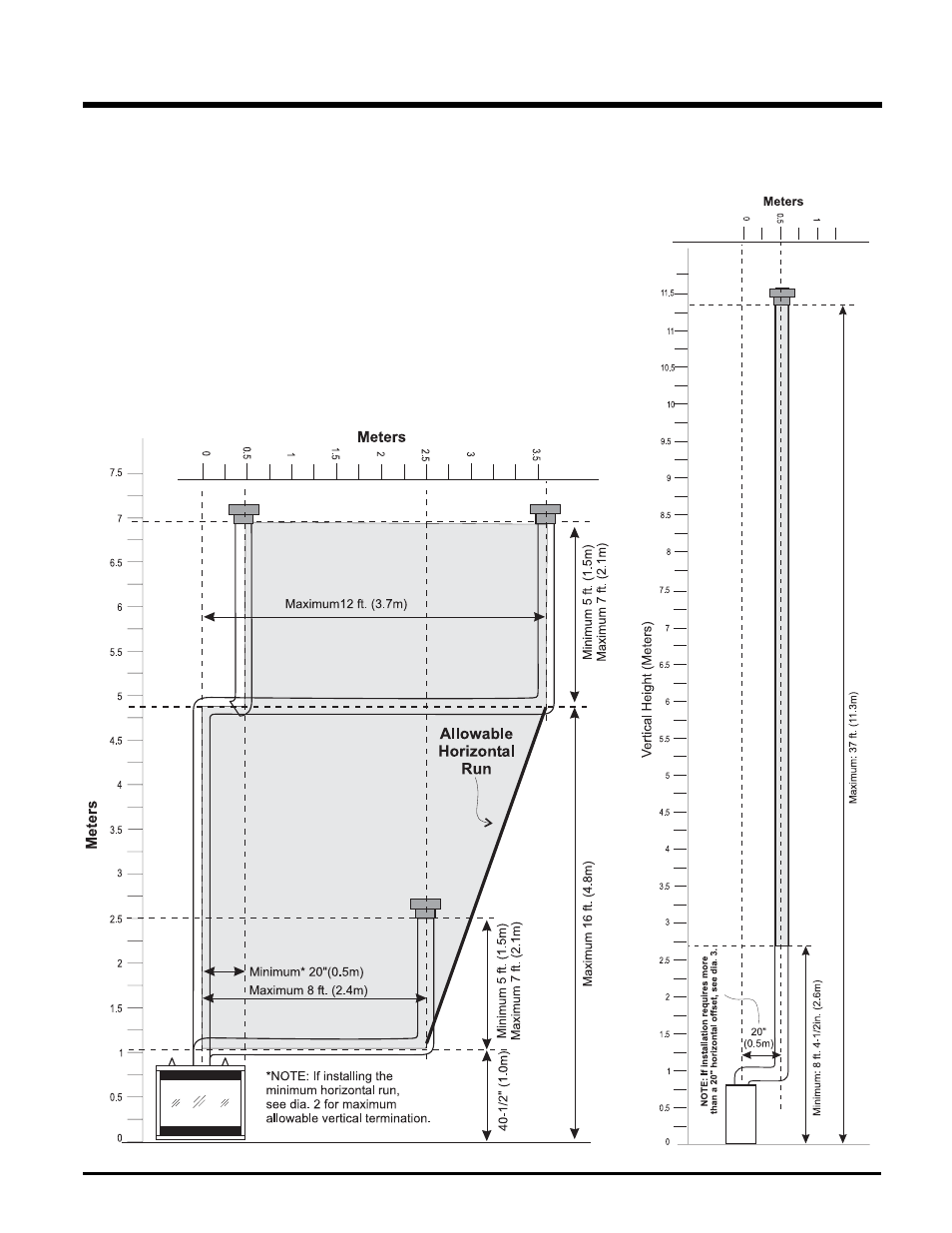

Diagram 1
Diagram 2
