410X 19

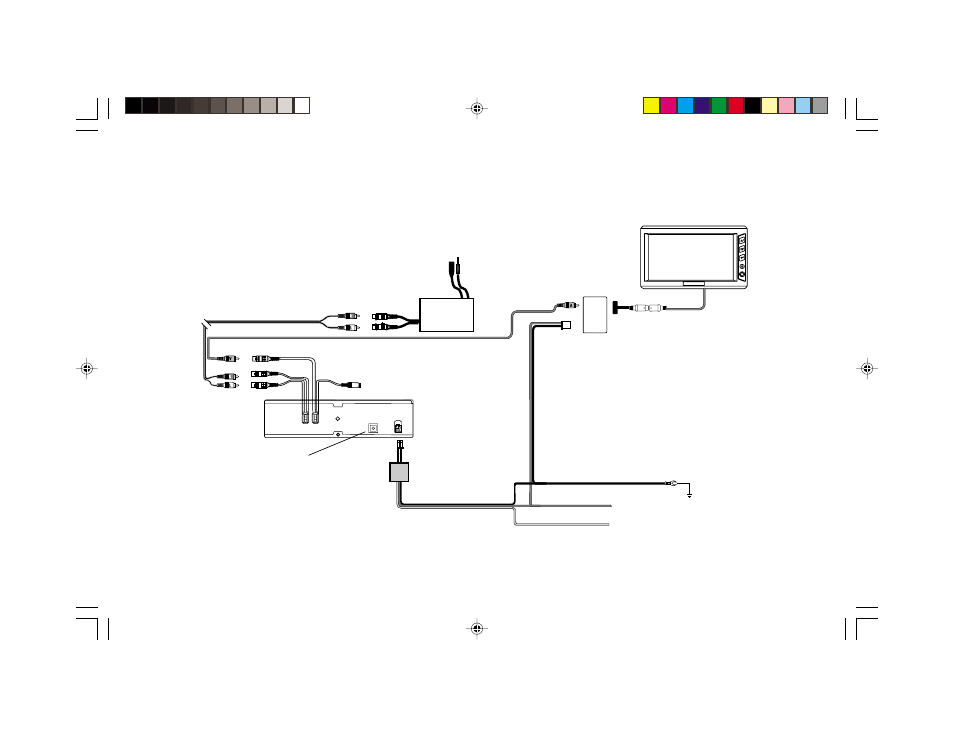

410X in a typical system
Black - Ground
Power Harness, 410X
To Radio and
Antenna
FM Mod
Red
+12V Accessory
Yellow
+12V Main power
Digital
output
Audio
L and R
Output
(White - L,
Red - R)
Video Output (Yellow)
Optional
External
IR input
Fuse/
filter
box
Monitor
Power Supply Module for Monitor
Power Harness, Monitor
