14 410X
4. Installing the 410X

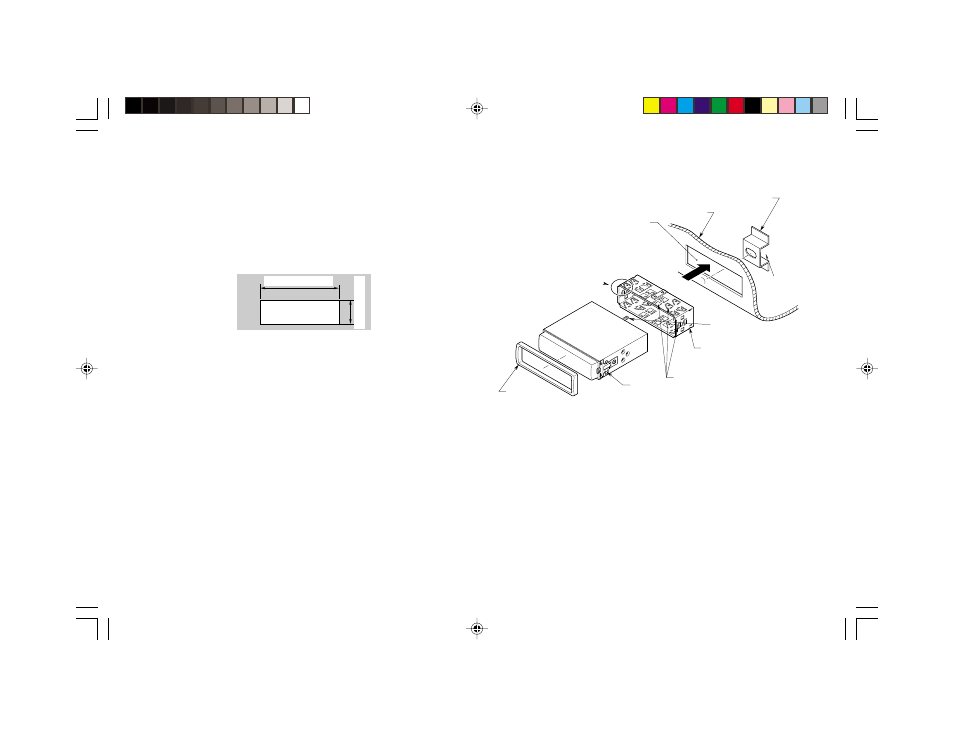

Installing into the DIN Sleeve
First, verify that the opening you will be mounting the 410X
into will accommodate the mounting sleeve.
Sleeve opening dimensions
Hole
7-3/16" (182 mm)
2-1/16" (53 mm)
Note:
• Some car models require special mounting kits for proper installation.
Consult your Rosen/necvox dealer for details.
1 Place the sleeve into the instrument panel opening. Ensure
a tight fit.
2 Bend the tabs of the sleeve inward as shown to lock the
sleeve into place.
3 Wire the power harness, make all connections to the 410X
(see “Wiring the 410X”), and plug in the power harness.
4 Gently insert the 410X into the mounting sleeve until it
locks into place with a ‘click.’
5 Clip the trim ring into place.
Hole
Rear fastening hole of vehicle,
Instrument panel
Tabs
Trim ring
or backstrap
Nut and washer
Rear mounting bolt
Bend tabs to
lock sleeve into place
DIN mounting sleeve
DIN sleeve clip
