2 Remove the clips on the sides of the 410X. 3 Mount the unit to the factory radio brackets, and bolt the
brackets to the dashboard. Reassemble the dash.
Note:
• In some cases the factory trim panel may require some slight
trimming, or there may be a slight gap that requires filling.

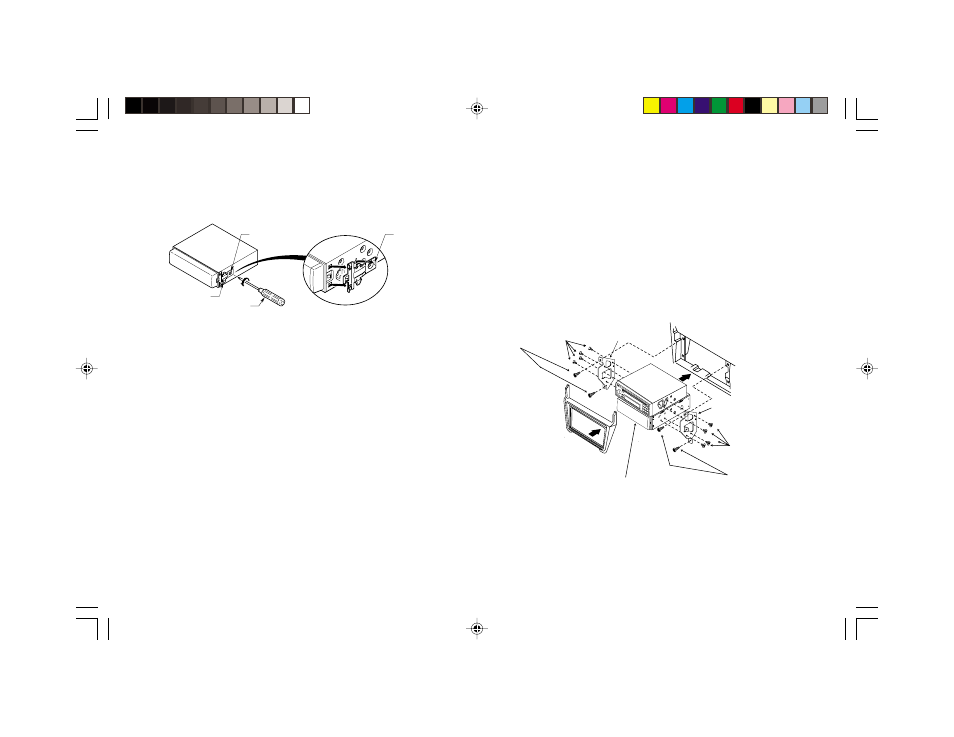

410X in place
of factory pocket, below
radio
Factory
trim
bezel
Factory
Radio
Mounting
Bracket
Dashboard
Factory Radio
Mounting Bracket
Screw bracket
to 410X
Factory Trim Screws
Factory
Trim
Screws
Screw bracket
to 410X
OEM or
aftermarket
Radio
2-Screw
Spring clip
Screwdriver
DIN sleeve spring clip
