9
I
NSTALLATION
• 2/4 CH. SWITCH down position to set to 4 CH.
• Gain (Front & Rear) - is set independently to suit application.
• Crossover (Front & Rear) - is set independently to suit application.

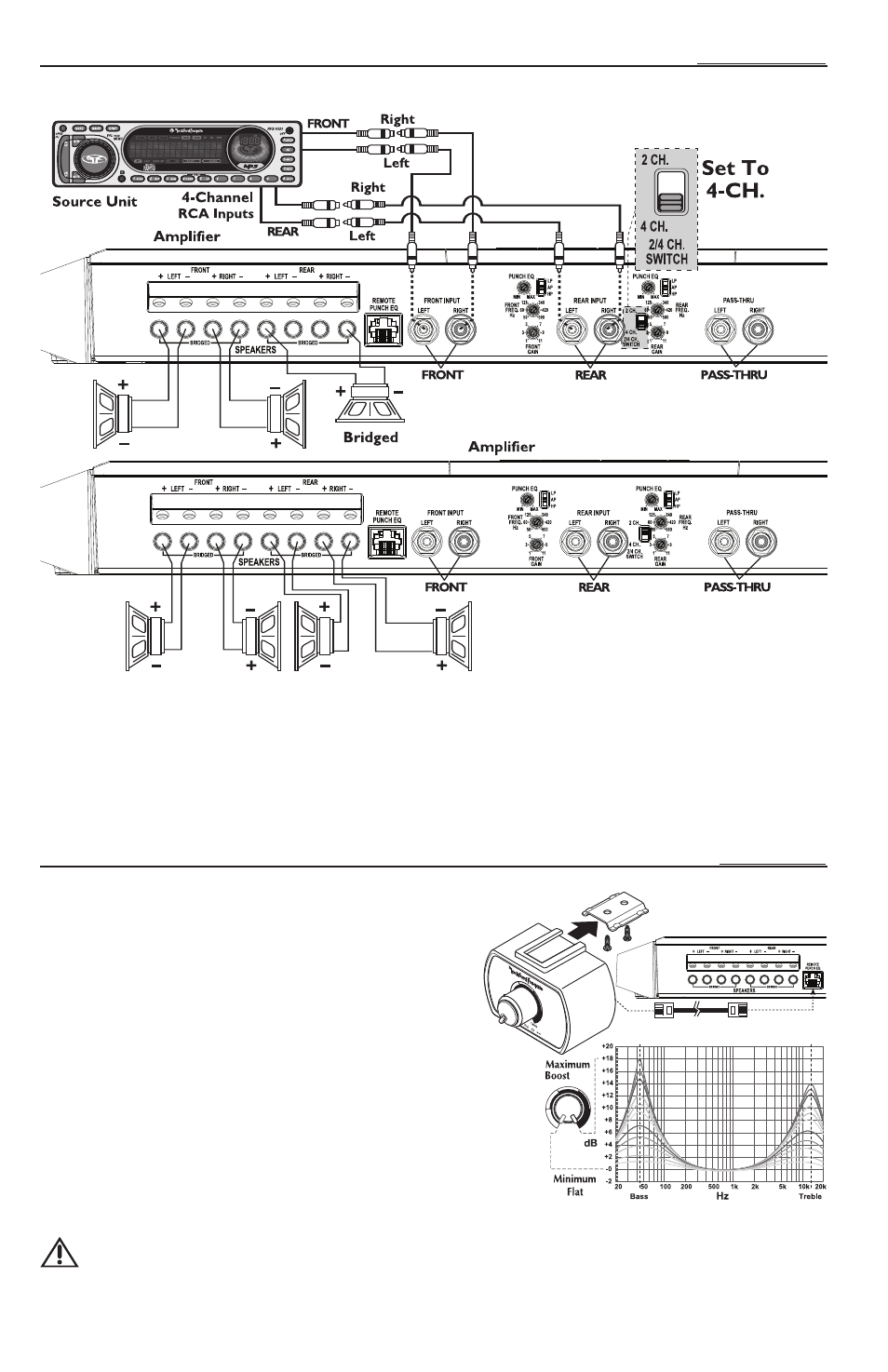

4-Channel Wiring
REMOTE PUNCH EQ (Optional)
NOTE:
Previous (prior to 2007) Punch Bass and Para-Punch
remotes will not work with these amplifiers.
NOTE
: Use the instructions that came with the
remote for a variety of mountings that fit
your preference.
Quick Install
1. Using the screws supplied, install the mounting clip.
2. Slip the remote onto the mounting clip until it snaps into place.
3. Route and connect the cable to the remote and amplifier.
Operation
4. Operation works the same as Punch EQ, see next page.
NOTE
: Connecting the optional remote overrides the Punch EQ rear channel control on the amplifier.
CAUTION
:Overexcursion and subsequent damage may occur at high levels of boost.
O
PERATION
