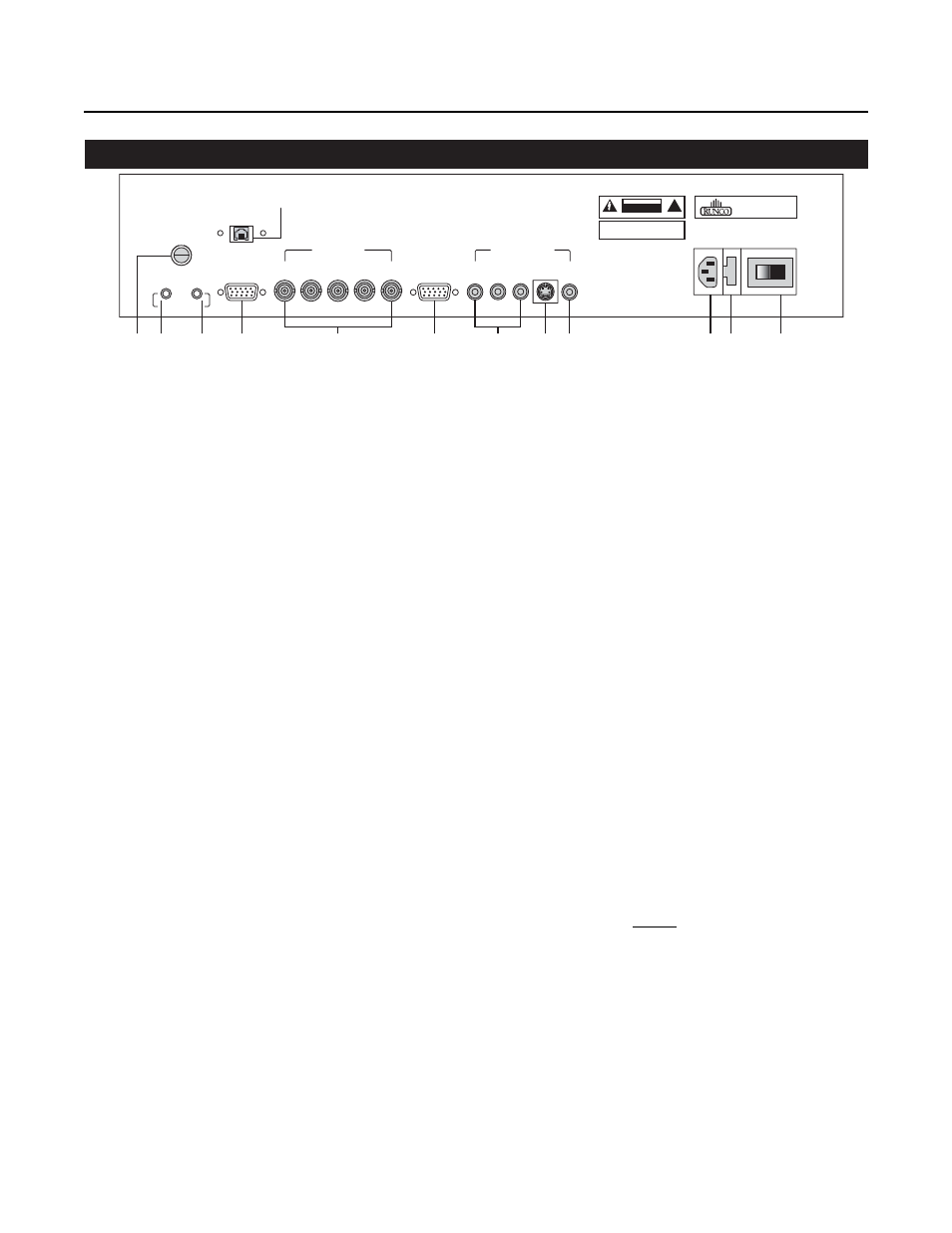

Rear Panel

12V TRIGGER

12V FUSE

RGB OUTPUT

VIDEO INPUTS

RS-232 IN

MADE IN USA

AC 100-240V, 50/60 Hz, 15W

MASK

SCREEN

RGB/COMPONENT

COMPOSITE

V

H

B

G

R

Y

Pr

Pb

S-VIDEO

MADE IN USA

RUNCO INTERNATIONAL

HAYWARD, CA

CAUTION:

TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER. NO USER-
SERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE CENTER.

AVIS: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

!

WARNING:

TO REDUCE THE RISK OF FIRE

OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE.

6

7

8

9

10

4

2

3

1

5

11 12

13

COMLINK OUT

12

1. 12v

FUSE

This fuse protects the 12v outputs from the MASK and SCREEN jacks.
(Screen Fuse: 5mm x 25mm, AGC, 0.5A, 250V, Fast Blow)

2. MASK

This is a 12V output that can be used to trigger curtains, lifts, etc. (1/4A maximum load).

3. SCREEN

This is a 12V output that can be used to trigger curtains, lifts, etc. (1/4A maximum load).

4. RS-232

IN

This is for systems using serial (RS-232) to control the PFP Controller.
Please refer to page 27 for RS-232 protocol and information.

5. COMLINK OUT

The output of this jack must be connected to the ComLink input of the VX-1000ci. If this is not connected, neither
the PFP Controller or the Projector can operate and the power indicator on the front panel will stay yellow.

6. RGB

OUTPUT

This is the main output of the PFP Controller. The RGB Signal goes directly to the Projector. If
Component is used through the RGB/Component, then only the R (Pr), G(Y) and B(Pb) jacks will be active.
Individually, the jacks are: V=vertical sync, H=horizontal sync, B=Blue, G=Green, R=Red.

7. RGB/COMPONENT

Anything input to this port will by-pass the processing of the PFP Controller and be sent straight

to the display. This is useful for HDTV signals which do not require processing.

8. COMPONENT INPUT (480i ONLY)

This is the input for Component Video from sources such as DVD players.

Note: The component output from a DTV decoder or a progressive-scan DVD cannot be used with this port;

it must be used with the

RGB/Component

port.

9. S-VIDEO INPUT

This is the input for S-Video from sources such as satellite receivers, S-VHS VCR’s and DVD players.

10. COMPOSITE VIDEO INPUT

This is the input for Composite Video from sources such as laser disc players, VCRs and other misc. sources.

11. POWER INPUT

Plug in Main Power here.

12. 115 VAC FUSE

13. MAIN POWER SWITCH

This is the main AC Input fuse (.5A/250V).

Disconnects or applies main power to the Controller.
