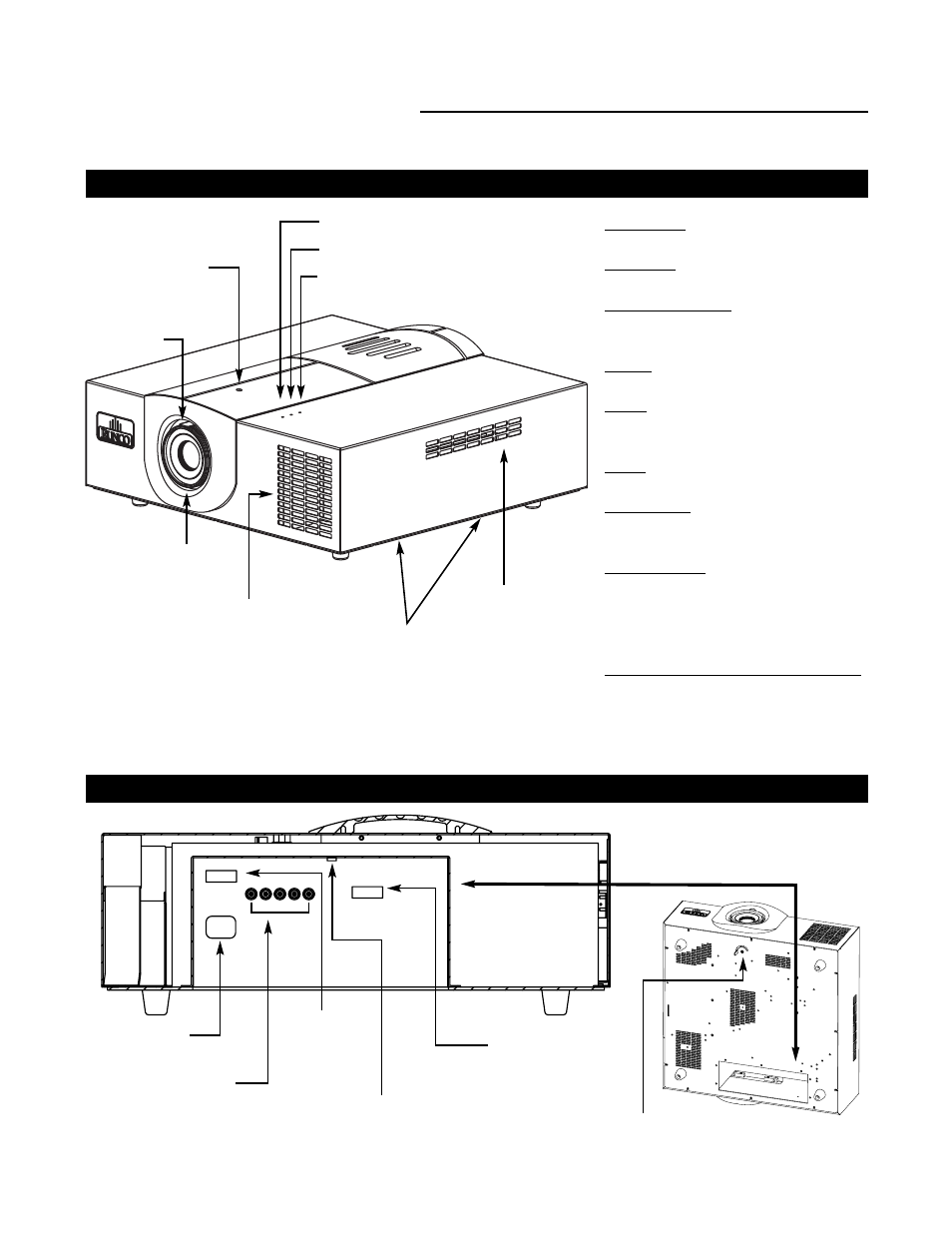

Projector Description
Input Panel
Top View
Exhaust Vents
Vertical Lens Shift
Zoom Tab
Focus Ring
Intake Vents
Power
Lamp
Temp
Focus Ring: Turn this ring to focus
the image.
Zoom Tab: Turn this tab to make the
image larger or smaller.
Vertical Lens Shift: Using the provided
adjustment tool, turn this to move the
lens up and down.
Power: Led is red when unit is in
standby, blue when it is in operation.
Lamp: When the lamp is on, this LED
is blue. When the lamp is off, this LED
is off.
Temp: If the Projector has overheated
and shut down, this will light red.
Intake Vents: This is where cooler air
enters the Projector. Ensure that it is
never blocked or overheating will result.
Exhaust Vents: This is where hot air
exits the Projector. This air can be quite
hot. Ensure that there are no heat-sensi-
tive objects near it and that it is never
blocked.
Reflectance Volume Regulation (RVR):
Allows adjustable iris control of contrast
ratio versus light output for the best
imaging performance.
AC Power In
(100-240 VAC)
RGB Input
(from PFP Controller)
DVI-I IN
PC INPUT
ComLink
Connect the ComLink cable
from the PFP Controller here
Bottom Vents
Reflectance Volume
Regulation (RVR)
Service Reset
To be used by Authorized
Runco Service Technicians
