10

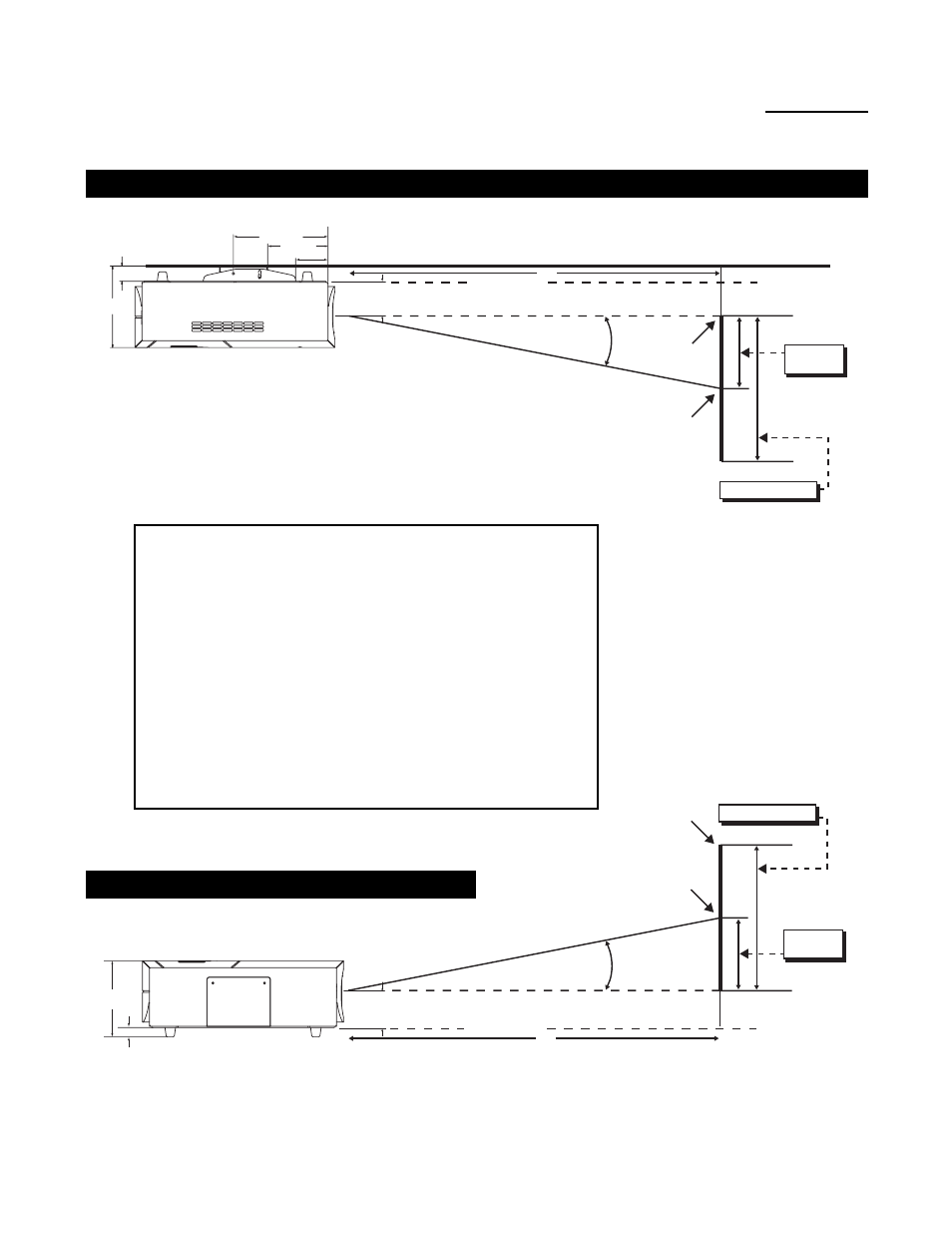

Projector Placement and Offset Information
Ceiling Mount Configuration
Screen Center
Screen Top
Projector Base
angle
B
A
Full Screen Length
Half Screen
Length
3.500
Base plate to center of lens
8.200
1.015
Screen Center
Screen Top
Projector Base
angle
B
A
Full Screen Length
Half Screen
Length
3.500
Base plate to center of lens
1.645
8.830
10.250
6.546
3.500
NOTE: These figures are
the same for both ceiling
and floor configurations.
Floor Mount Configuration
SCREEN __________ (H) x __________ (W)
B) THROW DISTANCE FOR 16 x 9 SCREENS:
Minimum: = (screen width x 1.85) = __________ inches
Maximum: = (screen width x 2.4) = __________ inches
C) VERTICAL OFFSET:
Distance between lens center and top edge of viewing area
(bottom edge for floor mount): Between 0 and (0 - screen height)
