Installation
24 Runco VX-1000d Owner’s Operating Manual
PRE
L
IMINAR
Y
Connect the DVI, RGBHV and RS-232 outputs of the DHD Controller to the
corresponding inputs of the VX-1000d; see Figure 3-6.

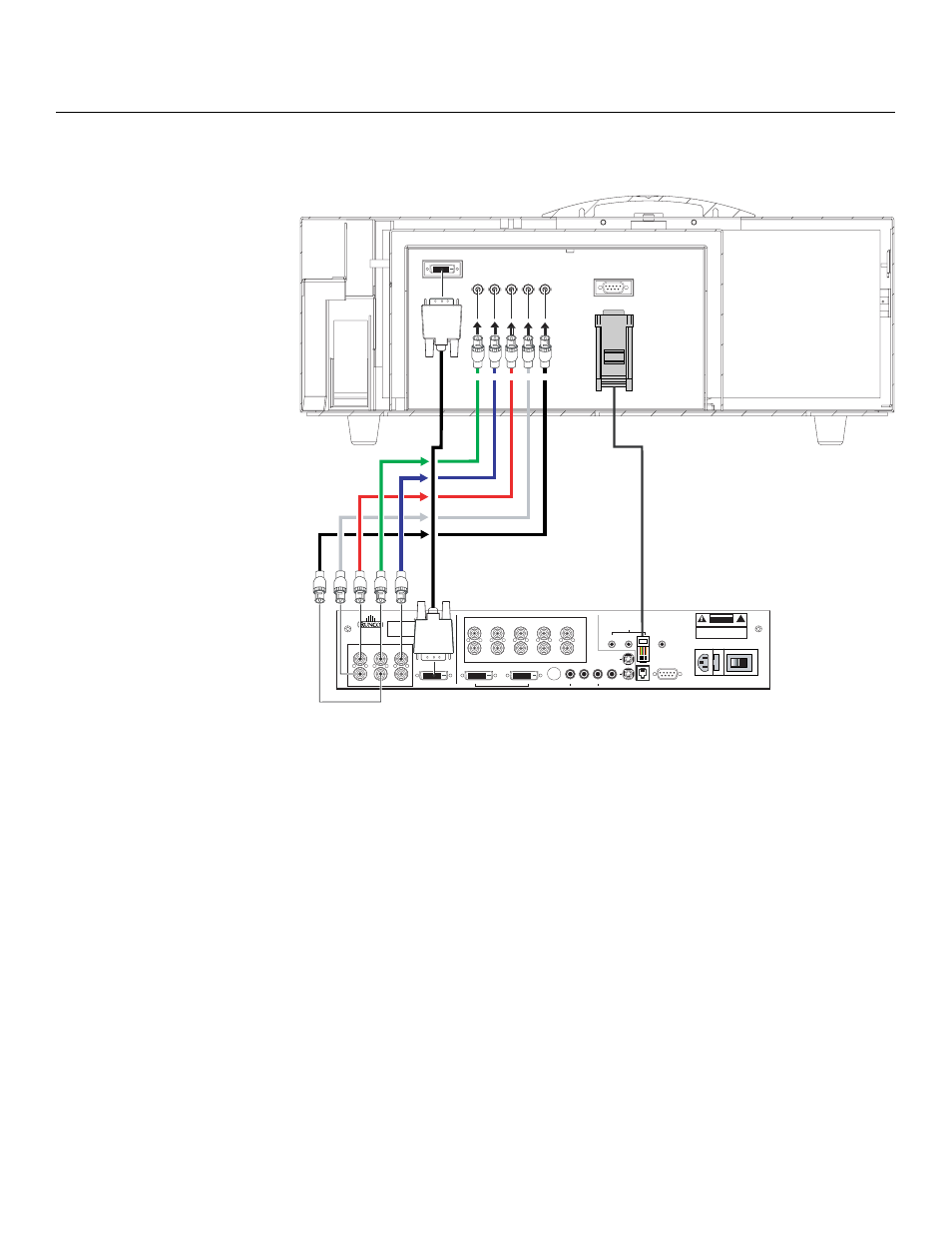

Figure 3-6. Connecting the VX-1000d to the DHD Controller
