Using the TWAIN Scanner Function
30
4
Placing on the Exposure Glass
Originals which do not fit into the
ADF, such as sheets with glued-on
parts, books, etc., can be placed direct-
ly on the exposure glass for scanning.
Note
❒ For details about the originals
which can be placed on the expo-
sure glass, see Copy Reference.
A
Lift the exposure glass cover or
the ADF.
Note
❒ Lift the exposure glass cover or
ADF for more than 30 degrees.
The opening/closing action
triggers the automatic original
size detection process.
B

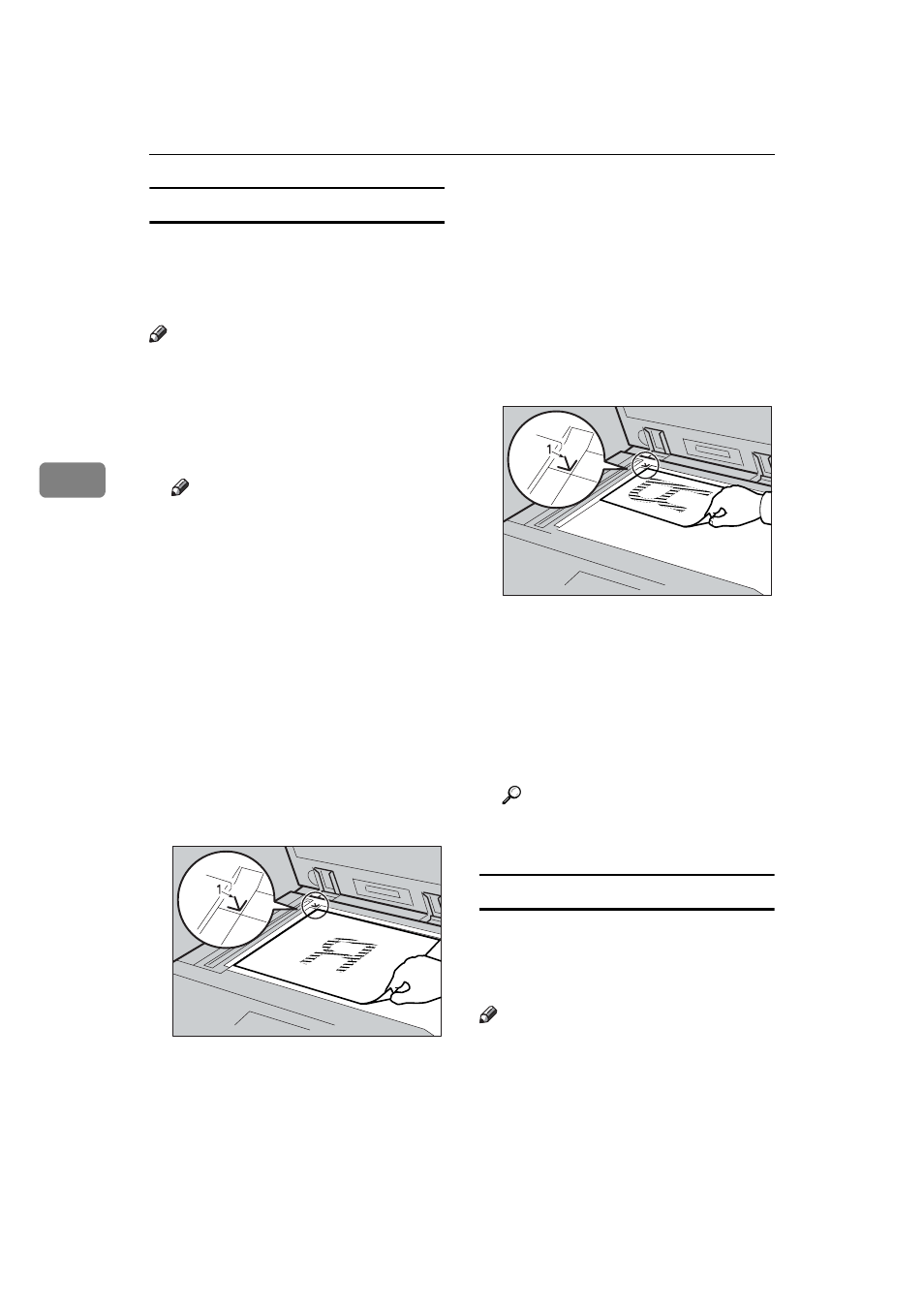

Place the original on the exposure
glass with the side to be scanned
facing down. Align the original
with the back left corner mark.
There are two original orientations.
❖ When placing the original so that
the top edge touches the rear of
the exposure glass
1. Positioning mark
❖ When placing the original so that
the top edge touches the top left of
the exposure glass
When using the machine as a
network TWAIN scanner, this
orientation is the standard set-
ting for the TWAIN driver. Nor-
mally, use this orientation for
placing originals.
1. Positioning mark
C
Lower the exposure glass cover or
the ADF.
D
Select the original orientation ac-
cording to the orientation of the
placed original.
Reference
p.29 “Specifying original orien-
tation and setting originals”
Placing in the Auto Document Feeder
The ADF allows you to place multiple
originals at one time. Originals placed
in the ADF can be scanned on one
side or both sides.
Note
❒ The duplex function is available
only when you have installed the
optional ADF capable of scanning
both sides of a sheet (ARDF).
