Calibration

Depth

To calibrate the depth functions:

1. With the User calibration entry screen displayed, press the

depth

key.

2. Referring to the User calibration - depth illustration, carry out the cal-

ibration procedure. Use the

depth

key to cycle from screen to screen

and the

trip

and

reset

keys to set the required values at each screen.

Depth units

You can set either FEET or METRES.

Depth offset

WARNING:
The use of incorrect offset values could result in misleading

depth information being displayed with a consequent risk
of running aground.

Depths are measured from the transducer to the sea bed. However, you
can use the depth offset screen to apply offsets to this distance, so that the
displayed depth reading represents either the depth from the keel or the

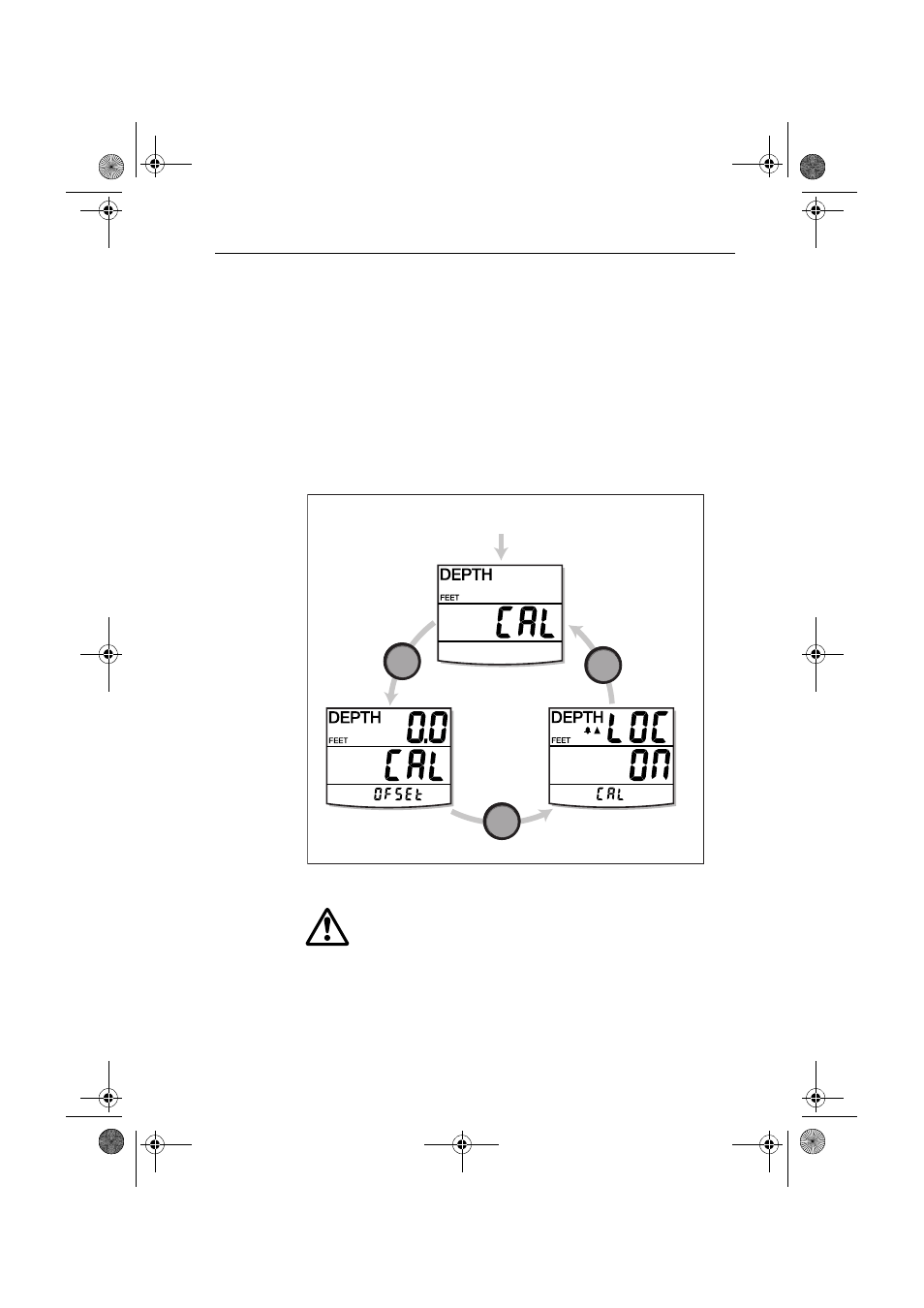

User calibration - depth

From User calibration

start screen

depth

Set depth

units

Set depth

offset

Shallow

alarm lock
