16 ST60 Tridata Instrument Owner’s Manual
EMC Installation Guidelines
All Raymarine equipment and accessories are designed to the best
industry standards for use in the recreational marine environment.
Their design and manufacture conforms to the appropriate
Electromagnetic Compatibility (EMC) standards, but correct installation
is required to ensure that performance is not compromised. Although
every effort has been taken to ensure that they will perform under all
conditions, it is important to understand what factors could affect the
operation of the product.
The guidelines given here describe the conditions for optimum EMC
performance, but it is recognized that it may not be possible to meet all of
these conditions in all situations. To ensure the best possible conditions
for EMC performance within the constraints imposed by any location,
always ensure the maximum separation possible between different items
of electrical equipment.
110mm (4.33in) 24mm
(0.95in)
15mm
(0.6in)
90mm (3.54in)
diameter
115mm (4.53in)
123mm (4.85in) 6.2mm
(0.25in)
35mm
(1.4in)
90mm (3.54in)
diameter
123mm (4.85in)
D5785-1

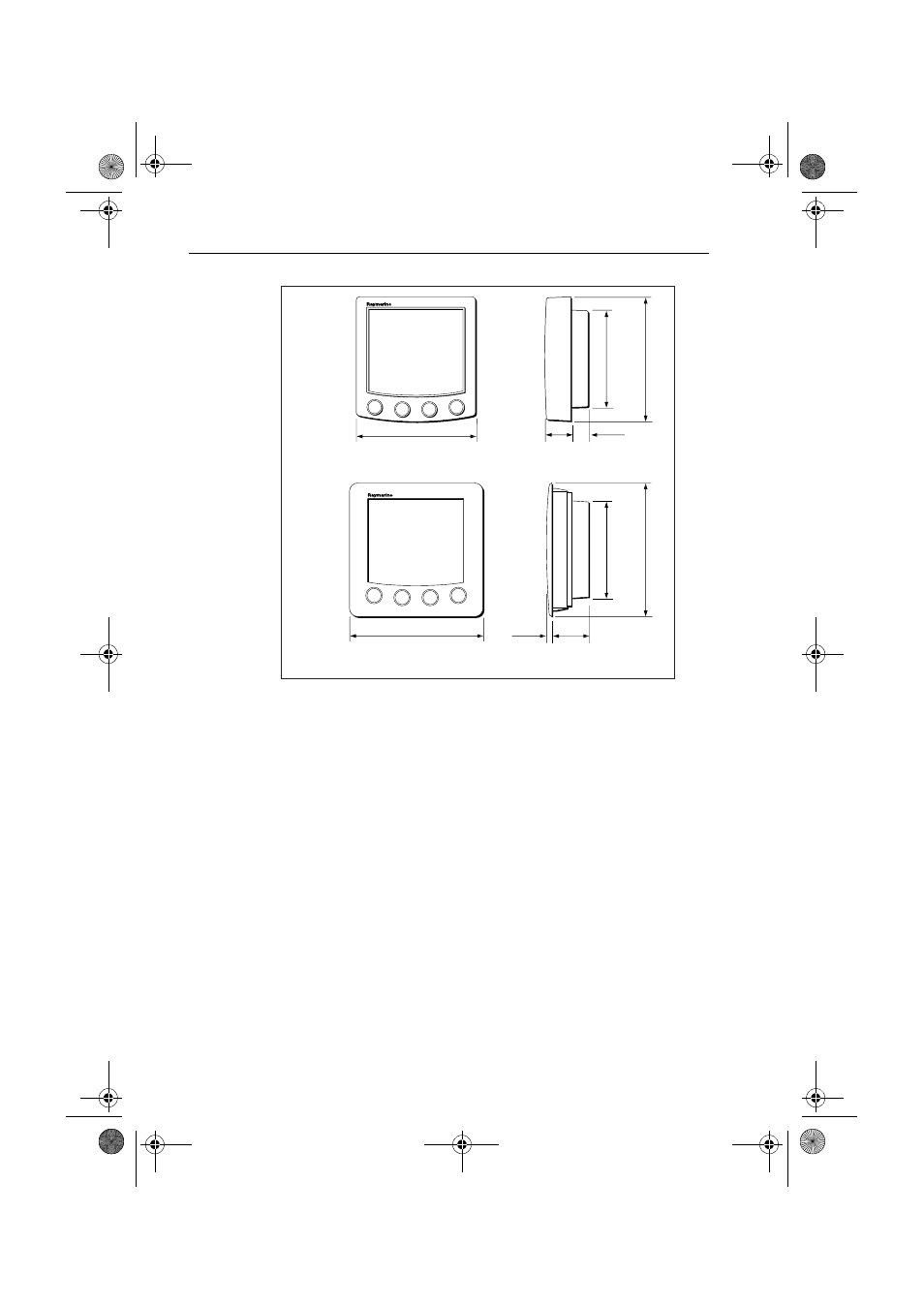

ST60 instrument dimensions
With standard
bezel
With low
profile bezel
