Laser Facsimile
- 13 -
2 - Installation

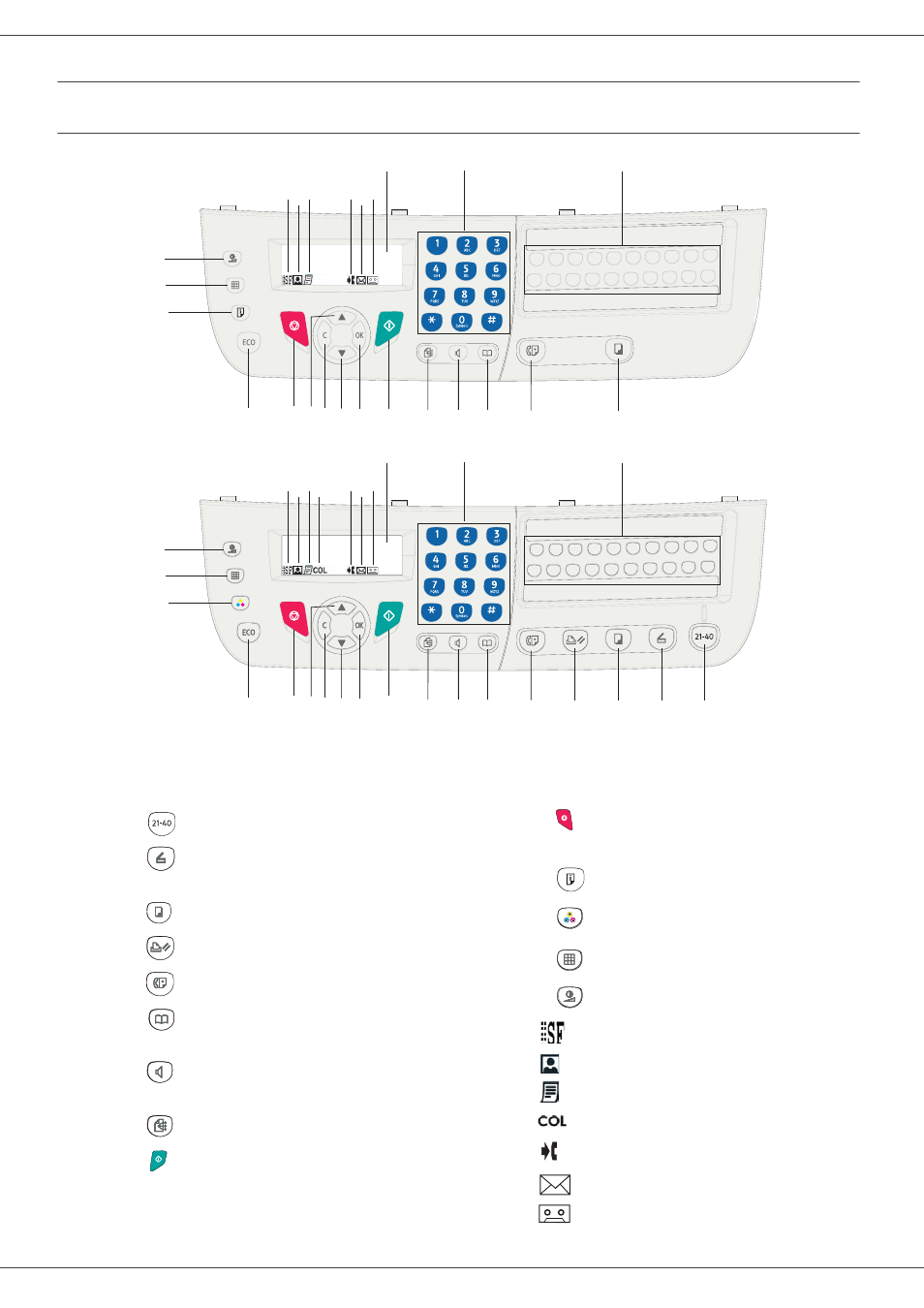

Command panel
Presentation
1
29
28
27 25
24
23
2 3
6 8 12 13 14 15 16 17 18 9 11 10
19
21
22
1
29
28
27
26
25
24
23
2 3
4 5 7 6 8 12 13 14 15 16 17 18 9 11 10
20
21
22
L ASER FACSIMILE
L
ASER FACSIMILE
(MFP
MODEL
)
1. Screen.
2. Alphanumerical keypad.
3. One-Touch keypad (buttons 1 to 20).
4. Button : access One-Touch buttons 21 to 40.
5. Button : document analysis to the PC or a
media (USB key).
6. Button : local copy.
7. Button : stops the current PC printing.
8. Button : sending a fax.
9. Button : access to directory and quick dial
numbers.
10. Button : line manual connection, listen for tone
during fax sending.
11. Button : multiple contact sending (fax).
12. Button : Validation.
13. Button OK: confirms the displayed selection.
14. Button : menu access and navigation down the
menus.
15. Button C: back to the previous menu and input
correction.
16. Button : navigation up the menus.
17. Button : stops the current operation.
18. Button ECO: sets up the activation delay.
19. Button : prints the functions list.
20. Button : colour analysis mode selection.
21. Button : analysis resolution setup.
22. Button : contrast setup.
23. Icon : resolution "Copy : Quality text / Fax : Sfine".
24. Icon : resolution "Photo".
25. Icon : resolution "Copy : Auto / Fax : Fine".
26. Icon : color mode.
27. Icon : activity on the telephone line.
28. Icon : Fax mode.
29. Icon : external answering device mode
