Operational Specifications
3.1.4 External Power Supply Connector for SH7285 (J5, J6)
Rev.1.04 2008.7.10 3-7
REJ10J1564-0104
3
3.1.4 External Power Supply Connector for SH7285 (J5, J6)
The M3A-HS85 contains a connector pin for external power supply to be supplied to the power for CPU and USB.
When the power is supplied by using this connector, remove the post heads of the external power switch jumpers
(JP2 and JP3) to be in the released state.

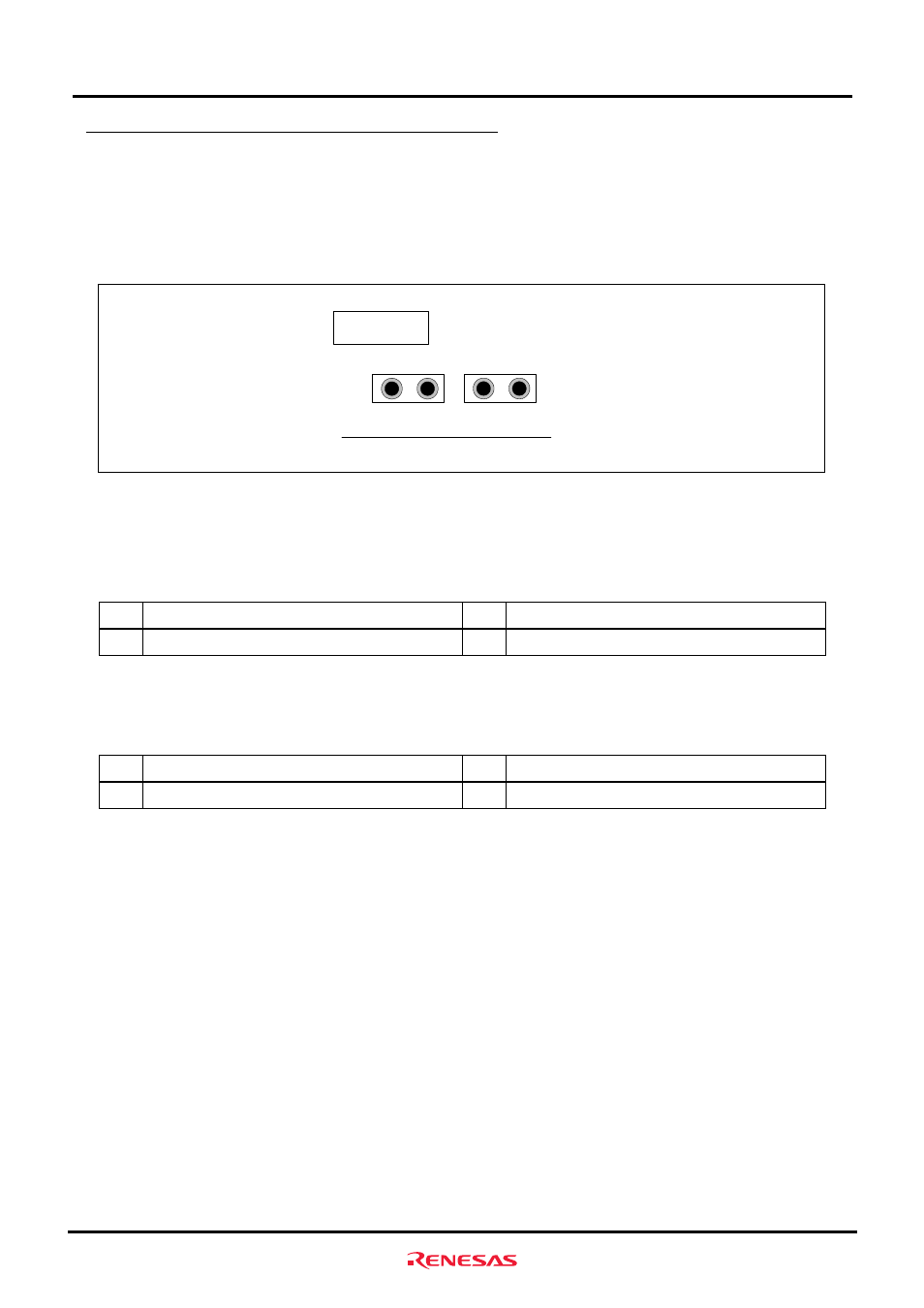

Figure 3.1.6 shows the pin assignments of power supply connector.
Board
edge
Top view of the
component side
J5
VCC-CPU
1 2
J6
1 2
DrVCC
Figure 3.1.6 Pin Assignments of Power Supply Connector (J5, J6)
Table 3.1.5 lists the pin assignment of power supply connector (J5) for SH7285.
Table 3.1.5 Pin Assignments of Power Supply Connector for SH7285 (J5)
Pin Signal Name Pin Signal Name
1 VCC-CPU 2 GND
Table 3.1.6 lists the pin assignments of power supply connector (J6) for SH7285.
Table 3.1.6 Pin Assignments of Power Supply Connector for SH7285 (J6)
Pin Signal Name Pin Signal Name
1 DrVCC 2 GND
