8

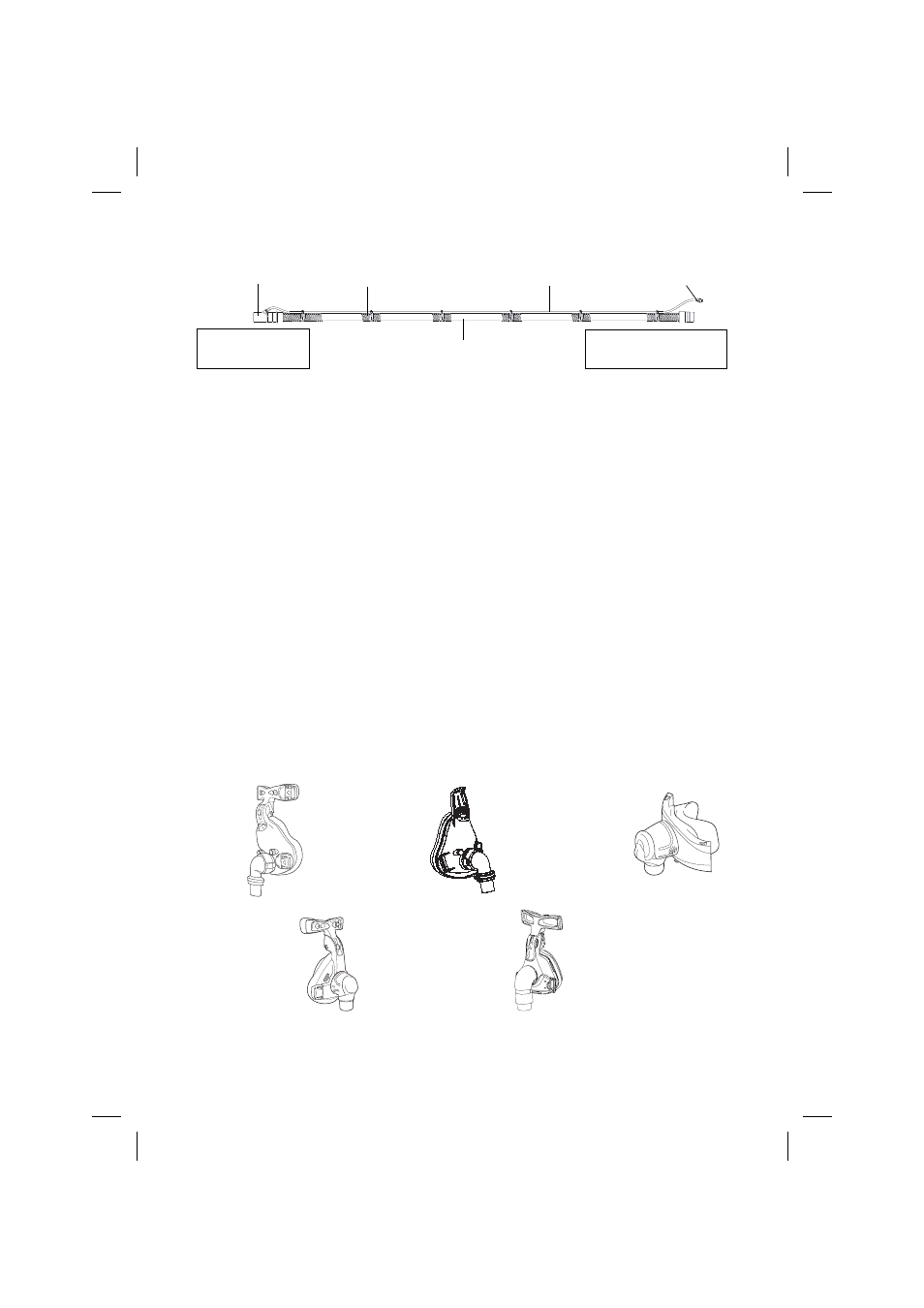

Figure 3: Air tubing fully assembled

All necessary air tubing components are packed with the

VPAP Adapt SV:

a 6’6" (2 m) length of air tubing

a pressure sensor tube (to measure pressure at the mask) with Luer
connectors

tube clips (to hold the pressure sensor tube onto the air tubing)

a proximal cuff (a special connector that attaches the pressure sensor tube
into the main air tubing so that you only need to make one attachment to the
mask).

The air tubing is supplied with the Proximal cuff connected. Attach the tube clips
evenly along the air tubing. Press the pressure sensor tube into the tube clips,
and screw the Luer connectors together at the Proximal cuff. Make sure the
pressure sensor tube is not kinked, obstructed or twisted.

Note: ResMed recommends the following tubing products for use with the
VPAP Adapt SV: replacement air hose (only) PN14968; replacement air delivery
system (hose, sensor line, clips, proximal cuff) PN26923.

Masks

The following mask systems (supplied separately) are recommended for use
with the

VPAP Adapt SV system. Please refer to the table on page 22 to set up

your mask correctly for use with the

VPAP Adapt SV.

Your clinician can explain the features of the masks available and will discuss the
mask that best suits your needs.

Proximal cuff

Pressure sensor tube

Tube clip

Connect this end
to the mask

Connect this end
to the flow generator

Luer connector

Air tubing

Mirage™ Full Face
Mask Series 2

Ultra Mirage™

Mirage Vista™

Mirage Activa™

Ultra Mirage™
Full Face Mask
