CX-70DHD Installation/Operation Manual
27
PRE
L
IMINAR
Y
SCART RGBS Source Connections: Connect the green, blue and red outputs from
your SCART source to the Component/SCART input on the DHD Controller. Connect the
sync output from your SCART source to the Video input on the DHD Controller. See
Figure 3-9.

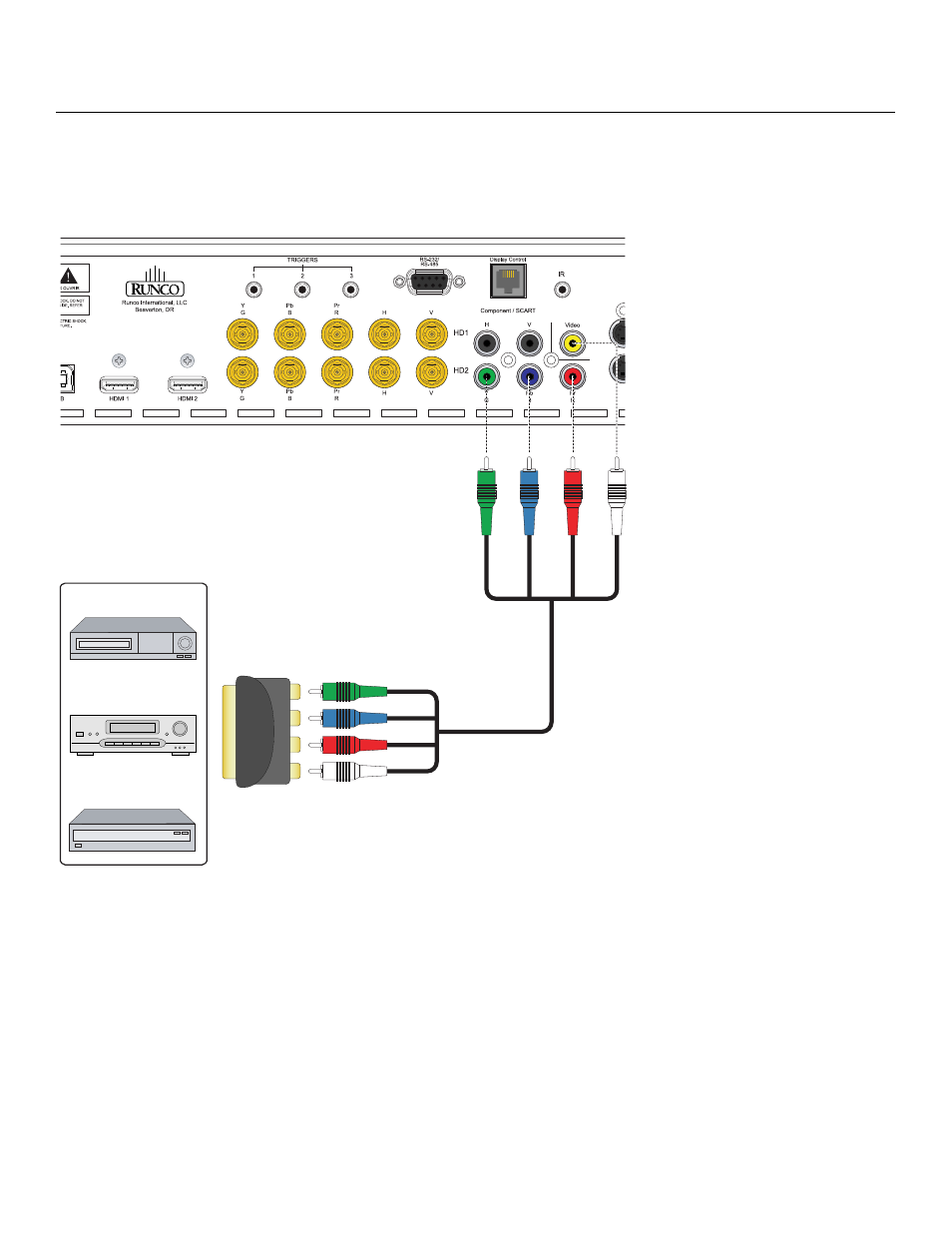

Figure 3-9. SCART RGBS Source Connections
Gaming Console
VCR
DVD/DTV STB
SCART-to-RGBS
adapter
Green
Blue
Red
Sync
Green
Blue
Red
Sync
