CX-70DHD Installation/Operation Manual
9
PRE
L
Y
2.3
DHD Controller Rear
Panel

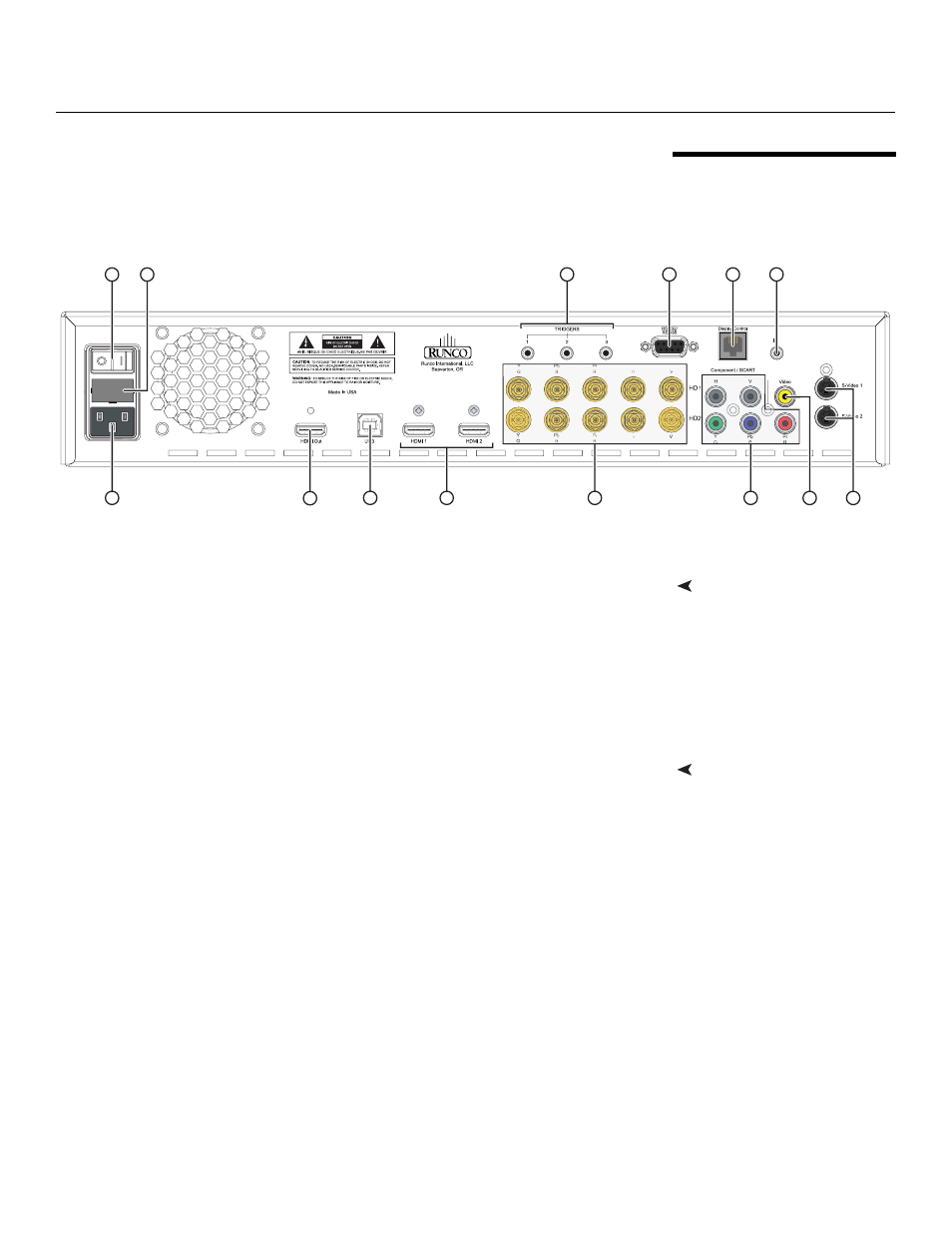

Figure 2-4 shows the rear connector panel on the DHD Controller.
Figure 2-4. DHD Controller Rear Panel
Outputs
1.
HDMI Out
Connect this to the DVI IN connector on the CX-70DHD (see Figure 2-2).
2.
Display Control
Connect this to the RS-232 input on the CX-70DHD, using the provided
communication cable.
3.
TRIGGERS
Connection for up to three (3), 12-volt trigger-controlled devices. Output current is
limited to 250 milliamperes (mA).
Inputs
4.
USB
A standard, USB Series “B” connection to a personal computer. (For future use.)
5.
HDMI 1 / HDMI 2 (Digital)
HDCP-compliant digital video inputs for connecting an HDMI or DVI source.
6.
HD1 / HD2 (5 x Analog BNCs)
Two inputs (five BNCs per input) for connecting standard-definition (SD = 480i/576i),
enhanced-definition (ED = 480p/576p) or high-definition (HD = 720p/1080i/1080p)
component video sources, or RGBHV sources such as personal computers.
7.
Component / SCART (5 x RCA connectors)
SD/HD input for connecting SDTV, EDTV or HDTV component video sources, or
RGBHV sources. Also provides RGB input for SCART RGBS sources.
8.
Video
Standard, composite video input for connecting a VCR, camcorder or other
composite video source. Also provides composite sync input for SCART RGBS
sources.
9.
S-Video 1 / S-Video 2
Two, standard S-Video inputs for connecting a DVD player, satellite receiver or Super
VHS (S-VHS) VCR.
1
5
6
4
14
2
3
10
11
7
8
9
12
13
