11
COLLAR
THREADED
NIPPLE
ASSEMBLY

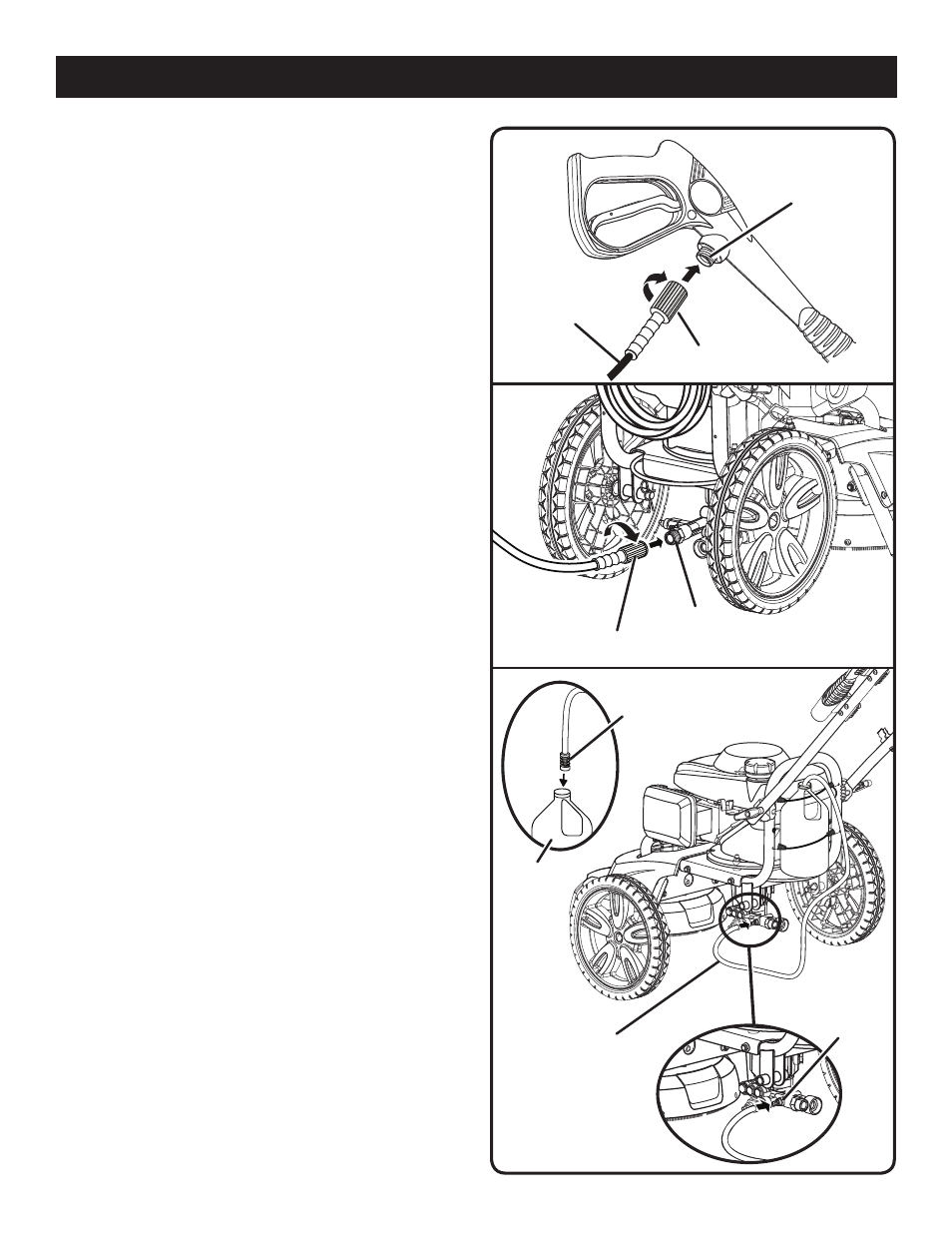

CONNECTING HIGH PRESSURE HOSE TO
TRIGGER HANDLE
See Figure 7.

Screw the collar on the high pressure hose into the
trigger handle inlet coupler by turning the hose collar
clockwise.
 Pull on the hose to be certain it is properly secured.
CONNECTING THE HIGH PRESSURE HOSE TO
THE PUMP
See Figure 8.

Align the collar on the threaded nipple on the pump.
 Insert the nozzle on the end of the high pressure hose
collar into the threaded nipple.
 Turn the collar clockwise to tighten the hose securely to
the pump.
 Pull on the hose to be certain it is properly secured.
ATTACHING INJECTION HOSE
See Figure 9.
Before detergent can be used with this machine, the injection
hose must be attached.

Open the cap of your detergent container.
 Push the injection hose filter onto the end of the injection
hose. Insert the injection hose into your cleaning solu-
tion so the injection hose filter rests at the bottom of the
detergent container.
 Push the open end of the injection hose securely over the
fitting as shown in figure 9.
Fig. 7
Fig. 8
INLET
COUPLER
HIGH PRESSURE
HOSE
COLLAR
Fig. 9
INJECTION
HOSE
FITTING
INJECTION
HOSE
INJECTION
HOSE FILTER
DETERGENT
